Product code: #ALL-004969

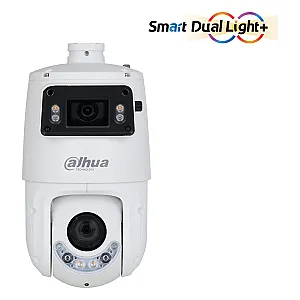

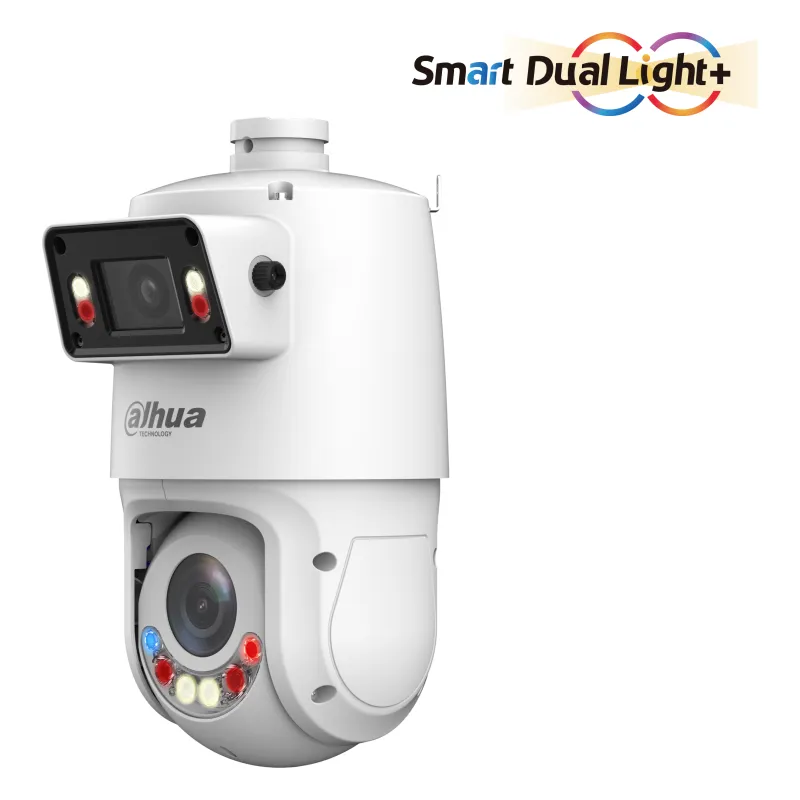

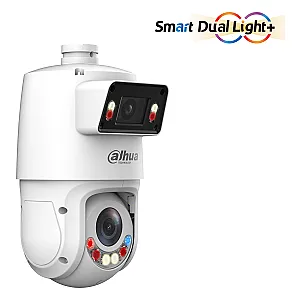

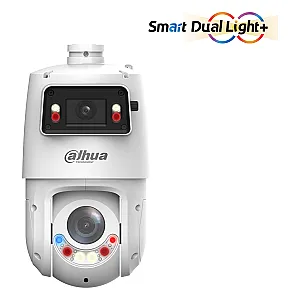

SDT4E425-4F-GB-A-PV1 4MP+4MP TiOC WizSense PTZ controllable camera, 25x optical zoom, IP66, IR up to 100 m

Dahua

SDT4E425-4F-GB-A-PV1 4MP+4MP TiOC WizSense PTZ controllable camera, 25x optical zoom, IP66, IR up to 100 m

2 181.22 ₾

VAT included

2 181.22 ₾

VAT included

Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 207.4 W

Calculate exactly

Compare with similar

Full comparison

Description

The Dahua SDT4E425-4F-GB-A-PV1 is a multi-lens PTZ camera with a panoramic view and a detail view. Each view uses a 1/2.8" CMOS sensor with 4 MP and a maximum resolution of 2560 (H) × 1440 (V). The lenses have focal lengths of 2.8 mm and 5–125 mm, and the camera offers 25× optical zoom.

The detail view pans from 0° to 360° continuously and supports 300 PTZ presets. The camera has IP66 protection and operates from -40 to +65 °C. It works with the DMSS and SmartPSS Lite applications and carries CE certification.

Key features:

  • Panoramic view: F1.0 aperture, H 101° / V 53° / D 120° field of view, tilt from 13° to 23°
  • Detail view: F1.6–F3.6 aperture, field of view from H 51.9° to 3.0°, tilt from –15° to 90°, 180° auto-flip
  • Lighting: IR, white light and dual illumination, with IR night vision of 30 m (98.4 ft), day/night mode with auto IR-cut and 120 dB WDR
  • Video: 25/30 fps with H.265+, H.265, H.264+, H.264 and MJPEG compression
  • Smart functions: line crossing and intrusion detection, with a warning light and audio warning for active deterrence; 2 alarm inputs and 1 alarm output
  • Storage and network: Micro SD card up to 512 GB, FTP/SFTP and NAS, with an RJ-45 (10/100 Base-T) interface
  • Power and audio: 12 VDC, 3 A or PoE+ (802.3at), 25 W power consumption, 6 kV surge protection, 1 LINE IN channel and 1 LINE OUT channel or a built-in speaker (mutually exclusive)

Features in action

1 demos

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 2 425.68 ₾2 553.68 ₾

Kit −128 ₾

Specifications 39

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
Panorama: 1/2.8" CMOS;
Detail: 1/2.8" CMOS
Max Resolution
Panorama: 2560 (H) × 1440 (V);
Detail: 2560 (H) × 1440 (V)
Megapixels
4 MP
Form Factor
PTZ
Characteristics
microSD

Lens

Focal Length
2.8 mm, 5–125 mm
Lens
2.8 mm, 5–125 mm
View Type
Multi-lens
Optical Zoom
25 ×
PTZ Presets
300
Pan / Tilt Range
Panorama: tilt 13° to 23°;
detail: pan 0° to 360° endless;
detail: tilt –15° to 90°;
detail: auto flip 180°
Aperture
Panorama: F1.0;
Detail: F1.6–F3.6
Field of View
Panorama: H 101° / V 53° / D 120°;
Detail: H: 51.9°–3.0°;
Detail: V: 39.7°–2.2°;
Detail: D: 63.1°–3.7°

Image & Video

Supplement light
Infrared (IR), White light, Dual light
Min. Illumination
Panorama: 0.001 lux@F1.0 (Color);
Panorama: 0.0005 lux@F1.0 (B/W);
Panorama: 0 lux (illuminator on);
Detail: 0.005 lux@F1.6 (Color);
Detail: 0.0005 lux@F1.6 (B/W);
Detail: 0 lux (illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264, MJPEG

Audio

Audio
PCM;
G.711a;
G.711Mu;
G.726;
MPEG2-Layer2;
G722.1;
G729;
G723

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
Micro SD card (512 GB);
FTP/SFTP;
NAS

Power & Protection

Power Supply
12 VDC, 3 A;
PoE+ (802.3at)
IP / IK Rating
IP66
Power Consumption
25 W
Surge Protection
6 kV

Outputs & Audio

Audio Input
1 channel (LINE IN, bare wire)
Audio Output
1 channel (LINE OUT, bare wire);
built-in speaker (mutually exclusive)

Smart & Features

Features
Line Crossing, Intrusion Detection
Active Deterrence
Warning Light, Voice Warning
Alarm Input
2 (on/off input: 0–5 VDC)
Alarm Output
1

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +65 °C (-40 … 149 °F)
Dimensions
184.4 × 304.6 × 160 mm (7.26 × 11.99 × 6.3 in)
Weight
3.41 kg (7.52 lb)
