Product code: #ALL-004970

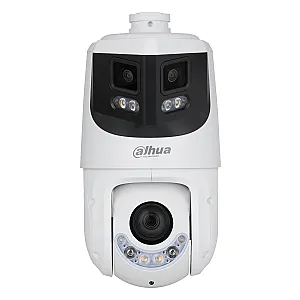

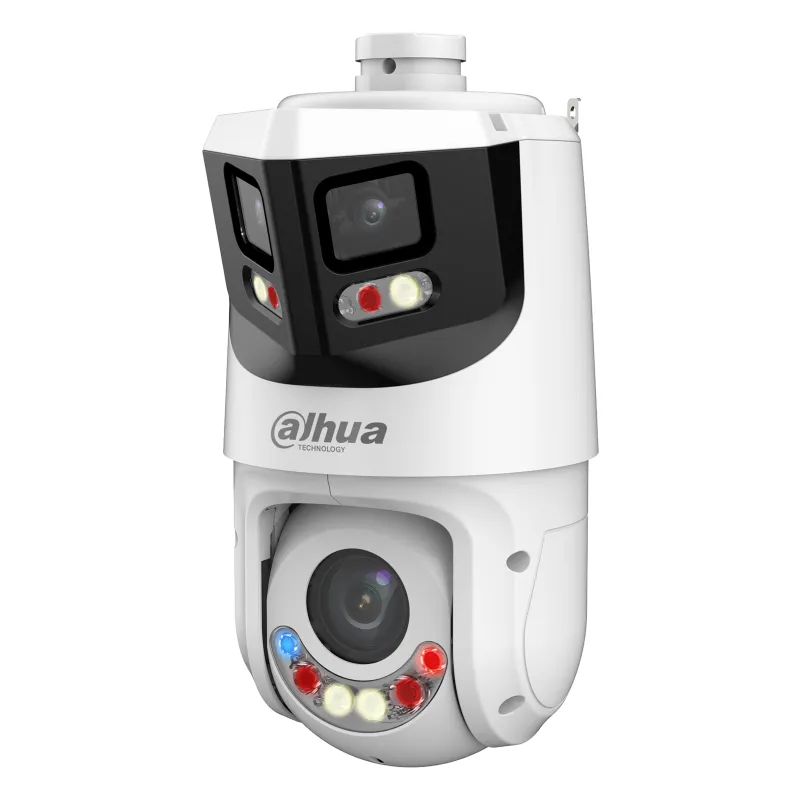

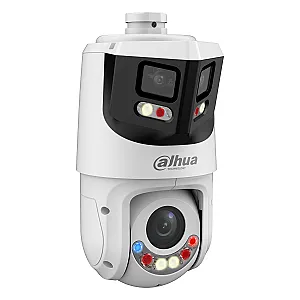

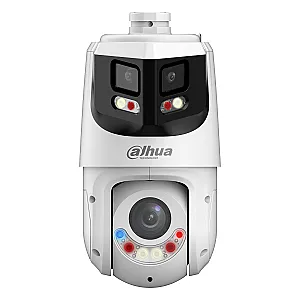

SDT4E425-8P-GB-APV1 8MP+4MP TiOC WizSense PTZ controllable camera, 25x optical zoom, IP66, dual light

Dahua

SDT4E425-8P-GB-APV1 8MP+4MP TiOC WizSense PTZ controllable camera, 25x optical zoom, IP66, dual light

2 598.79 ₾

VAT included

  • In stock
2 598.79 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 22.4 TB

8 cameras, with margin: 105.2 W

Calculate exactly

Compare with similar

Full comparison

Features in action

1 demos

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 2 822.25 ₾2 971.25 ₾

Kit −149 ₾

Specifications 39

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
Overview channel: 1/2.7" CMOS;
Detail channel: 1/2.8" CMOS
Max Resolution
Overview channel: 4096 (H) × 1860 (V);
Detail channel: 2560 (H) × 1440 (V)
Megapixels
8 MP
Form Factor
Panoramic
Characteristics
microSD

Lens

Focal Length
2.8 mm, 5–125 mm
Lens
2.8 mm, 5–125 mm
View Type
Multi-lens, Panoramic
Optical Zoom
25 ×
PTZ Presets
300
Pan / Tilt Range
Pan: 0° to 360° endless;
tilt: –15° to +90°;
auto flip 180°
Aperture
Overview channel: F1.4;
Detail channel: F1.6-F3.6
Field of View
Overview channel: H 180° / V 86°;
Detail channel: H: 51.9°–3.0°;
Detail channel: V: 39.7°–2.2°;
Detail channel: D: 63.1°–3.7°

Image & Video

Supplement light
Infrared (IR), White light, Warm light, Dual light
Min. Illumination
Overview: 0.005 lux@F1.4 (Color);
Overview: 0.0005 lux@F1.4 (B/W);
Overview: 0 lux (illuminator on);
Detail: 0.005 lux@F1.6 (Color);
Detail: 0.0005 lux@F1.6 (B/W);
Detail: 0 lux (illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
Overview channel: DWDR;
Detail channel: 120 dB
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264, MJPEG

Audio

Audio
PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

Network

Network Interface
RJ-45 (100/1,000 Base-T)
Storage
Micro SD card (512 GB);
FTP/SFTP;
NAS

Power & Protection

Power Supply
12 VDC, 3 A;PoE (802.3at)
IP / IK Rating
IP66
Power Consumption
25 W
Surge Protection
6 kV

Outputs & Audio

Audio Input
1 channel (LINE IN, bare wire)
Audio Output
1 channel;
LINE OUT (bare wire);
or built-in speaker

Smart & Features

Features
Smart Hybrid Light
Active Deterrence
Warning Light, Voice Warning
Alarm Input
2 inputs;
wet contact (max. 5 mA 3–5 VDC);
dry contact
Alarm Output
1 output;
dry contact, max. 1,000 mA 30 VDC/500 mA 50 VAC

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +65 °C (-40 … 149 °F)
Dimensions
160 × 311 × 194.2 mm (6.3 × 12.24 × 7.65 in)
Weight
3.1 kg (6.83 lb)
