Product code: #ALL-000690

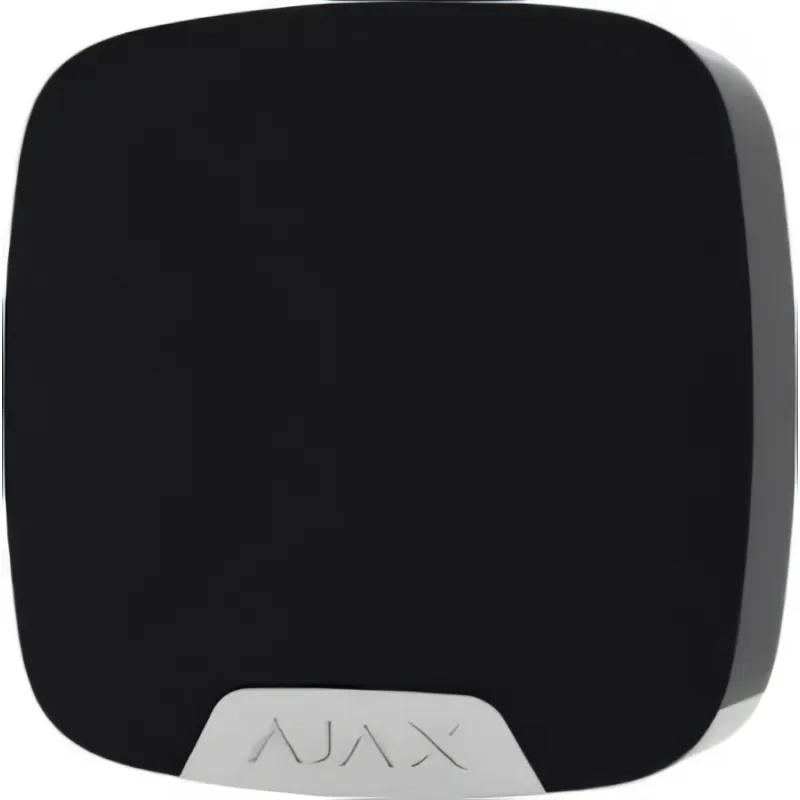

Siren Ajax HomeSiren (8EU) ASP Black

Ajax

Siren Ajax HomeSiren (8EU) ASP Black

157 ₾

VAT included

  • In stock
157 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Ajax HomeSiren (8EU) ASP Black is a battery-powered indoor siren from Ajax. It uses the Jeweller wireless protocol and has a communication range of up to 2000 m (6561.7 ft). The siren is designed for indoor use only, with a recommended installation height of 8.2 ft or higher.

The siren produces a sound level of 80 … 100 dB at a frequency of 3.4 ± 0.5 kHz, with a signal duration of 3 s … 3 min. It indicates alarms, entry and exit delays, security mode, security mode changes and after-alarm status. When the system is disarmed, it also makes a special sound to notify that the opening detectors are triggered.

Key features:

  • Jeweller wireless protocol, with block encryption featuring a dynamic key and frequency hopping to prevent radio interference and jamming
  • Sound level of 80 … 100 dB, signal duration of 3 s … 3 min, warning device type W
  • Power from 2 × CR123A batteries (pre-installed), with a battery life of up to 5 yr
  • Tamper protection, device authentication and connection loss detection after 36 s
  • Connector for an additional 3 V⎓ LED indicator
  • IP50 protection, operating temperature of -10 … +40 °C (14 … 104 °F) and operating humidity of up to 75%
  • Dimensions of 2.95″ × 2.99″ × 1.06″ and weight of 97 g (3.42 oz); available in Black and White

Specifications 42

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP50
Power Source
Battery
Current Draw
68 µA (quiescent), 1.1 A (peak), 50 mA (average)

Overview

Alarm Device Type
Siren
Wireless Protocol
Jeweller (Ajax)
Wireless Range
2000 m (6561.7 ft)
Encryption
Block encryption featuring a dynamic key

Siren & Notification

Sound Level
80 … 100 dB
Alarm Duration
3 s … 3 min

Battery

Battery
2 × CR123A
Battery Life
up to 5 yr

Physical

Operating Temperature
-10 … +40 °C (14 … 104 °F)
Weight
97 g (3.42 oz)
Tamper Alarm
Yes

Full specification

Manufacturer data, 28 parameters

Communication

Frequency bands
866.0–866.5 MHz;
868.0–868.6 MHz;
868.7–869.2 MHz;
905.0–926.5 MHz *;
915.85–926.5 MHz;
921.0–922.0 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Radio signal modulation
GFSK
Encrypted Communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency Hopping
To prevent radio interference and jamming.

Key Features

Warning device type
type W
Siren sound frequency
3.4 ± 0.5 kHz
Ability to connect an additional LED
3 V⎓
Events indication
Alarms.;
Delays when entering/leaving.;
Security mode.;
Security mode changing.;
After-alarm indication.
Chime
The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Recommendations
The siren is designed for indoor use only.;
Recommended installation height is 8.2 ft or higher.

Sabotage Protection

Protection against spoofing
device authentication
Communication loss detection
after 36 s

Power Supply

Siren's Operating Voltage Range
1.9−3.3 V⎓
Siren's Nominal Operating Voltage
3 V⎓
Siren's Quiescent Current at Nominal Voltage
68 µA
Siren's Peak Current at Nominal Voltage
1.1 A
Siren's Average Current at Nominal Voltage
50 mA
Full battery capacity
3,200 mAh
Low battery voltage
2.1 V⎓
End-of-life battery voltage
1.9 V⎓
End-of-life battery capacity
366 mAh
Manufacturer
Huiderui

Enclosure

Dimensions
2.95″ × 2.99″ × 1.06″
Operating Humidity
up to 75%
Colors
Black;
White

Complete set

HomeSiren Jeweller
HomeSiren Jeweller;
SmartBracket mounting panel;
2 × CR123A battery (pre-installed);
Connector for an LED indicator;
Installation kit;
Quick start guide

Additional information

Warranty
24 months
