Product code: #ALL-002489

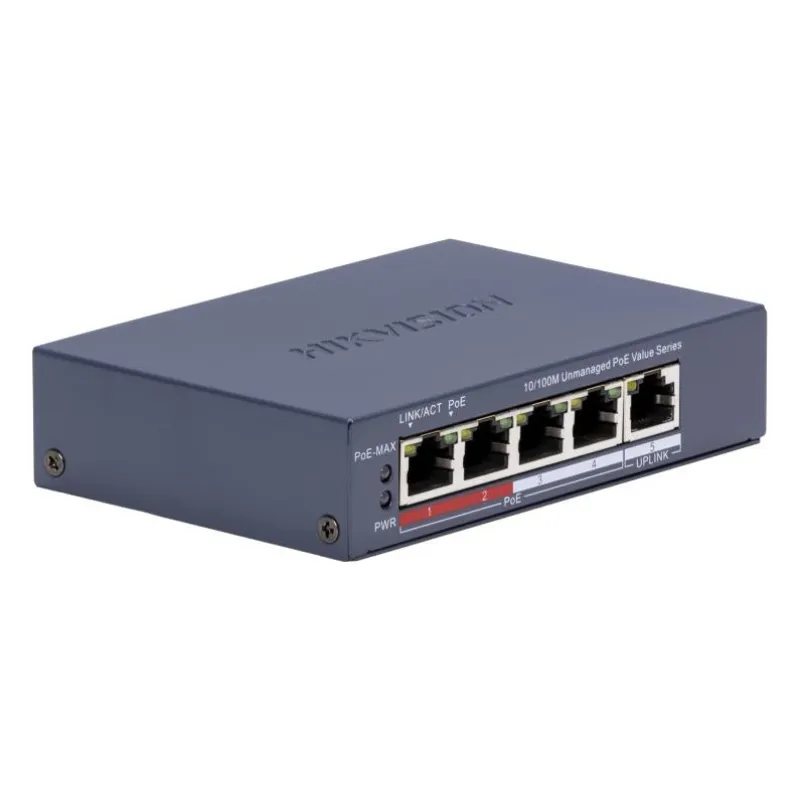

Switch Poe Hikvision, DS-3E0105P-E/M(C), 4 port, unmanaged

Hikvision

Switch Poe Hikvision, DS-3E0105P-E/M(C), 4 port, unmanaged

  • Total Ports4
  • Port Speed10/100 Mbps
  • PoE Budget45 W
123 ₾

VAT included

  • In stock
123 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

PoE budget

Powers 4 cameras at 6.5 W each

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-3E0105P-E/M(C) is an unmanaged PoE switch with 4 ports, each running at 10/100 Mbps. All 4 ports supply PoE, so the switch can power connected devices over the network cable while also carrying data.

It comes in a desktop housing and has no fan. The switch can be placed on a desk or mounted on a wall, and it measures 121.1 × 27.6 × 83.1 mm (4.77 × 1.09 × 3.27 in).

Key features:

  • 4 ports at 10/100 Mbps, all 4 with PoE
  • Supports 802.3af (PoE) and 802.3at (PoE+) standards with a 45 W PoE budget
  • Unmanaged operation
  • 744 Mpps transmission rate and a 2K MAC table
  • 6 kV surge protection and fanless design
  • Power consumption of 50 W
  • Operating temperature of 0 … +40 °C (32 … 104 °F)

Specifications 15

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Consumption
50 W
Fanless
Yes
Surge Protection
6 kV

Ports & PoE

PoE Ports
4
Total Ports
4
Port Speed
10/100 Mbps
PoE Standard
802.3af (PoE), 802.3at (PoE+)
PoE Budget
45 W

Performance

Management
Unmanaged
Forwarding Rate
744 Mpps
MAC Table
2K

Physical

Form Factor / Chassis
Desktop
Operating Temperature
0 … +40 °C (32 … 104 °F)
Mounting
Desktop / Wall
Dimensions
121.1 × 27.6 × 83.1 mm (4.77 × 1.09 × 3.27 in)
