Product code: #ALL-004102

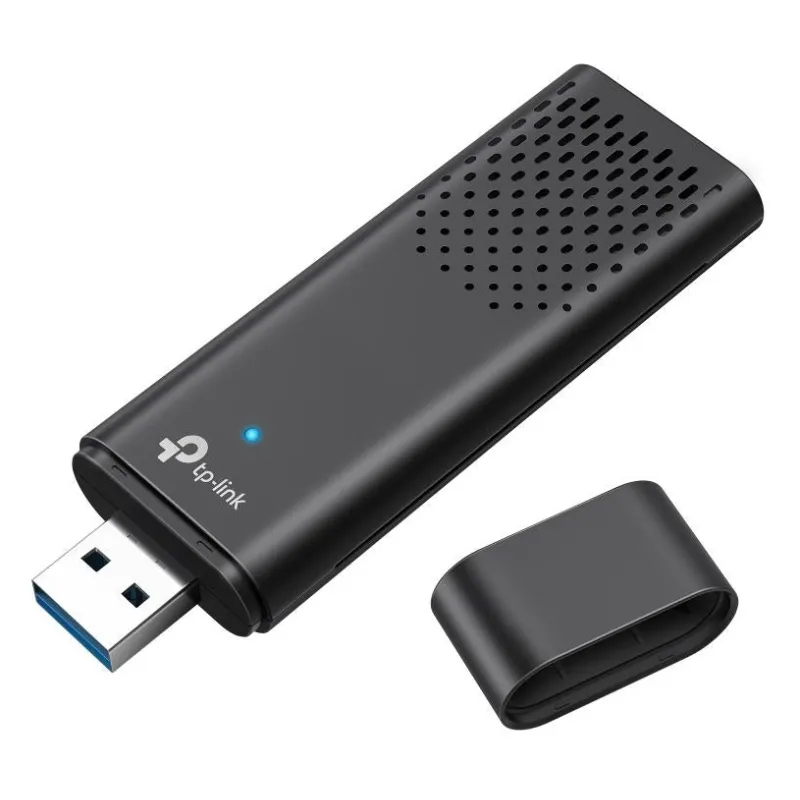

TP-Link, Archer TX20U, Wi-Fi USB Adapter, AX1800

TP-Link

TP-Link, Archer TX20U, Wi-Fi USB Adapter, AX1800

  • Wi-Fi GenerationWi-Fi 6 (802.11ax)
  • Total Wireless Rate1775 Mbps
85 ₾

VAT included

  • In stock
85 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The TP-Link Archer TX20U is a Wi-Fi USB adapter that connects a computer to wireless networks using Wi-Fi 6 (802.11ax). It is rated AX1800, with a combined wireless speed of 1775 Mbps across the 2.4 GHz and 5 GHz bands.

The adapter has 2 built-in dual-band antennas and supports the WEP, WPA, WPA2 and WPA3 wireless security standards. It works in Infrastructure mode, and a Status LED indicator is built in. The package includes the adapter and a Quick Installation Guide.

Key features:

  • Wi-Fi 6 (802.11ax), backward compatible with 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac
  • Dual-band operation on 2.4 GHz and 5 GHz, with maximum speeds of 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz
  • Combined wireless speed of 1775 Mbps
  • 2 built-in dual-band antennas
  • Wireless security: WEP, WPA, WPA2 and WPA3
  • Dimensions of 90.2 × 29.2 × 12.9 mm (3.55 × 1.15 × 0.508 in), operating temperature of 0 … +40 °C (32 … 104 °F)
  • FCC and CE certified, with support for Windows 10 and 11

Specifications 20

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Generation
Wi-Fi 6 (802.11ax)
Wi-Fi Standard
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Wi-Fi Frequency Bands
2.4 GHz, 5 GHz
Total Wireless Rate
1775 Mbps2.4 GHz: 574 Mbps;
5 GHz: 1201 Mbps
Number of Antennas
2Dual-band, built-in
Wireless Security
WEP, WPA, WPA2, WPA3
Transmit Power
CE (EIRP): 18.5 dBm (2.4 GHz), 21.5 dBm (5 GHz)

Physical

Operating Temperature
0 … +40 °C (32 … 104 °F)
Dimensions
90.2 × 29.2 × 12.9 mm (3.55 × 1.15 × 0.508 in)

Full specification

Manufacturer data, 11 parameters

Hardware Features

LED
Status
Antenna
2× Dual-Band Antennas

Wireless Features

Wireless Standards
IEEE 802.11a/b/g/n/ac/ax
Signal Rate
5 GHz:;
11ax: Up to 1201 Mbps(dynamic);
11ac: Up to 867 Mbps(dynamic);
11n: Up to 300 Mbps(dynamic);
11a: Up to 54 Mbps(dynamic);
2.4 GHz:;
11ax: Up to 574 Mbps(dynamic);
11n: Up to 400 Mbps(dynamic);
11g: Up to 54 Mbps(dynamic);
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz:;
11ax HE80 MCS0: -90 dBm;
11ax HE80 MCS11: -59 dBm;
11a 54Mbps: -77 dBm;
11ac VHT80 MCS0: -92dBm;
11ac VHT80 MCS9: -64dBm;
2.4 GHz:;
11ax HE40 MCS0: -94 dBm;
11ax HE40 MCS11: -66 dBm;
11g 54Mbps: -79 dBm;
11n HT40 MCS9: -74dBm
Wireless Modes
Infrastructure mode

Others

Certification
FCC, CE
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
Package Contents
AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter Archer TX20U;
Quick Installation Guide
System Requirements
Supported operating systems include Windows 10, 11§,
