Product code: #ALL-003681

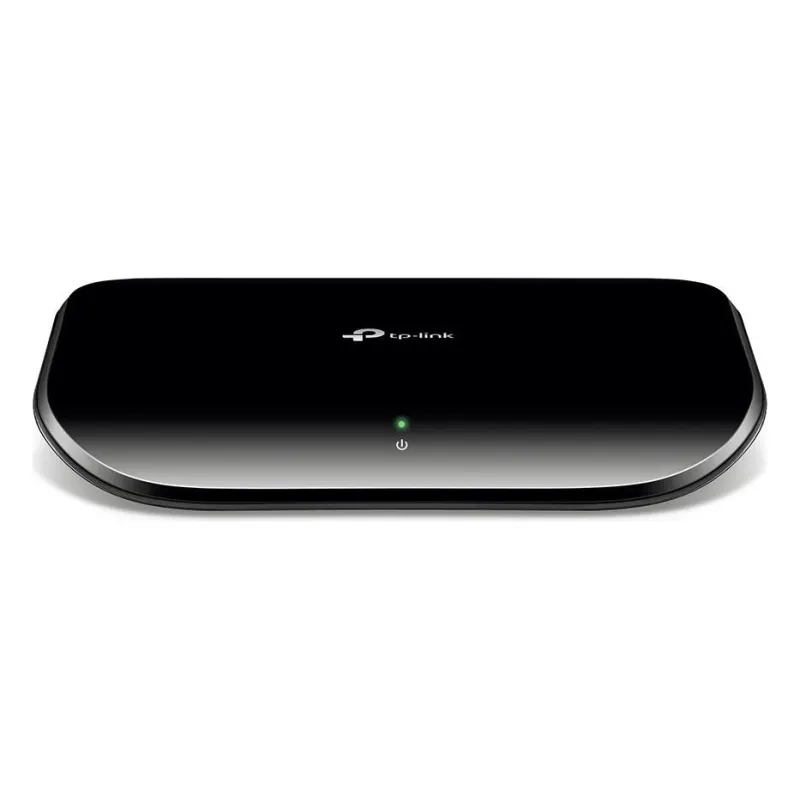

TP-Link, TL-SG1005D, 5-port Gigabit Switch, 5 10/100/1000M RJ45 ports, plastic case

TP-Link

TP-Link, TL-SG1005D, 5-port Gigabit Switch, 5 10/100/1000M RJ45 ports, plastic case

  • Total Ports5
  • Port SpeedGigabit (10/100/1000 Mbps)
44 ₾

VAT included

  • In stock
44 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The TP-Link TL-SG1005D is a 5-port Gigabit Switch with 5 10/100/1000 Mbps RJ45 ports in a plastic case. It is an unmanaged switch, so it needs no configuration, and it uses the Store and Forward transmission method.

The switch is powered by an external power adapter (Output: 5VDC / 0.6A) and has no fan. It mounts on a wall and measures 140 × 23 × 88 mm (5.51 × 0.906 × 3.46 in).

Key features:

  • 5 RJ45 ports at 10/100/1000 Mbps with AUTO Negotiation and AUTO MDI/MDIX
  • Switching capacity of 10 Gbps
  • 802.3x Flow Control and Back Pressure
  • 802.1p/DSCP QoS (for V7 and later version)
  • Fanless design with power consumption of 2.184 W and maximum heat dissipation of 12.51 Btu/hr
  • Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1p
  • Operating temperature of -5 … +40 °C (23 … 104 °F) and operating humidity of 10%~90% non-condensing; CE and FCC certified

Specifications 23

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
External Power Adapter (Output: 5VDC / 0.6A)
Power Consumption
2.184 W
Fanless
Yes

Ports & PoE

Total Ports
5
Port Speed
Gigabit (10/100/1000 Mbps)

Performance

Management
Unmanaged
Switching Capacity
10 Gbps

Features

QoS
802.1p/DSCP QoS

Compliance

Certifications
CE, FCC

Physical

Operating Temperature
-5 … +40 °C (23 … 104 °F)
Mounting
Wall
Dimensions
140 × 23 × 88 mm (5.51 × 0.906 × 3.46 in)

Full specification

Manufacturer data, 11 parameters

Hardware Features

Interface
5 10/100/1000Mbps RJ45 Ports;
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)
Max Heat Dissipation
12.51 Btu/hr

Software Features

Advanced Features
802.3x Flow Control;
Back Pressure;
802.1p/DSCP QoS (for V7 and later version)
Transmission Method
Store and Forward

Others

Storage Temperature
-40℃~60℃ (-40℉~140℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing

Specifications

Standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1p
Advanced Functions
802.3x Flow Control, 802.1p/DSCP QoS
