Product code: #ALL-003946

TP-Link VIGI C340S(4mm)

TP-Link

TP-Link VIGI C340S(4mm)

505 ₾

VAT included

  • In stock
505 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

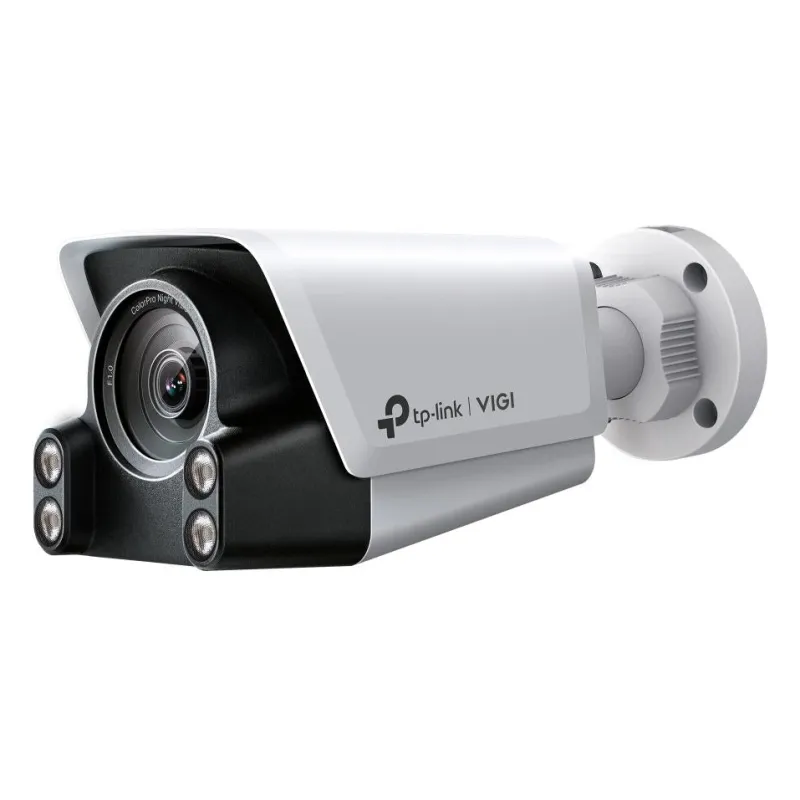

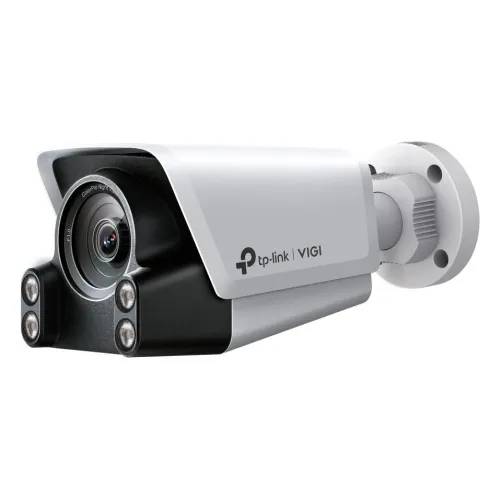

The TP-Link VIGI C340S(4mm) is a 4 MP bullet IP camera with a 1/1.8" CMOS sensor and a maximum resolution of 2688 × 1520. It has a fixed 4 mm lens with an F1.0 aperture and a 95.2° field of view, and it records at 25/30 fps using H.265 compression.

For low-light scenes, the camera has 4 white LEDs with a range of 30 m (98.43 ft) and a minimum illumination of 0.0005 Lux. It has a built-in microphone and speaker for two-way audio, supports ONVIF (Profile S/T/G), works with the VIGI app, and can store video on a MicroSD card of up to 512 GB. The camera has an IP67 rating and works in temperatures from -30 to +60 °C (-22 to 140 °F).

Key features:

  • 4 MP resolution (2688 × 1520), 1/1.8" CMOS sensor, 120 dB WDR, and BLC, 3D DNR and HLC image enhancement
  • Fixed 4 mm lens, F1.0 aperture, 95.2° field of view, with manual adjustment of Pan 0° to 360°, Tilt 0° to 90° and Rotation 0° to 360°
  • DORI distances for the 4 mm lens: Detect 70 m (231 ft), Observe 29 m (96 ft), Recognize 14 m (46 ft), Identify 7 m (23 ft)
  • 4 white LEDs with a range of 30 m (98.43 ft), with Auto, Scheduled, Always on and Always off modes
  • Two-way audio with built-in microphone and speaker, G.711 alaw at 64 Kbps, and ambient noise filtering
  • Smart detection including people, vehicles, line crossing, intrusion, region entering and exiting, loitering, object abandoned and object removal, with responses such as message push, audible warning and white light flashing
  • 1 × RJ45 10/100M Ethernet port with PoE (802.3af/at) or 12V DC power, 11.5 W power consumption, and 236 × 99 × 102 mm (9.29 × 3.9 × 4.02 in) dimensions

Features in action

2 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 608 ₾640 ₾

Kit −32 ₾

Specifications 75

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/1.8" CMOS
Max Resolution
2688 × 1520
Megapixels
4 MP
Form Factor
Bullet
Characteristics
Two-way Audio, Microphone

Lens

Zoom type
Fixed
Focal Length
4 mm
Lens
4 mm
Aperture
F1.0
Field of View
95.2°
Lens Mount
M16*P 0.5

Image & Video

Supplement light
White light
Min. Illumination
0.0005 Lux
WDR
120 dB
Frame Rate
25/30 fps
Compression
H.265

Audio

Audio
Audio support

Network

Network Interface
1 × RJ45 10/100M Ethernet, PoE
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
12V DC;
PoE: 802.3af/at
IP / IK Rating
IP67
Power Consumption
11.5 W

Smart & Features

Features
Human Detection, Line Crossing, Intrusion Detection, ONVIF

Connectivity

Compatible software
VIGI

Compliance

Certifications
CE, FCC

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
236 × 99 × 102 mm (9.29 × 3.9 × 4.02 in)

Full specification

Manufacturer data, 47 parameters

Video

Third Stream
Frame Rate: 15fps;
Resolution: 1280x720
Sub-stream
Frame Rate:;
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps;
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps;
Resolution:;
848x480, 705x576, 640x480, 640x360, 352x288, 320x240;
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps;
Sub-Stream: 64 Kbps to 512 Kbps

Camera

Product Model
VIGI C340S
Day/Night Switch
Unified/ Scheduled/ Auto

Lens

Focus
Fixed
DORI Distance
4 mm:;
Detect: 70 m (231 ft);
Observe: 29 m (96 ft);
Recognize: 14 m (46 ft);
Identify: 7 m (23 ft)
Angle Adjustment (Manual) Range
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Illuminator

White LED
Quantity: 4;
Range: 98.43ft (30m)
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off


Image Settings
Mirror;
Brightness;
Contrast;
Saturation;
Sharpness;
Exposure;
WDR;
White Balance;
HLC Adjustable by Client Software;
Rotation (90°/270°)
Image Enhancement
BLC/3D DNR/HLC
SNR
≥ 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes

Audio

Audio Communication
Two-Way Audio
Audio Input
Yes (Built-in Microphone)
Audio Output
Yes (Built-in Speaker)
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)

Network

Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
ONVIF
Yes
API
Open Network Video Interface (Profile S/T/G)
Web Browser
Google Chrome® 57 and above;
Firefox® 52 and above;
Safari® 11 and above;
Microsoft® Edge 91 and above
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Cloud
Yes

Alarm and Event Management

Smart Event
Intrusion Detection;
Line-Crossing Detection;
People Detection;
Vehicle Detection;
Region Entering Detection;
Region Exiting Detection;
Object Abandoned Detection;
Object Removal Detection;
Loitering Detection;
Abnormal Sound Detection;
Scene Change Detection
Basic Event
Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts);
Video Tampering Detection;
Exception (Illegal Login)
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Deep Learning Function

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier*.

Interfaces

Built-in Speaker
Yes
Built-in Microphone
Yes;
Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Reset Button
Yes

General

Storage Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Storage Humidity
95% or Less (Non-Condensing)
Package Content
VIGI Network Camera;
Quick Start Guide;
Waterproof Cable Attachments;
Mounting Accessories
Material
Front Cover: Mental;
Back Cover: Plastic
