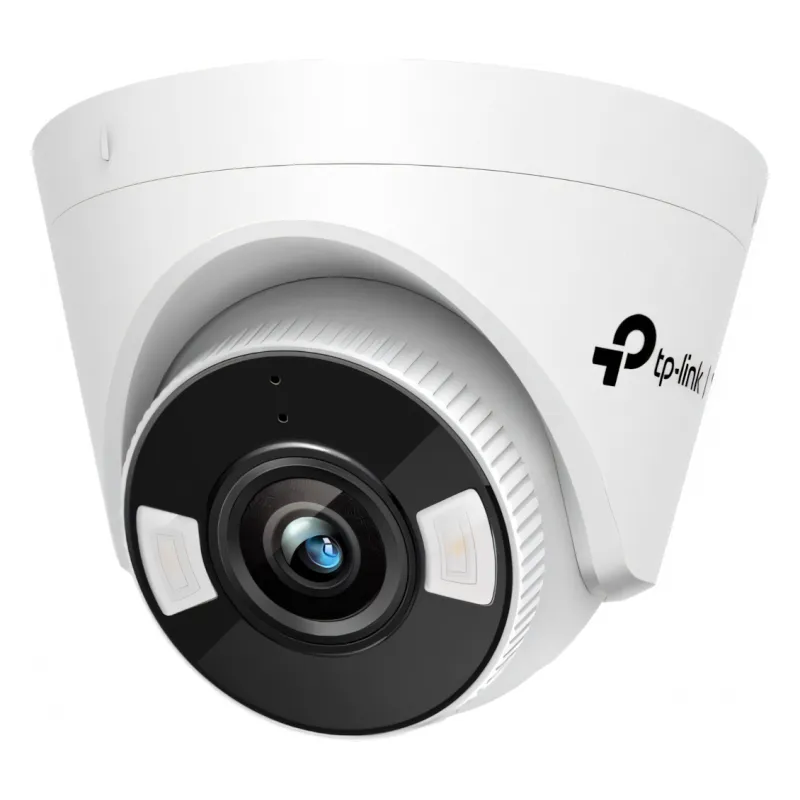

TP-LINK VIGI C450(4mm)

Camera

Image Sensor

1/2.65” Progressive Scan CMOS

Max Resolution

2880 × 1620

Megapixels

5 MP

Form Factor

Turret

Housing Material

Plastic

Characteristics

Two-way Audio, Microphone

Lens

Zoom type

Fixed

Focal Length

4 mm

Lens

4 mm

Aperture

F1.6

Field of View

88.4°

Lens Mount

M12*P 0.5

Image & Video

Supplement light

Infrared (IR), White light, Dual light

Min. Illumination

0.005 Lux

IR Range

30 m (98.4 ft)

Day / Night

Day/Night (auto IR-cut)

WDR

Yes

Frame Rate

25/30 fps

Compression

H.265

Audio

Audio

Audio support

Network

Network Interface

1 × RJ45 10/100M Ethernet, PoE

Storage

MicroSD up to 512 GB

Power & Protection

Power Supply

PoE, 12V DC

IP / IK Rating

IP67

Power Consumption

10.5 W

Smart & Features

Features

Line Crossing

Connectivity

Compatible software

VIGI

Compliance

Certifications

CE, FCC

Physical

Operating humidity

≤ 95 %

Operating Temperature

-30 … +60 °C (-22 … 140 °F)

Dimensions

Ø123 × 84 mm (Ø4.84 × 3.31 in)

Weight

240 g (8.47 oz)

Camera

Product Model

VIGI C450

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Day/Night Switch

Unified/ Scheduled/ Auto

Lens

DORI Distance

4 mm;
Detect: 80 m (262 ft);
Observe: 33 m (108 ft);
Recognize: 16 m (52 ft);
Identify: 8 m (26 ft)

Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 85°

Illuminator

Illuminator Type

• 2× IR LED;
• 2× White LED

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Video

Sub-stream

Resolution:;
848x480, 704x576, 640x480, 640x360, 352x288, 320x240;
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile△

H.265+

Main Stream Supported△

Video Bit Rate

Main Stream: 256 Kbps to 6 Mbps;
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes (Built-in Microphone)

Audio Output

Yes (Built-in Speaker)

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

Network

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP

API

Open Network Video Interface (Profile G/S/T)

Web Browser

Google Chrome® 57 and above;
Firefox® 52 and above;
Safari® 11 and above;
Microsoft® Edge 91 and above

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Cloud

Yes

ONVIF

Yes

Alarm and Event Management

Smart Event

• Intrusion Detection;
• Line-Crossing Detection;
• People Detection;
• Vehicle Detection;
• Region Entering Detection;
• Region Exiting Detection;
• Object Abandoned Detection;
• Object Removal Detection;
• Loitering Detection;
• Abnormal Sound Detection;
• Scene Change Detection;
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)

Deep Learning Function

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Interface

Built-in Speaker

Yes

Built-in Microphone

Yes;
Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Reset Button

Yes

General

Storage Temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Storage Humidity

95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera;
Quick Start Guide;
Mounting Accessories

Gross Weight

0.4 Kg
