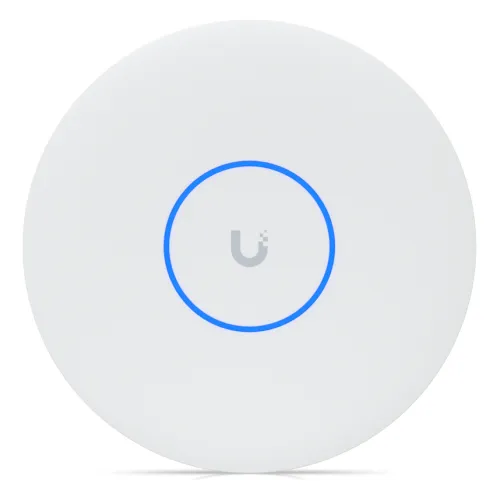

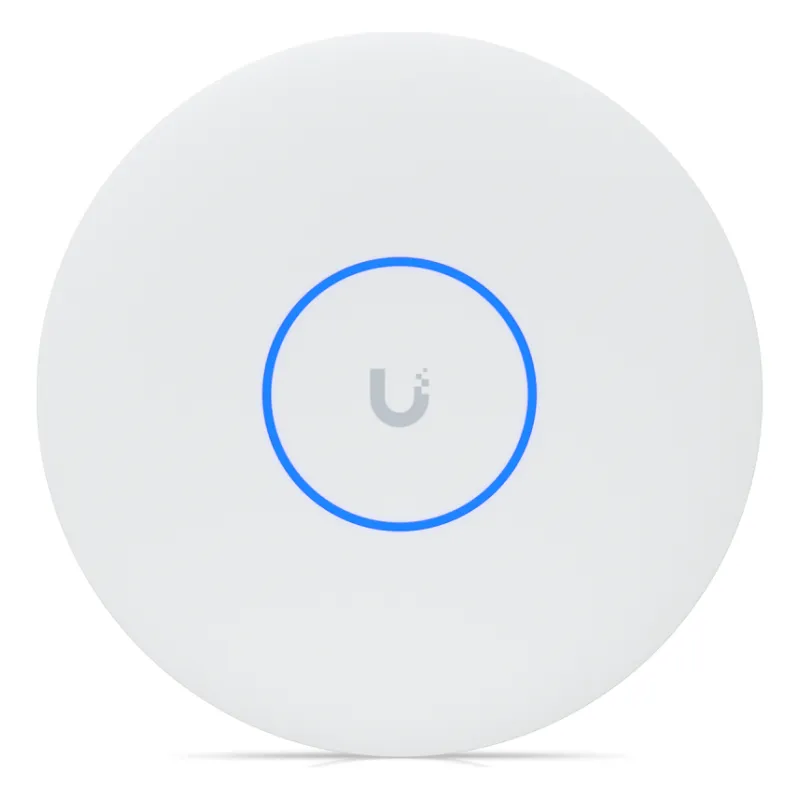

UniFi U7 Pro XG

The UniFi U7 Pro XG from Ubiquiti (model U7-Pro-XG) is a Wi-Fi 7 (802.11be) access point. It operates on the 2.4 GHz, 5 GHz and 6 GHz bands and reaches a total wireless speed of 10 788 Mbps.

It connects to the network through 1 10 GbE RJ45 uplink port and is powered over PoE+ (802.3at), with a power consumption of 22 W. The unit measures Ø206 × 32.5 mm (Ø8.11 × 1.28 in) and mounts on a ceiling or a wall, with the Lite Mount included.

Key features:

• Wi-Fi 7 (802.11be) with support for 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac and 802.11ax
• Tri-band operation on 2.4 GHz, 5 GHz and 6 GHz, with maximum speeds of 688 Mbps, 4.3 Gbps and 5.8 Gbps respectively
• Antenna gain of 4 dBi on 2.4 GHz, 5 dBi on 5 GHz and 6 dBi on 6 GHz
• Transmit power of 23 dBm on 2.4 GHz, 26 dBm on 5 GHz and 24 dBm on 6 GHz
• 1 10 GbE RJ45 uplink port with PoE+ (802.3at) input and 22 W power consumption
• Ceiling or wall mounting, with the Lite Mount included
• Operating temperature from -30 to +40 °C (-22 to 104 °F)
