KSTAR
KSTARUninterruptible power supply (UPS) - 20KVA/18KW UPS 3:3 requires external connection batteries 16,18,20
7 888.84 ₾
In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Back
Product code: #ALL-002705
KSTAR

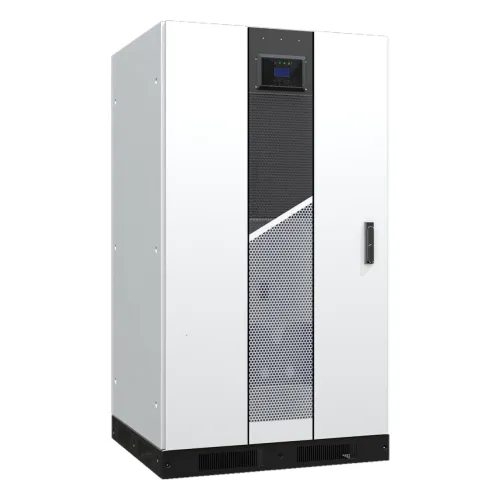

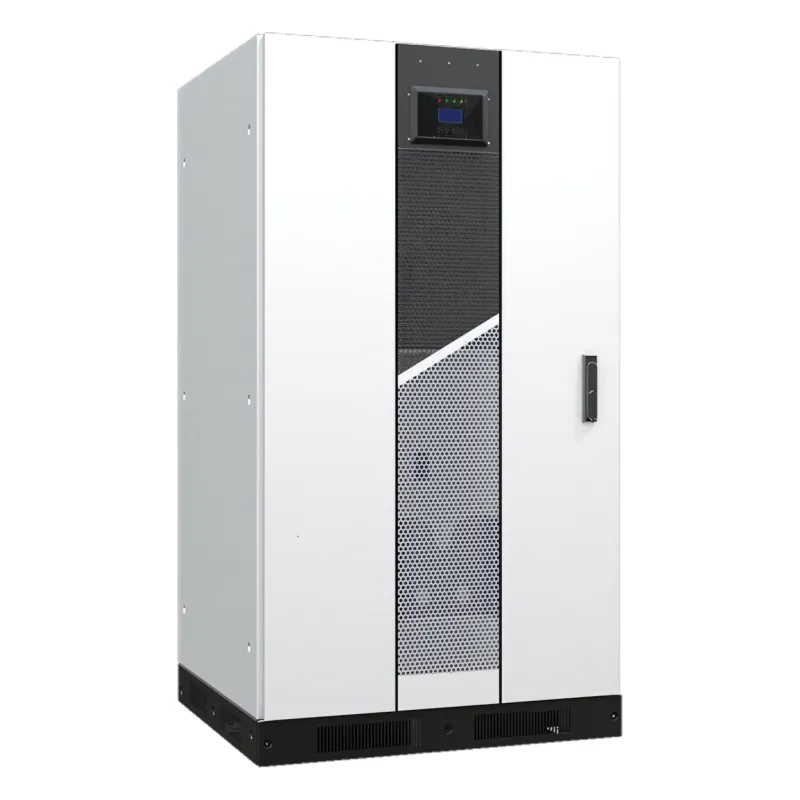

Uninterruptible power supply (UPS) - 20KVA/18KW industrial / transformer-based UPS 3:3
- VA Rating20 000 VA
- Watt Rating18 000 W
13 692.36 ₾
VAT included
- In stock
13 692.36 ₾
VAT included
- In stock
Quantity
1
1 in stock
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Uninterruptible power supply (UPS) - 20KVA/18KW UPS 3:3 requires external connection batteries 16,18,20Output Frequency Line mode: ±1%/
±2%/ 7 888.84 ₾5 803.52 ₾ cheaper±4%/ ±5%/ ±10% of the rated frequency (Optional); Bat. mode: 50/60 Hz (±0.1%) - Uninterruptible power supply (UPS) - 20KVA/18KW On-line Tower 3:3 phase, with 40x9AH batteryInput Voltage Range 208~478Vac11 010.21 ₾2 682.15 ₾ cheaper
Specification | This product | ||
|---|---|---|---|
13 692.36 ₾ | 7 888.84 ₾ Best price | 11 010.21 ₾ | |
| Watt RatingWatt Rating | 18 000 W | - | 18 000 W |
| Output FrequencyOutput Frequency | 50/60Hz (±0.05%) | Line mode: ±1%/ Bat. mode: 50/60 Hz (±0.1%) | - |
| Input Voltage RangeInput Voltage Range | 380/400/415 VAC (-25%/+ | - | 208~478Vac |
| Input FrequencyInput Frequency | 50/60Hz (±5%) | 40~70Hz | - |
Description
The KSTAR 20KVA/18KW is an industrial on-line UPS with a transformer and a 3:3 configuration, meaning a 3-phase input and a 3-phase output. It has a capacity of 20 000 VA and 18 000 W, and it uses Online (double conversion) topology to supply the connected load.
The output is a pure sine wave at 380 V AC, 400 V AC or 415 V AC, with a transfer time of 0 ms. The unit is managed through an LCD with an LED mimic panel and offers RS232 and RS485 serial ports. It measures 350 × 1050 × 650 mm (13.78 × 41.34 × 25.59 in) and weighs 165 kg (363.76 lb).
Key features:
- Capacity of 20 000 VA and 18 000 W
- Online (double conversion) topology with pure sine wave output
- Output voltage of 380 V AC, 400 V AC or 415 V AC at 50/60Hz (±0.05%)
- Transfer time of 0 ms
- Input voltage range of 380/400/415 VAC (-25%/
+20%), 3Ph+PE, with input frequency of 50/60Hz (±5%) - LCD with LED mimic display, RS232 and RS485 ports, and an optional SNMP card
- Short circuit, overload, overvoltage and overtemperature protection
Specifications 18
Open the spec sheet PDF(opens in a new tab)Capacity
- VA Rating
- 20 000 VA
- Watt Rating
- 18 000 W
- Topology
- Online Double-Conversion
Output
- Waveform
- Pure Sine Wave
- Output Voltage
- 380 V AC, 400 V AC, 415 V AC
- Output Frequency
- 50/60Hz (±0.05%)
- Transfer Time
- 0 ms
Input
- Input Voltage Range
- 380/400/415 VAC (-25%/+
20%), 3Ph+ PE - Input Frequency
- 50/60Hz (±5%)
Management
- Display
- LCD + LED mimic
- Serial Port
- RS232, RS485
- SNMP Ready
- SNMP card (Optional)
Protection Features
- Short-circuit Protection
- Yes
- Overload Protection
- Yes
- Over-voltage Protection
- Yes
- Over-temperature Protection
- Yes
Physical
- Dimensions
- 350 × 1050 × 650 mm (13.78 × 41.34 × 25.59 in)
- Weight
- 165 kg (363.76 lb)
