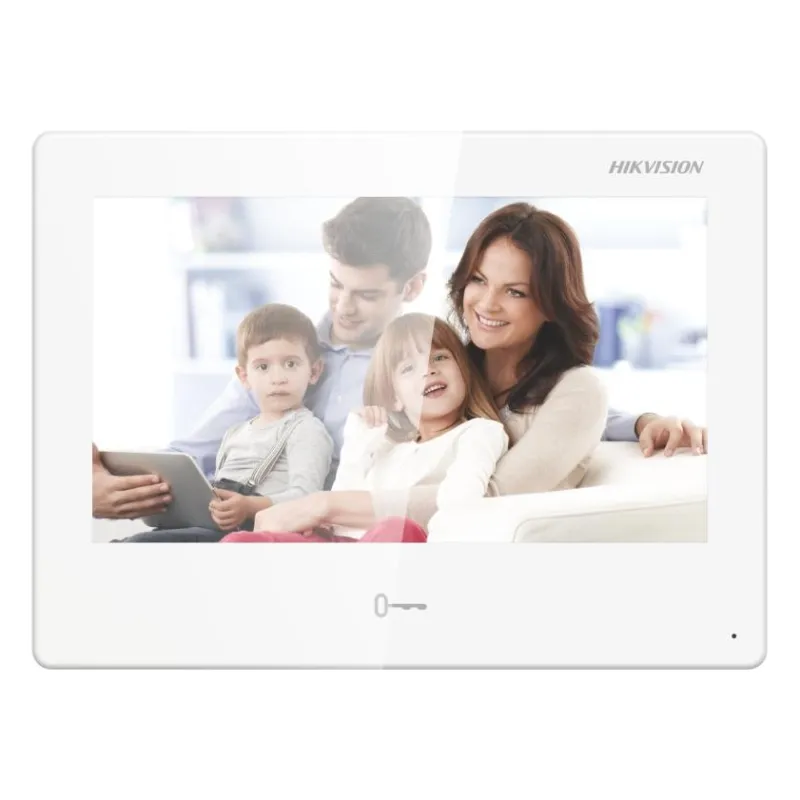

Video intercom monitor, Hikvision, DS-KH9310-WTE1(B), 7-inch android indoor station

Audio

Speaker

1 built-in loudspeaker

Microphone

1 built-in omnidirectional microphone

Echo Cancellation

Yes

Power & Protection

Power Supply

12 VDC, 1 A, IEEE802.3af standard PoE

Power Consumption

12 W

PoE

IEEE802.3af standard PoE

Storage

SD Card

TF card, up to 128 GB

Connectivity

Compatible software

Hik-Connect, iVMS-4200

Wi-Fi

Yes

Intercom Technology

IP (SIP)

WiFi

2.4 GHz, IEEE802.11b/g/n

Protocol

TCP/IP, SIP, RTSP

Door Control & I/O

Alarm Input

8

Relay Outputs

1

Display

Screen Size

7"

Display Resolution

1024 × 600

Touch Type

Capacitive touch screen

Physical

Operating Temperature

-10 … +50 °C (14 … 122 °F)

OS

Android 10.1

System Parameters

ROM

8 GB

RAM

2 GB

Processor

Embeded high performance processor

Display Parameters

Operation Method

Capacitive touch screen

Type

Colorful TFT

Resolution

1024 × 600

Video Parameters

Video Compression Standard

H.265 ；H.264

Audio Parameters

Audio Input

1 built-in omnidirectional microphone

Audio Compression Standard

G722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A

Audio Output

1 built-in loudspeaker

Audio Compression Bitrate

64 Kbps

Audio Quality

Noise suppression and echo cancellation

Volume Adjustment

Adjustable

Capacity

Message Capacity

200 captured pictures, 200 alarm records

Notice Capacity

200

Linked Indoor Extensions Capacity

16

Linked Network Camera Capacity

16

Linked Doorphone Capacity

17

Network Parameters

Network Protocol

TCP/IP, SIP, RTSP

Device Interfaces

Network Interface

1 RJ-45 10/100 Mbps self-adaptive

RS-485

1 RS-485 (Half duplex)

TF Card

Support TF card, up to 128 G

Alarm Output

1

Lock Control

1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General

Installation

Surface mounting

Weight

Net weight: 419.3 g;
Gross weight: 694 g

Working Humidity

10% to 90% (no-condensing)

Dimensions (W × H × D)

187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01")

Application Environment

Indoor

Language

English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German;
Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian;
Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian;
Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian;
Vietnamese, Traditional Chinese
