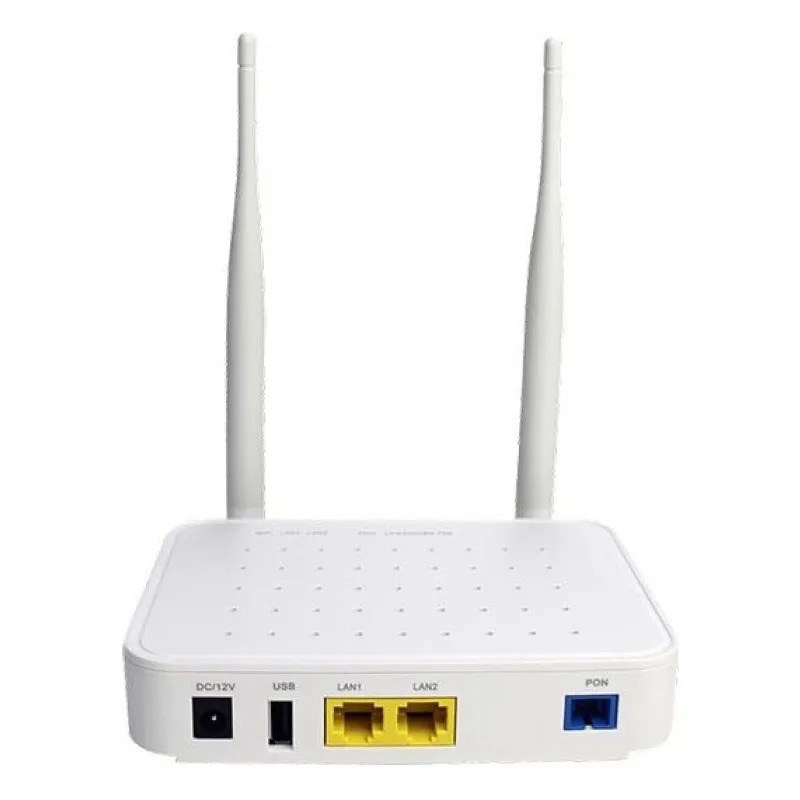

xPON ONU, 1 GPON/EPON port, 1GE, 1 FE, WiFi n - BDCOM

The BDCOM GP1704-2F-E is an xPON ONU with 1 GPON/EPON port, designed to connect a subscriber's network to a PON line. It has 1 GE port and 1 FE port for wired devices, and it includes WiFi n with a rate of 300Mbps.

The unit connects to the optical line through an SC/UPC connector and follows the ITU-T G.984/G.988 standards. It runs from a 12V/1A power supply with an input of 100-240V AC and draws 10 W.

Key features:

• PON interface: SC/UPC connector, ITU-T G.984/G.988 standard, 1.25Gbps upstream rate
• Ports: 2 RJ45 ports, electrical 1 GE + 1 FE TX
• WiFi (ONU): 300Mbps
• Optical TX power: 0.5~5dBm
• Optical RX sensitivity: <-28dBm
• Power: 12V/1A supply, 100-240V AC input, 10 W power consumption
• Operating temperature 0 … +45 °C (32 … 113 °F), dimensions 140 × 30 × 105 mm (5.51 × 1.18 × 4.13 in)
