Product code: #ALL-003038

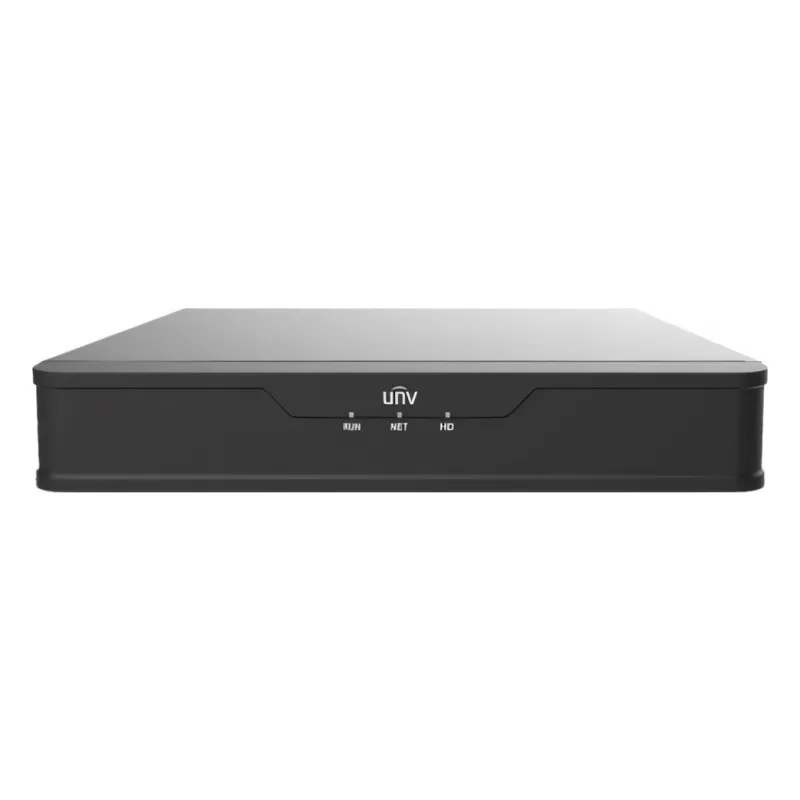

16 ch IP video recorder NVR - 1 hard drive - Easy series - NVR301-S3

Uniview · NVR301-16S3

16 ch IP video recorder NVR - 1 hard drive - Easy series - NVR301-S3

255.15 ₾

VAT included

  • In stock
255.15 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 16 cameras, 30 days: 22.4 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NVR301-16S3 is a 16-channel network video recorder from the Easy series. It records from 16 IP channels and has 1 HDD slot that accepts a disk of up to 10 TB. It has no PoE ports, so cameras connect over the network.

The recorder decodes Ultra 265, H.265 and H.264 video and supports recording resolutions from 1 MP (720p) up to 8 MP (4K). Live view is available through HDMI and VGA outputs, and remote access is possible with Uniview EZView and EZStation.

Key features:

  • 16 channels and 16 IP channels, with playback of up to 16 channels and 16-ch local synchronous playback
  • 1 HDD slot, up to 10 TB per disk
  • Recording resolutions of 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP and 8 MP (4K)
  • HDMI output up to 4K (3840x2160)/30Hz and VGA output up to 1920x1080/60Hz
  • Smart functions on 4 channels in total: Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area) and Ultra Motion Detection (UMD)
  • Network interface RJ45 10/100M, with 64 Mbps incoming and 48 Mbps outgoing throughput, and up to 128 remote users
  • 12 VDC, 2 A power input, 5 W power consumption, 2 × USB 2.0 ports on the rear panel

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 2 600.52 ₾2 737.52 ₾

Kit −137 ₾

Specifications 46

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100M
Incoming Bandwidth
64 Mbps
Outgoing Bandwidth
48 Mbps

Power & Protection

Power Input
12 VDC, 2 A
Power Consumption
5 W

Recording

Decoding capability
1 × 4K@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 6 × 1080P@30, 8 × 720P@30, 16 × D1@25
Recorder Type
NVR
Channels
16
IP Channels
16
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K)
Signal Support
IP
Playback
Up to 16 channels

Storage

HDD Bays
1
Max. Capacity per Disk
up to 10 TB

Outputs & Audio

Video Output
HDMI + VGA

Smart & Features

Alarm Input
No
Alarm Output
No

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
Uniview EZView / EZStation
RS-485
No
USB Port
Rear: 2 × USB 2.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
260 × 240 × 46 mm (10.24 × 9.45 × 1.81 in)
Weight
980 g (34.57 oz)

Full specification

Manufacturer data, 19 parameters

Decoding

Decoding Format
Ultra 265, H.265, H.264
Audio Compression
G.711A, G.711U

Network

Remote Users
128
Protocols
TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP
Browser (Plugin)
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/Audio Output

HDMI Output
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
3.5mm Audio Output
1-ch
Live View Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16

Snapshot

FTP/Schedule/Event Snapshot
1-ch snapshot, up to D1 resolution

Recording

Local Synchronous Playback
16-ch

Smart

VCA Detection by IPC
Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD)
VCA Search
Behavior Search
Smart by IPC
Total 4-ch(Face Detection, SIP, UMD)
Capacity of Snapshot Records
2 millions records for face snapshot

Alarm

General Alarm
Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert Alarm
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal

GUI Language

GUI Language
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
