Product code: #ALL-002982

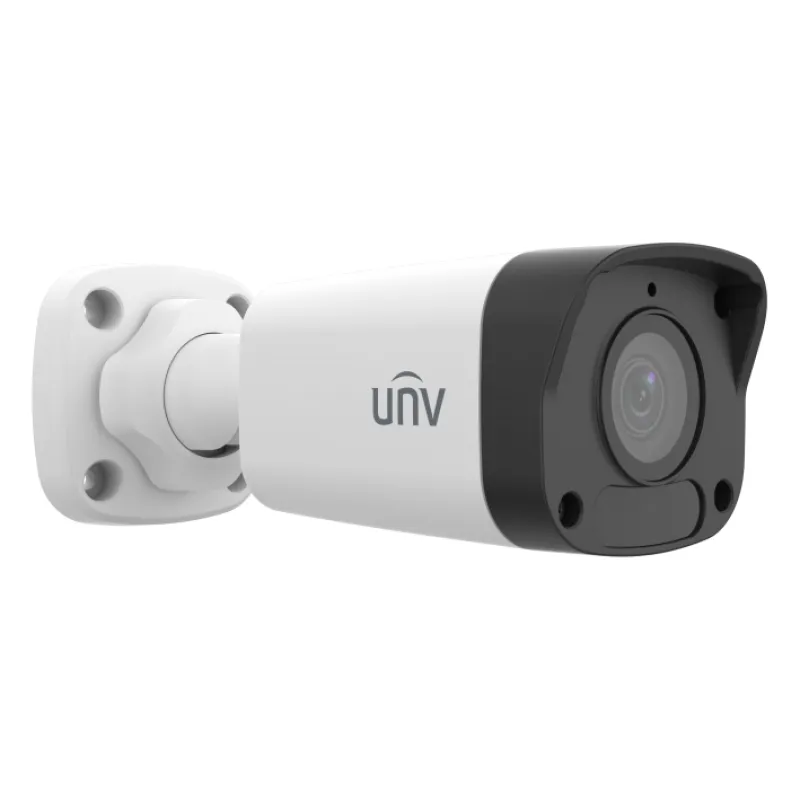

IP camera - 2MP, 4mm, Bullet, HBD 2.0, Mic, Uniview

Uniview · IPC2122LB-AF40-A2

IP camera - 2MP, 4mm, Bullet, HBD 2.0, Mic, Uniview

131.22 ₾

VAT included

  • In stock
131.22 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 5.6 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview IPC2122LB-AF40-A2 is a 2 MP bullet IP camera with a 1/3" image sensor and a maximum resolution of 1920 × 1080 at 30 fps. It has a fixed 4 mm lens with an F2.0 aperture and a 77.1° field of view, and it comes in a plastic housing with a built-in microphone.

For low-light scenes, the camera uses 850 nm infrared lighting with a night vision range of 30 m (98.4 ft) and a minimum illumination of 0.01 Lux. It is rated IP67, works from -30 to +60 °C (-22 to 140 °F), and can be powered by DC 12 V or PoE (IEEE 802.3af). It connects over 1 × RJ45 10 M/100 M Base-TX Ethernet and supports ONVIF (Profile S, Profile T), as well as the Uniview EZView and EZStation apps.

Key features:

  • 2 MP resolution (1920 × 1080) at 30 fps, with Ultra 265, H.265 and H.264 compression and dual streams
  • Day/night mode with auto IR-cut filter, 850 nm IR illumination with Auto/Manual control, and 30 m (98.4 ft) night vision range
  • WDR, HLC, BLC, 2D/3D DNR and Digital Defog image controls
  • Human Body Detection 2.0, Motion Detection and Audio Detection
  • Built-in microphone with G.711U and G.711A audio compression
  • Adjustable angle: Pan 0° to 360°, Tilt 0° to 90°, Rotate 0° to 360°
  • IP67 protection and 4 kV surge protection, with power consumption of 3.9 W; dimensions 62.5 × 62.7 × 157.5 mm (2.46 × 2.47 × 6.2 in) and weight 190 g (6.7 oz)

Features in action

1 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 169.61 ₾178.61 ₾

Kit −9 ₾

Specifications 71

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/3"
Max Resolution
1920 × 1080
Megapixels
2 MP
Form Factor
Bullet
Housing Material
Plastic
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
4 mm
Lens
4 mm
Aperture
F2.0
Field of View
77.1°

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.01 Lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
Yes
Frame Rate
30 fps
Compression
Ultra 265, H.265, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet

Power & Protection

Power Supply
DC 12 V, PoE (IEEE 802.3af)
IP / IK Rating
IP67
Power Consumption
3.9 W
Surge Protection
4 kV

Smart & Features

Features
Human Detection

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
62.5 × 62.7 × 157.5 mm (2.46 × 2.47 × 6.2 in)
Weight
190 g (6.7 oz)

Full specification

Manufacturer data, 39 parameters

Camera

Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N
>52 dB

Lens

Iris Type
Fixed

DORI

DORI Distance (Lens)
4.0 mm
DORI Distance (Detect)
66.7m (218.7ft)
DORI Distance (Observe)
26.7m (87.5ft)
DORI Distance (Recognize)
13.3m (43.7ft)
DORI Distance (Identify)
6.7m (21.9ft)

Illuminator

Wavelength
850 nm
IR On/Off Control
Auto/Manual

Video

H.264 Code Profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps to 6144 Kbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Dual Streams


White Balance
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area White Balance
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip Vertical, Flip Horizontal, 180°
HLC
Support
BLC
Support
Defog
Digital Defog

Events

Basic Detection
Human Body Detection 2.0, Motion Detection, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

Audio Compression
G.711U，G.711A
Audio Bit Rate
64 Kbps
Suppression
Support
Sampling Rate
8 kHz

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Compatible Integration
ONVIF (Profile S, Profile T) ,;
API, SDK
User/Host
Up to 32 users, 2 user levels: administrator and common user
Security
Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Web Browser
Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

General

Power Interface
Ø5.5 mm coaxial power plug
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language
1 Language: English
