Product code: #ALL-003069

16-channel IP video recorder NVR - 1 hard drive, Prime series

Uniview · NVR501-16B

16-channel IP video recorder NVR - 1 hard drive, Prime series

430.11 ₾

VAT included

  • In stock
430.11 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 16 cameras, 30 days: 22.4 TB

Calculate exactly

Compare with similar

Full comparison

Description

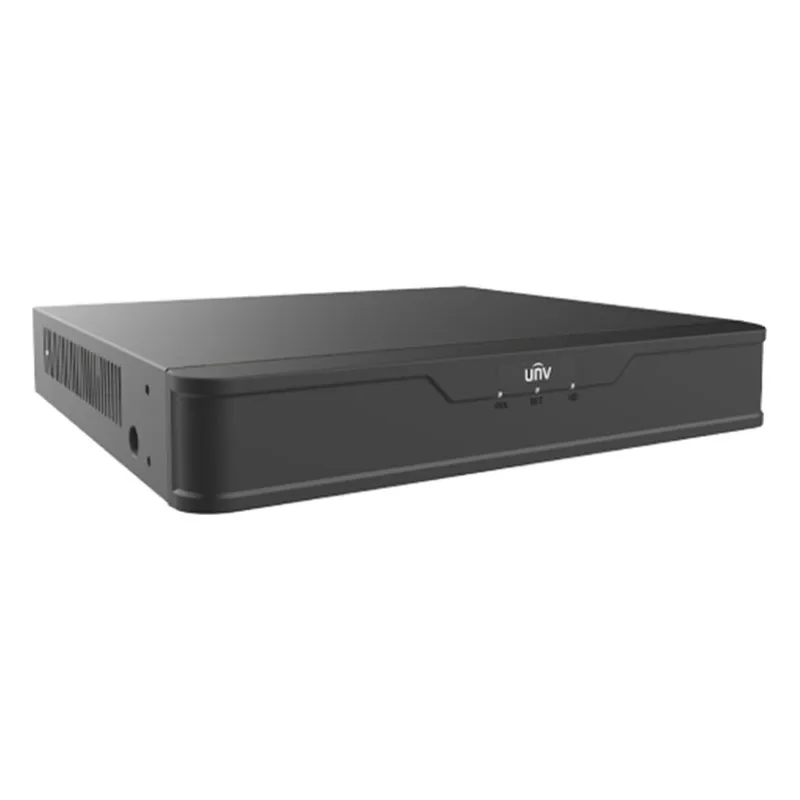

The Uniview NVR501-16B is a 16-channel IP network video recorder from the Prime series, with 1 hard drive slot. It records and plays back video from IP cameras and decodes Ultra 265, H.265 and H.264. Recording resolutions range from 1 MP (720p) to 16 MP.

The recorder shows video on a monitor through HDMI or VGA and supports up to 128 users. It works with the Uniview EZView and EZStation programs. It has 0 PoE ports, no alarm input or output, and no RS-485.

Key features:

  • 16 IP channels, with playback of up to 16 channels and 16-channel local synchronous playback
  • Recording resolutions of 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP and 16 MP
  • 1 HDD slot, supporting up to 24 TB per drive
  • HDMI output up to 4K (3840x2160)/30Hz and VGA output up to 1920x1080/60Hz
  • 1 × RJ-45 10/100 Mbps network port, with 80 Mbps incoming and 64 Mbps outgoing bandwidth
  • Smart functions on camera for 8 channels in total (Face Detection, SIP, UMD), plus VCA search including Human Body Search, People Counting Report and Heat Map
  • 1 × RCA audio input, 1 channel RCA audio output, 1 × USB 2.0 and 1 × USB 3.0 on the rear; 12 VDC, 2 A power input, 6 W power consumption, 260 × 222 × 47 mm, 980 g

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 3 accessories

Kit · 3 147.43 ₾3 313.43 ₾

Kit −166 ₾

Specifications 49

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
1 × RJ-45, 10/100 Mbps
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
64 Mbps

Power & Protection

Power Input
12 VDC, 2 A
Power Consumption
6 W

Recording

Decoding capability
Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30;
H.264: 2 × 16MP (4800 × 2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30, 14 × 1080P@30, 16 × 720P@30
Recorder Type
NVR
Channels
16
IP Channels
16
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP, 16 MP
Signal Support
IP
Playback
Up to 16 channels

Storage

HDD Bays
1
Max. Capacity per Disk
up to 24 TB

Outputs & Audio

Video Output
HDMI + VGA
Audio Input
1 × RCA
Audio Output
1 channel RCA

Smart & Features

Alarm Input
No
Alarm Output
No

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
Uniview EZView / EZStation
RS-485
No
USB Port
Rear: 1 × USB 2.0, 1 × USB 3.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
260 × 222 × 47 mm (10.24 × 8.74 × 1.85 in)
Weight
980 g (34.57 oz)

Full specification

Manufacturer data, 20 parameters

Decoding

Decoding Format
Ultra 265, H.265, H.264
Audio Compression
G.711A, G.711U

Network

Remote Users
128
Protocols
TCP/IP;
P2P;
UPnP;
NTP;
DHCP;
PPPoE;
HTTP;
HTTPS;
DNS;
DDNS;
SNMP;
SMTP;
RTSP;
IPv6
Browser (Plugin)
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/Audio Input

RCA Audio Input
1-ch

Video/Audio Output

HDMI Output
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output
1-ch
Live View Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16

Two-way Audio

Two-way Audio
1-ch, RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot
4-ch snapshot, up to D1 resolution

Recording

Local Synchronous Playback
16-ch

Smart

VCA Detection by IPC
Face Detection;
SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);
Ultra Motion Detection(UMD);
People Counting(People Flow Counting, Crowd Density Monitoring)
VCA Search
Motor Vehicle Search;
Non-Motor Vehicle Search;
Human Body Search;
General Search;
People Counting Report;
Heat Map
Smart by IPC
Total 8-ch(Face Detection, SIP, UMD)

Alarm

General Alarm
Defocus Detection;
Scene Change Detection;
Object Left Behind;
Object Removed;
Auto Tracking;
Motion Detection;
Tampering;
Human Body Detection;
Video Loss;
Alarm Input;
Audio Detection
Alert Alarm
IP Conflict;
Network Disconnected;
Disk Offline;
Disk Abnormal;
Illegal Access;
Hard Disk Space Low;
Hard Disk Full;
Recording/Snapshot Abnormal

GUI Language

GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
