Product code: #ALL-003145

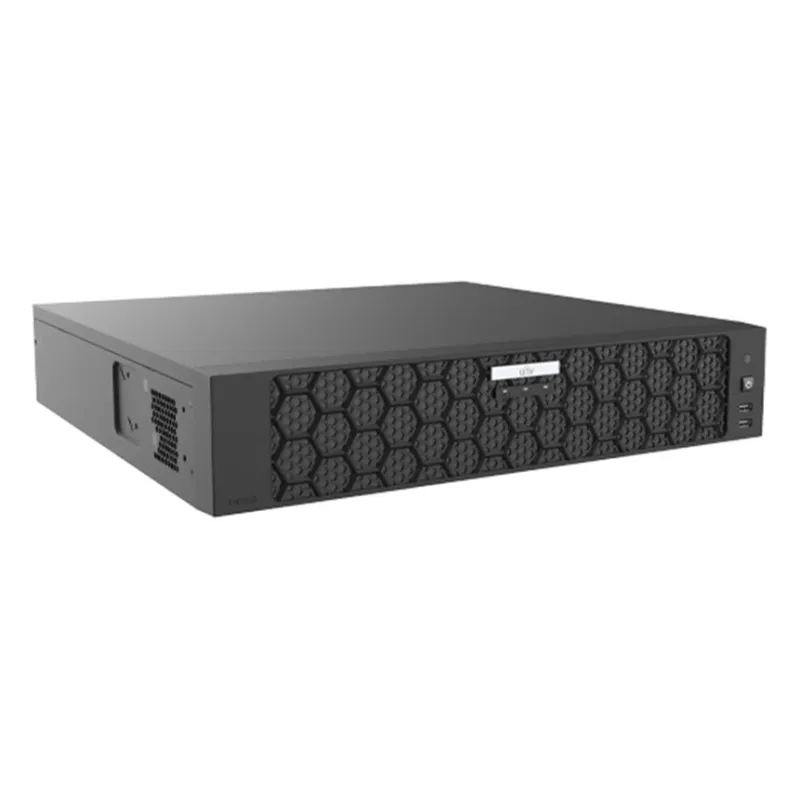

32-channel IP video recorder NVR - 8 hard drives - Prime series

Uniview · NVR508-32B

32-channel IP video recorder NVR - 8 hard drives - Prime series

2 114.10 ₾

VAT included

  • In stock
2 114.10 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 32 cameras, 30 days: 44.8 TB · 3 × 16 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NVR508-32B is a 32-channel IP network video recorder from the Prime series. It records from IP cameras on 32 IP channels and stores footage on up to 8 hard disks, with RAID 1 and RAID 5 supported.

The recorder has no PoE ports, so cameras connect over the network through 2 RJ-45 ports at 10/100/1000 Mbps. It outputs video through HDMI and VGA, and it works with the Uniview EZView and EZStation applications for remote access and management.

Key features:

  • 32 IP channels, with recording resolutions from 1 MP (720p) up to 16 MP and playback of up to 16 channels
  • 8 HDD slots, up to 24 TB per disk and 192 TB in total, with RAID 1 and RAID 5
  • Decoding in Ultra 265, H.265 and H.264, including 4 × 4K@30 with H.265
  • Incoming stream of 320 Mbps and outgoing stream of 160 Mbps, with 128 remote users
  • HDMI output up to 4K (3840x2160) at 30Hz and VGA output up to 1920x1080 at 60Hz
  • 16 alarm inputs and 4 alarm outputs, plus 1-channel RCA audio input and output for two-way audio
  • Smart functions including Face Detection, Vehicle Detection and People Counting, with Motor Vehicle, Human Body and Heat Map search

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 3 accessories

Kit · 7 308.52 ₾7 693.52 ₾

Kit −385 ₾

Specifications 54

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
2 × RJ-45, 10/100/1000 Mbps
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
160 Mbps

Power & Protection

Power Input
100–240 VAC
Power Consumption
25 W

Recording

Decoding capability
H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30, 32 × 960P@25;
H.264: 2 × 16MP(4800*2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30, 14 × 1080P@30, 28 × 960P@25, 30 × 720P@30, 32 × D1
Recorder Type
NVR
Channels
32
IP Channels
32
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP, 16 MP
Signal Support
IP
Playback
Up to 16 channels

Storage

HDD Bays
8
Max. Capacity per Disk
24 TB per bay · 192 TB total
RAID
RAID 1, 5

Outputs & Audio

Video Output
HDMI + VGA
Audio Input
1 × RCA
Audio Output
1 channel RCA

Smart & Features

Alarm Input
16 channels
Alarm Output
4 channels

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
Uniview EZView / EZStation
RS-485
Yes
USB Port
Front: 2 × USB 2.0;
rear: 1 × USB 3.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
442 × 426 × 89 mm (17.4 × 16.77 × 3.5 in)
Weight
5.5 kg (12.13 lb)

Full specification

Manufacturer data, 24 parameters

Decoding

Decoding Format
Ultra 265, H.265, H.264
Audio Compression
G.711A, G.711U

Network

Remote Users
128
Protocols
TCP/IP;
P2P;
UPnP;
NTP;
DHCP;
PPPoE;
HTTP;
HTTPS;
DNS;
DDNS;
SNMP;
SMTP;
RTSP;
802.1x;
IPV6
Browser (Plugin)
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/Audio Input

RCA Audio Input
1-ch

Video/Audio Output

HDMI Output
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output
1-ch
Live View Display
1/4/6/8/9/16/25/36
Corridor Mode Screen
3/4/5/7/9/10/12/16/32

Two-way Audio

Two-way Audio
1-ch, RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot
4-ch snapshot, up to D1 resolution

Recording

Local Synchronous Playback
16-ch

Smart

VCA Detection by IPC
Face Detection;
Vehicle Detection;
SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);
Ultra Motion Detection(UMD);
Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);
People Counting(People Flow Counting, Crowd Density Monitoring);
Video Metadata;
Traffic Monitoring
VCA Search
Motor Vehicle Search;
Non-Motor Vehicle Search;
Human Body Search;
General Search;
People Counting Report;
Heat Map
Smart by IPC
All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Alarm

General Alarm
Defocus Detection;
Scene Change Detection;
Object Left Behind;
Object Removed;
Auto Tracking;
Motion Detection;
Tampering;
Human Body Detection;
Video Loss;
Alarm Input;
Audio Detection
Alert Alarm
IP Conflict;
Network Disconnected;
Disk Offline;
Disk Abnormal;
Illegal Access;
Hard Disk Space Low;
Hard Disk Full;
Recording/Snapshot Abnormal

GUI Language

GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

Disk Group
Support
Redundant Storage
Support
Disk Array Type
RAID 1, 5

External Interface

Power Switch
Support
