Product code: #ALL-003117

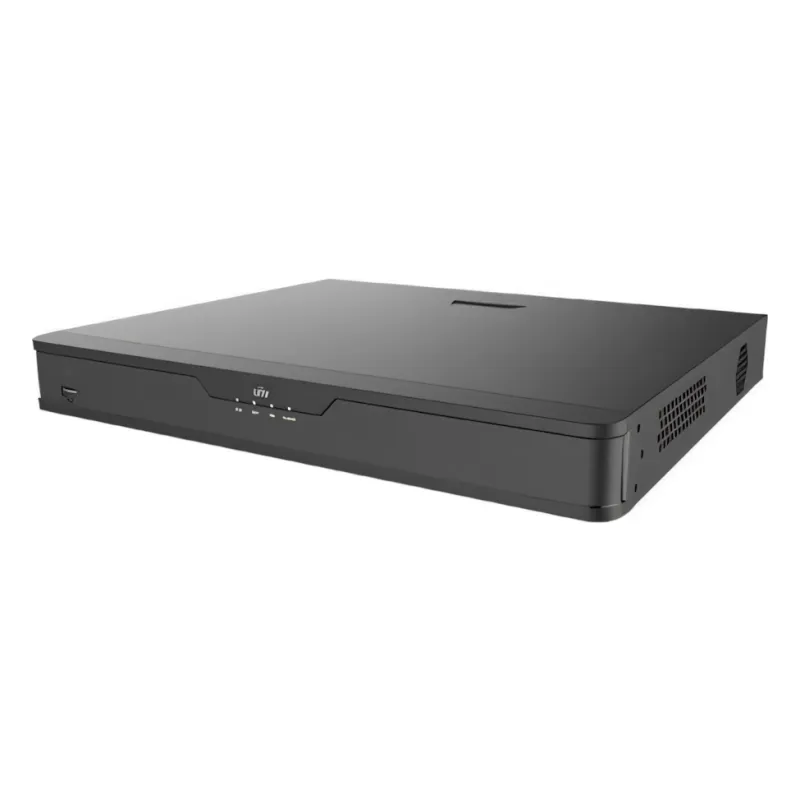

8-channel IP video recorder NVR - 2 hard drives, 8 PoE ports, smart features - Easy series

Uniview · NVR302-08E2-P8

8-channel IP video recorder NVR - 2 hard drives, 8 PoE ports, smart features - Easy series

852.93 ₾

VAT included

  • In stock
852.93 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 8 cameras, 30 days: 11.2 TB · 2 × 6 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NVR302-08E2-P8 is an 8-channel IP network video recorder from the Easy series. It records from 8 IP channels, supports H.265 compression, and has 2 HDD slots with up to 10 TB per disk, 20 TB in total.

The recorder has 8 PoE ports supporting IEEE 802.3af/at, so compatible cameras can be connected and powered through the unit. It works with the Uniview EZView and EZStation programs and supports up to 128 remote users. Video output is available through HDMI and VGA, with HDMI supporting up to 4K (3840x2160)/30Hz.

Key features:

  • 8 channels with 8 PoE ports, up to 30W for a single port and up to 130W in total
  • 2 HDD slots, up to 10 TB each and 20 TB in total, with disk group support
  • Recording resolutions from CIF up to 12MP, with H.265 compression
  • Decoding of Ultra 265, H.265 and H.264, including 1 x 12MP@30, 2 x 4K@30 and 8 x 1080P@30
  • Smart functions including Intrusion Detection, Cross Line Detection, People Flow Counting and Crowd Density Monitoring, plus Behavior Search and Vehicle Search
  • Alarm support for Motion, Tampering, Human Body Detection, Video Loss and Audio Detection, with 8-ch alarm input and 2-ch alarm output
  • RJ45 10/100/1000M network interface with 320 Mbps incoming and 160 Mbps outgoing bandwidth

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 2 830.10 ₾2 980.10 ₾

Kit −150 ₾

Specifications 47

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100/1000M
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
160 Mbps

Recording

Recorder Type
NVR
Channels
8
IP Channels
8
Signal Support
IP
Recorder Compression
H.265

Storage

HDD Bays
2
Max. Capacity per Disk
10 TB per bay · 20 TB total

Ports & PoE

PoE Ports
8

Connectivity

Compatible software
Uniview EZView / EZStation

Full specification

Manufacturer data, 35 parameters

Video/Audio Input

Two-way Audio Input
1-ch, RCA

Network

Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser
IE(IE10/11) for Windows;
Firefox (version 52.0 and above) for Windows;
Chrome(version 45 and above) for Windows;
Edge(version 79 and above) for Windows

Video/Audio Output

HDMI/VGA Output
VGA:;
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz;
HDMI:;
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Synchronous Playback
8-ch
Live View Display
1/4/6/8/9
Corridor Mode Screen
3/4/5/7/9

Snapshot

FTP/Schedule/Event Snapshot
16-ch snapshot, up to 1080P resolution

Decoding

Decoding Format
Ultra 265, H.265, H.264
Live View/Playback
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30

Hard Disk

Disk Group
Support

Smart

VCA Detection by Camera
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search
Behavior Search, Vehicle Search
People Counting
People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera
Total 8-ch

General Alarm

General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

USB Interface
Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS-485
1
Alarm In
8-ch
Alarm Out
2-ch

PoE

Max. Power
Max 30W for single port;
Max 130W in total
Supported Standard
IEEE 802.3af/at

General

Power Supply
100~240V AC;
Power Consumption: ≤ 15W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W × D × H)
380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD)
≤2.6Kg (5.73lb)

Certification

Certification
CE, FCC, UL, RoHS, WEEE
CE
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC
Part15 Subpart B, ANSI C63.4
