Product code: #ALL-005096

ARA33A detector additional bracket, compatible with ARD2231, ARD1233 series

Dahua

ARA33A detector additional bracket, compatible with ARD2231, ARD1233 series

13.49 ₾

VAT included

  • In stock
13.49 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

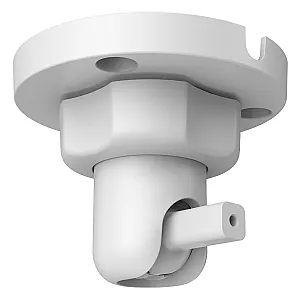

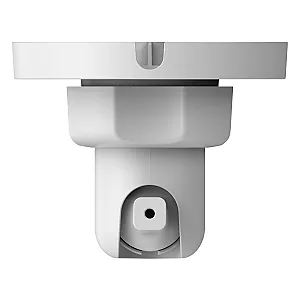

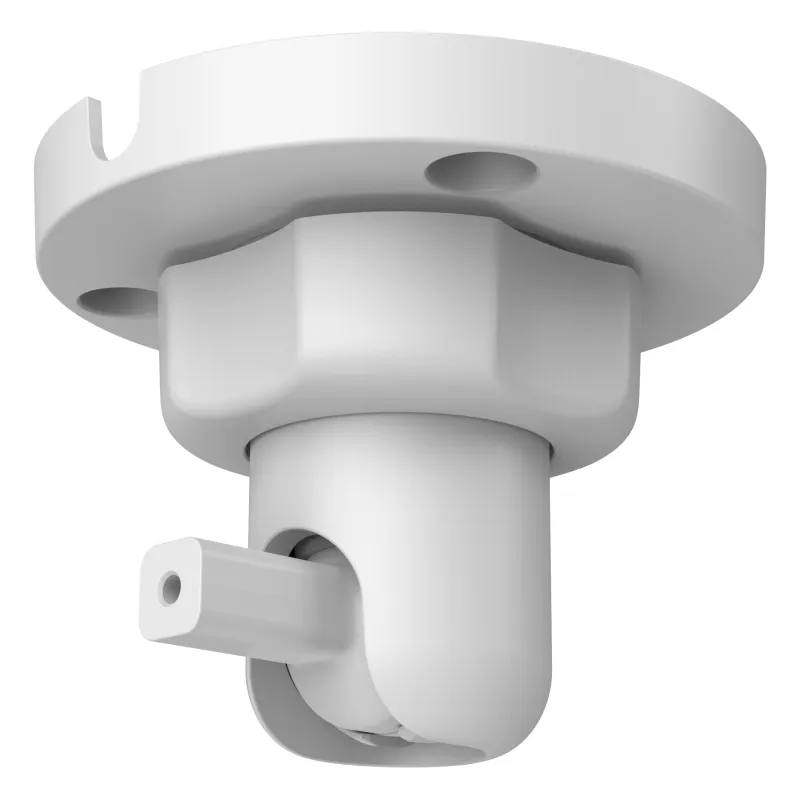

The Dahua ARA33A is an additional detector bracket for mounting ARD2231 series and ARD1233 series detectors. It supports both wall mounting and ceiling mounting, and it lets the installer adjust the angle of the detector after it is fitted.

The bracket is made of PC and aluminum alloy and measures Ø70 × 55.1 mm (Ø2.76 × 2.17 in). It weighs 45 g (1.59 oz), or 120 g (0.26 lb) gross weight with packaging.

Key features:

  • Compatible with the ARD1233 series and the ARD2231 series
  • Wall mount and ceiling mount installation
  • Rotation angle on a wall mount: horizontal ±90°, vertical ±70°
  • Rotation angle on a ceiling mount: horizontal ±180°, vertical ±70°
  • Material: PC and aluminum alloy, with basic anticorrosion protection
  • Operating temperature: -10 … +55 °C (14 … 131 °F), operating humidity: 10%–90% (RH)
  • Storage temperature: -10 °C to +55 °C (+14 °F to +131 °F), package size: 127 mm × 88 mm × 79 mm (5.00" × 3.46" × 3.11")

Specifications 12

Open the spec sheet PDF(opens in a new tab)

Physical

Operating Temperature
-10 … +55 °C (14 … 131 °F)
Mounting
Wall mount;
ceiling mount
Dimensions
Ø70 × 55.1 mm (Ø2.76 × 2.17 in)
Weight
45 g (1.59 oz)

Full specification

Manufacturer data, 8 parameters

General

Operating Humidity
10%–90% (RH)
Gross Weight
120 g (0.26 lb)
Rotation Angle
Wall mount: Horizontal: ±90°, vertical: ±70°;
Ceiling mount: Horizontal: ±180°, vertical: ±70°
Material
PC and aluminum alloy
Applicable Model
ARD1233 series;
ARD2231 series
Anti-corrosion Level
Basic protection
Storage Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Packaging dimensions
127 mm × 88 mm × 79 mm (5.00" × 3.46" × 3.11")
