Product code: #ALL-005095

ARA34A detector additional bracket, compatible with ARD1731 series

Dahua

ARA34A detector additional bracket, compatible with ARD1731 series

13.49 ₾

VAT included

  • In stock
13.49 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

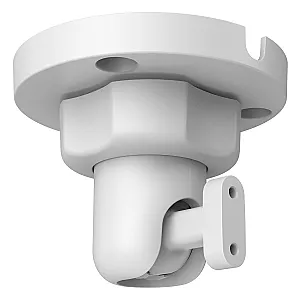

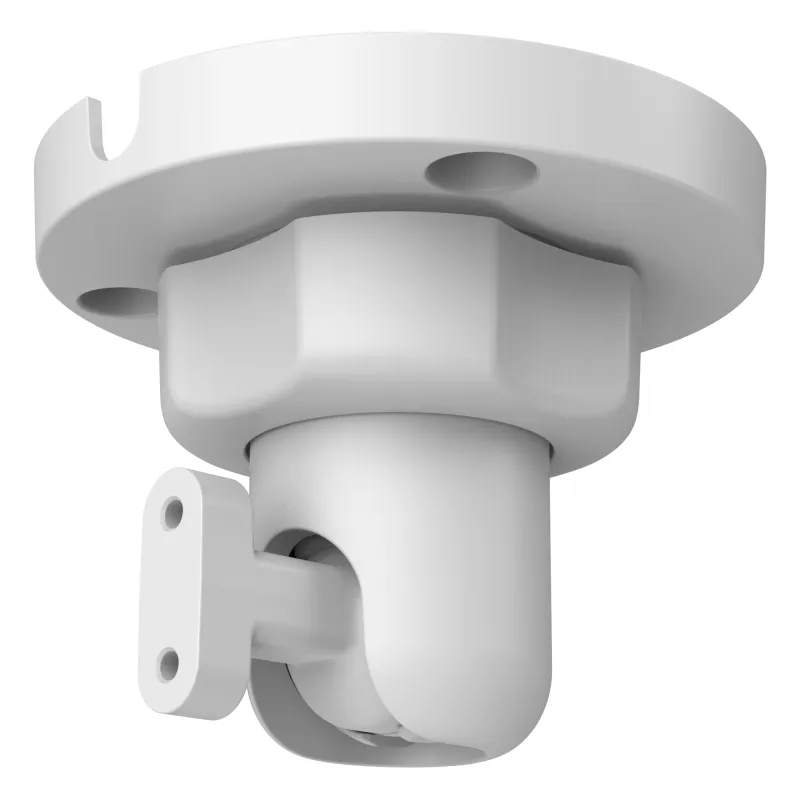

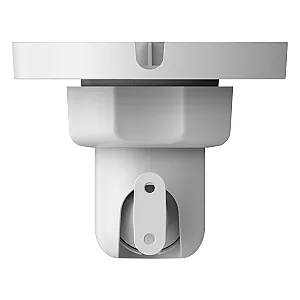

The Dahua ARA34A is an additional detector bracket designed for use with the ARD1731 series. It holds the detector in place and allows its angle to be adjusted after installation.

The bracket is made of PC and aluminum alloy and measures Ø70 × 55.1 mm (Ø2.76 × 2.17 in). It can be mounted on a wall or on a ceiling, with a different rotation range for each position.

Key features:

  • Compatible with the ARD1731 series
  • Wall mount and ceiling mount options
  • Wall mount rotation: horizontal ±90°, vertical ±50°
  • Ceiling mount rotation: horizontal ±180°, vertical ±90°
  • Material: PC and aluminum alloy, with basic anti-corrosion protection
  • Operating temperature: -10 … +55 °C (14 … 131 °F); operating humidity: 10%–90% (RH)
  • Weight: 45 g (1.59 oz); gross weight: 129 g (0.28 lb)

Specifications 12

Open the spec sheet PDF(opens in a new tab)

Physical

Operating Temperature
-10 … +55 °C (14 … 131 °F)
Mounting
Wall mount;
ceiling mount
Dimensions
Ø70 × 55.1 mm (Ø2.76 × 2.17 in)
Weight
45 g (1.59 oz)

Full specification

Manufacturer data, 8 parameters

General

Operating Humidity
10%–90% (RH)
Gross Weight
129 g (0.28 lb)
Rotation Angle
Wall mount: Horizontal: ±90°, vertical: ±50°;
Ceiling mount: Horizontal: ±180°, vertical: ±90°
Material
PC and aluminum alloy
Applicable Model
ARD1731 series
Anti-corrosion Level
Basic protection
Storage Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Packaging dimensions
127 mm × 88 mm × 79 mm (5.00" × 3.46" × 3.11")
