Product code: #ALL-001835

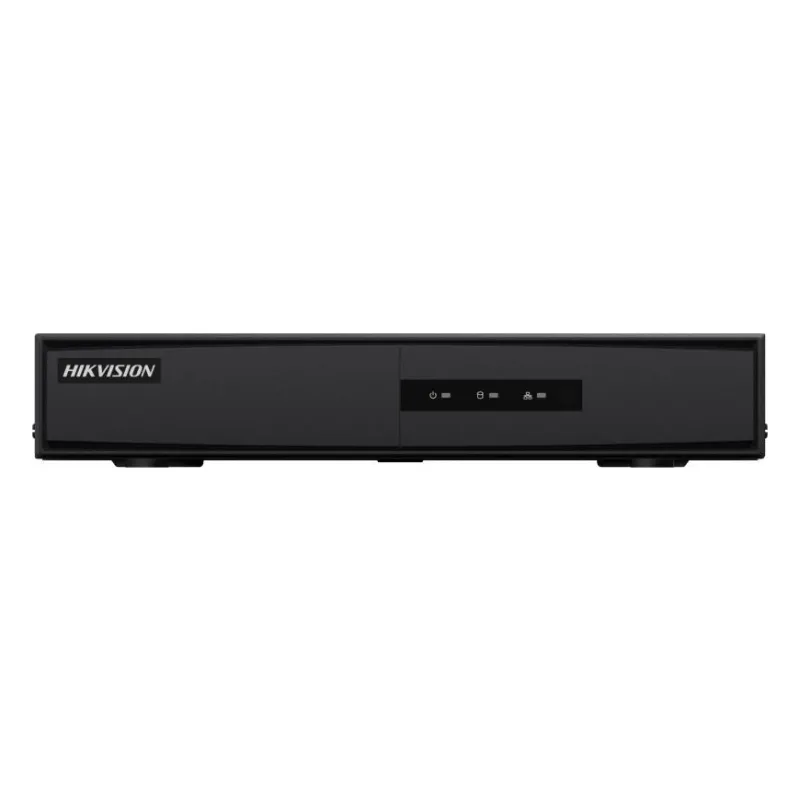

Recorder, NVR Hikvision, DS-7104NI-Q1/M (D), 1sata, 4ch

Hikvision

Recorder, NVR Hikvision, DS-7104NI-Q1/M (D), 1sata, 4ch

270 ₾

VAT included

270 ₾

VAT included

Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 4 cameras, 30 days: 5.6 TB · 1 × 6 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-7104NI-Q1/M(D) is a 4-channel network video recorder (NVR) for IP camera systems. It records the video signal from IP cameras and has 1 SATA slot for a hard drive, with up to 6 TB per drive.

The recorder supports H.265+ and H.264+ compression and recording resolutions from 1 MP (720p) up to 6 MP. It connects to a network through an RJ45 10/100M interface and works with the Hik-Connect and iVMS-4200 applications. Video output is available through HDMI and VGA.

Key features:

  • 4 channels, all 4 of them IP channels, with IP signal support
  • Recording resolutions: 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP and 6 MP
  • Decoding capability: 4 × 1080p (30 fps), 2 × 4 MP (30 fps) or 1 × 6 MP (30 fps)
  • H.265+ and H.264+ compression, with playback of max. 4 channels
  • 1 SATA HDD slot, up to 6 TB per drive
  • Network throughput of 40 Mbps incoming and 60 Mbps outgoing, with up to 16 users
  • HDMI and VGA video outputs, 2 × USB 2.0 ports on the rear panel, and no PoE ports

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 3 accessories

Kit · 957.49 ₾1 008.49 ₾

Kit −51 ₾

Specifications 27

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100M
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps

Power & Protection

Power Input
12 VDC, 1.5 A
Power Consumption
10 W

Recording

Decoding capability
4 × 1080p (30 fps) or 2 × 4 MP (30 fps) or 1 × 6 MP (30 fps)
Recorder Type
NVR
Channels
4
IP Channels
4
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 6 MP
Signal Support
IP
Recorder Compression
H.265+, H.264+
Playback
Up to 4 channels

Storage

HDD Bays
1
Max. Capacity per Disk
up to 6 TB

Outputs & Audio

Video Output
HDMI + VGA

Smart & Features

Alarm Input
No
Alarm Output
No

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
Hik-Connect, iVMS-4200
USB Port
Rear: 2 × USB 2.0

System Capacity

Max Users
16

Compliance

Certifications
CE

Physical

Operating humidity
10 … 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
265 × 48 × 223 mm (10.43 × 1.89 × 8.78 in)
Weight
1 kg (2.2 lb)
