Product code: #ALL-002968

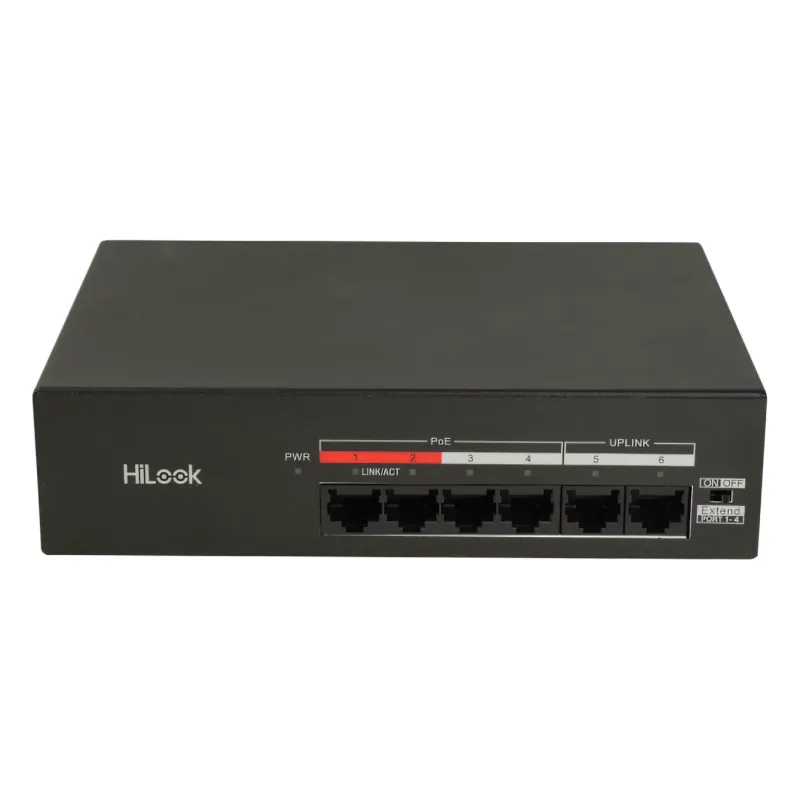

PoE switch - 4 PoE (at/af) ports, unmanaged, HiLook

HiLook · NS-0106MP-35

PoE switch - 4 PoE (at/af) ports, unmanaged, HiLook

  • Total Ports6
  • Port Speed10/100 Mbps
  • PoE Budget35 W
83.49 ₾

VAT included

  • In stock
83.49 ₾

VAT included

  • In stock
Quantity
1

1 in stock

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

PoE budget

Powers 3 cameras at 6.5 W each

Calculate exactly

Compare with similar

Full comparison

Description

The HiLook NS-0106MP-35 is an unmanaged PoE switch with 6 ports at 10/100 Mbps: 4 PoE ports and 2 RJ45 ports. The PoE ports are 1 to 4 and follow the 802.3at (PoE+) standard, with a PoE budget of 35 W.

The switch has a metal housing and no fan. It can be placed on a desk or mounted on a wall, and it carries CE certification.

Key features:

  • 6 ports in total: 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps RJ45 ports
  • PoE on ports 1 to 4 under 802.3at (PoE+), up to 30 W per port, with a PoE budget of 35 W
  • Long range transmission on ports 1 to 4 of up to 300 m; range may vary depending on the camera model or cable condition
  • Bandwidth of 1.2 Gbps, forwarding rate of 0.89 Mpps, MAC table of 2K and internal buffer of 0.77 Mbits
  • 2 kV surge protection and fanless operation
  • Power supply of 220 V AC, 50 Hz, 0.8 A, with 35 W power consumption and 2.0 W in standby
  • Dimensions of 175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88''), net weight of 0.54 kg (1.19 lb), operating temperature of 0 °C to 40 °C (32 °F to 104 °F)

Bought together

−5%

Tick what you need

NS-0106MP-35

Kit · 83.49 ₾

Tick at least 1 product

Specifications 30

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Consumption
35 W
Fanless
Yes
Surge Protection
2 kV

Ports & PoE

PoE Ports
4
Total Ports
6
Port Speed
10/100 Mbps
PoE Standard
802.3at (PoE+)
PoE Budget
35 W

Performance

Management
Unmanaged
Switching Capacity
1.2 Gbps
Forwarding Rate
0.89 Mpps

Compliance

Certifications
CE

Full specification

Manufacturer data, 18 parameters

General

Shell
Metal material
Net Weight
0.54 kg (1.19 lb)
Gross Weight
0.58 kg (1.28 lb)
Dimensions (W × H × D)
175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
220 V AC, 50 Hz, 0.8 A
Power Consumption in Idle
2.0 W
Installation Mode
Desk-Mounted,Wall-Mounted

Network Parameters

Ports
4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table
2K
Internal Cache
0.77 Mbits

PoE Power Supply

PoE Port
PoE: Ports 1 to 4
Max. Port Power
30 W

Dialing Function

Long Range
Ports 1 to 4: up to 300 m.;
Long range performance may vary depend on camera model or cable condition.

Approval

Chemistry
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2018)
