Product code: #ALL-000180

Network recorder Dahua NVR4104HS-4KS2/L

Dahua

Network recorder Dahua NVR4104HS-4KS2/L

311.23 ₾

VAT included

  • In stock
311.23 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 4 cameras, 30 days: 5.6 TB · 1 × 6 TB

Calculate exactly

Compare with similar

Full comparison

Description

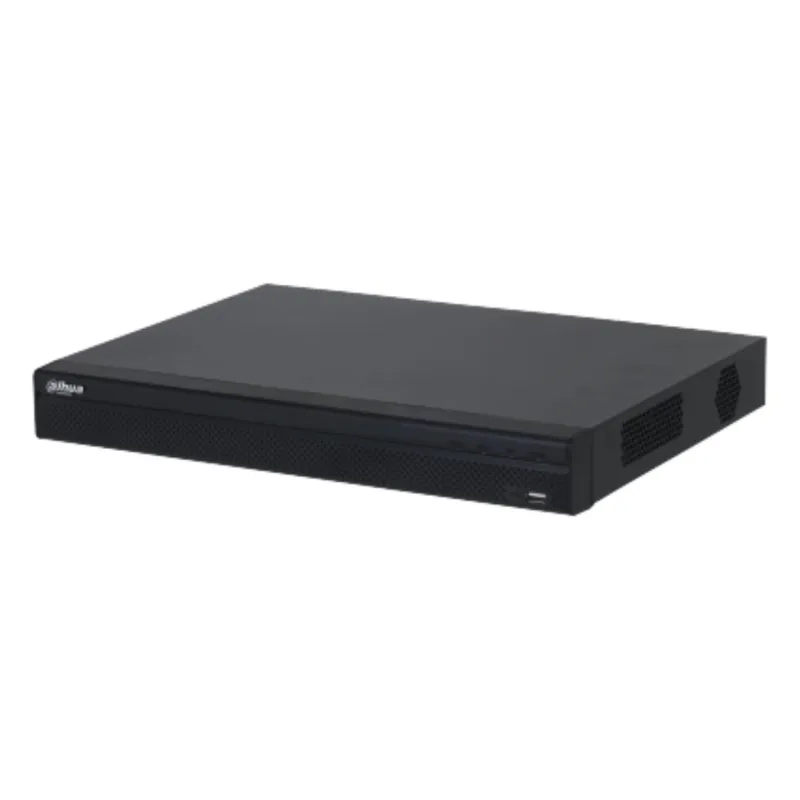

The Dahua NVR4104HS-4KS2/L is a network video recorder that records and plays back video from IP cameras. It has 4 channels, supports H.265 compression and records at resolutions from 1 MP (720p) up to 8 MP (4K).

It comes in a compact case and has 1 HDD slot. Video output is through HDMI and VGA, which can be used at the same time. The recorder works with ONVIF, and it can be used with the DMSS and SmartPSS Lite applications.

Key features:

  • 4 channels and 4 IP channels, with IP signal support and H.265 recording compression
  • Recording resolutions: 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP and 8 MP (4K)
  • Decoding capability of 8 × 1080p@30 fps, with playback of up to 4 channels
  • 1 HDD slot, supporting up to 10 TB per disk
  • Network: 1 × RJ-45 port (10/100 Mbps), 80 Mbps incoming and 60 Mbps outgoing bandwidth, ONVIF support; 0 PoE ports

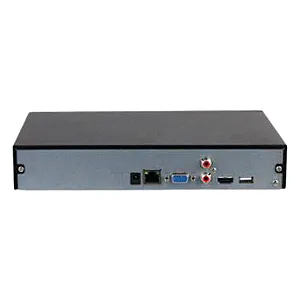

  • Outputs: 1 × HDMI and 1 × VGA with simultaneous output, 1 × RCA audio input and 1 × RCA audio output, plus USB 2.0 ports on the front (1) and rear (1)
  • 12 VDC, 2A power input; operating temperature -10 … +55 °C (14 … 131 °F); 260 × 50.3 × 232.5 mm (10.24 × 1.98 × 9.15 in); 810 g (28.57 oz); CE and FCC certificates

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 3 accessories

Kit · 2 403.72 ₾2 530.72 ₾

Kit −127 ₾

Specifications 26

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
1 × RJ-45, 10/100 Mbps
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
60 Mbps
ONVIF
Yes

Power & Protection

Power Input
12 VDC , 2A

Recording

Decoding capability
8 × 1080p@30 fps
Recorder Type
NVR
Channels
4
IP Channels
4
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K)
Signal Support
IP
Recorder Compression
H.265
Playback
Up to 4 channels of recording playback

Storage

HDD Bays
1
Max. Capacity per Disk
up to 10 TB

Outputs & Audio

Video Output
1 × HDMI, 1 × VGA;
simultaneous VGA/HDMI output
Audio Input
1 × RCA input
Audio Output
1 × RCA output

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
DMSS, SmartPSS Lite
USB Port
Front: 1 × USB 2.0;
rear: 1 × USB 2.0

Compliance

Certifications
CE, FCC

Physical

Form Factor / Chassis
Compact
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
260 × 50.3 × 232.5 mm (10.24 × 1.98 × 9.15 in)
Weight
810 g (28.57 oz)
