Product code: #ALL-000139
Dahua
Dahua XVR1B16H-I 16-channel 5M-N/1080p, 1 SATA, H.265+, 128Mbps, HDMI/VGA
- Channels16
- Recording Resolution2 MP (1080p)
- HDD Bays1
560.15 ₾
VAT included
560.15 ₾
VAT included
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Storage
For 16 cameras, 30 days: 22.4 TB
Calculate exactlyCompare with similar
Full comparison- XVR1B04-I/T recorder HDCVI/AHD/TVI/CVBS/IP, 1080N/720P Cooper-I series, 4 ch, 1 slotNetwork Interface 1 × RJ-45, 10/100 Mbps137.44 ₾422.71 ₾ cheaper
- XVR5104HS-4KL-I3/T recorder HDCVI/AHD/TVI/CVBS/IP, WizSense I3 4K series, 4 ch, 1 slotNetwork Interface 1 × RJ-45, 10/100 Mbps360 ₾200.15 ₾ cheaper
Specification | This product XVR1B16H-I | ||
|---|---|---|---|
560.15 ₾ | 137.44 ₾ Best price | 360 ₾ | |
| Network InterfaceNetwork Interface | 1 × RJ-45, 10/100/1000 Mbps | 1 × RJ-45, 10/100 Mbps | 1 × RJ-45, 10/100 Mbps |
| Incoming BandwidthIncoming Bandwidth | 128 MbpsBest value | 20 Mbps | 64 Mbps |
| Outgoing BandwidthOutgoing Bandwidth | 128 MbpsBest value | 20 Mbps | 64 Mbps |
| Power SupplyPower Supply | 12 VDC, 2 A | 12 VDC, 1.5 A | 12 VDC, 2 A |
Description
The Dahua XVR1B16H-I is a 16-channel XVR (digital video recorder) that records at 2 MP (1080p) resolution. It accepts HDCVI, AHD, TVI, CVBS and IP signals, and it supports H.265+, H.265 and AI coding for recording.

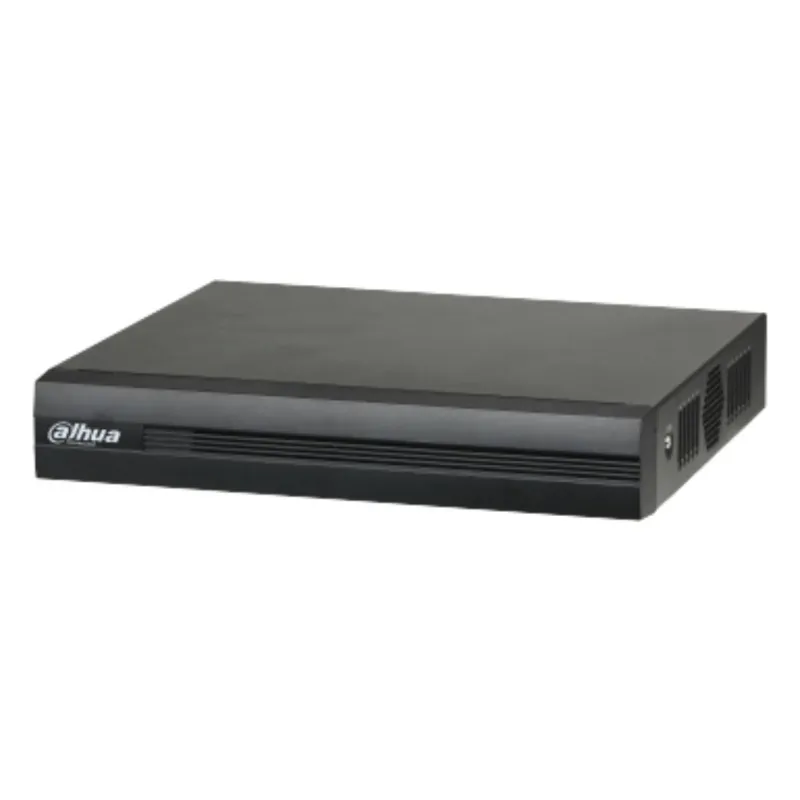

The recorder has 1 HDD slot that takes a disk of up to 16 TB. It has a compact housing for desktop placement and outputs video through 1× HDMI and 1× VGA. It includes the WizSense AI function and works with the DMSS and SmartPSS Lite applications.
Key features:
- 16 channels, all of them analog channels, plus 24 IP channels, with 2 MP (1080p) recording resolution
- Signal support: HDCVI, AHD, TVI, CVBS, IP
- Compression: H.265+, H.265, AI coding
- 1 SATA HDD slot, up to 16 TB per disk
- Network: 1 × RJ-45 (10/100/1000 Mbps), 128 Mbps incoming and 128 Mbps outgoing stream, ONVIF support

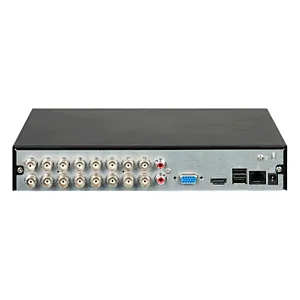

- Outputs: 1× HDMI, 1× VGA; audio input via 1 × RCA and 16 × BNC (coaxial audio); audio output via 1 RCA channel; 2 × USB 2.0 ports on the rear
- 12 VDC, 2 A power supply, 12 W power consumption, operating temperature -10 … +45 °C (14 … 113 °F), dimensions 260 × 47.6 × 231.4 mm (10.24 × 1.87 × 9.11 in), weight 930 g (32.8 oz), CE and FCC certificates
Bought together
−5%The kit is ready, adjust it as you need
Recorder + 2 accessories
Kit · 2 820.44 ₾2 969.44 ₾
Kit −149 ₾
Specifications 28
Open the spec sheet PDF(opens in a new tab)Network
- Network Interface
- 1 × RJ-45, 10/100/1000 Mbps
- Incoming Bandwidth
- 128 Mbps
- Outgoing Bandwidth
- 128 Mbps
- ONVIF
- Yes
Power & Protection
- Power Supply
- 12 VDC, 2 A
- Power Input
- 12 VDC, 2 A
Recording
- Recorder Type
- XVR
- Channels
- 16
- Recording Resolution
- 2 MP (1080p)
- Signal Support
- HDCVI, AHD, TVI, CVBS, IP
- Recorder Compression
- H.265+, H.265, AI Coding
Storage
- Max. Capacity per Disk
- up to 16 TB
Outputs & Audio
- Video Output
- 1× HDMI, 1× VGA
- Audio Input
- 1 × RCA;
16 × BNC (Coaxial Audio) - Audio Output
- 1 channel RCA
Smart & Features
- AI Features
- WizSense
Connectivity
- Compatible software
- DMSS, SmartPSS Lite
- USB Port
- Rear: 2 × USB 2.0
Compliance
- Certifications
- CE, FCC
Physical
- Form Factor / Chassis
- Compact
- Operating Temperature
- -10 … +45 °C (14 … 113 °F)
- Mounting
- Desktop
- Dimensions
- 260 × 47.6 × 231.4 mm (10.24 × 1.87 × 9.11 in)
- Weight
- 930 g (32.8 oz)
- Specifications (PDF)AllDigital technical data(opens in a new tab)Download
- XVR1B16H-I datasheet 20241113Datasheet · EN(opens in a new tab)
- Dahua AI Digital Video Recorder User Manual V2.7.0Manual · EN(opens in a new tab)
- Digital Video Recorder Quick Start Guide V1.0.0Manual · EN(opens in a new tab)
- XVR1B16H-I PORTDrawing · EN(opens in a new tab)
- XVR1B16H-I DIMENSIONSDrawing · EN(opens in a new tab)
