Product code: #ALL-004994

XVR5116HS-I3/T recorder HDCVI/AHD/TVI/CVBS/IP, WizSense I3 1080P series, 16 ch, 1 slot

Dahua

XVR5116HS-I3/T recorder HDCVI/AHD/TVI/CVBS/IP, WizSense I3 1080P series, 16 ch, 1 slot

746.87 ₾

VAT included

  • In stock
746.87 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 16 cameras, 30 days: 22.4 TB

Calculate exactly

Compare with similar

Full comparison

Description

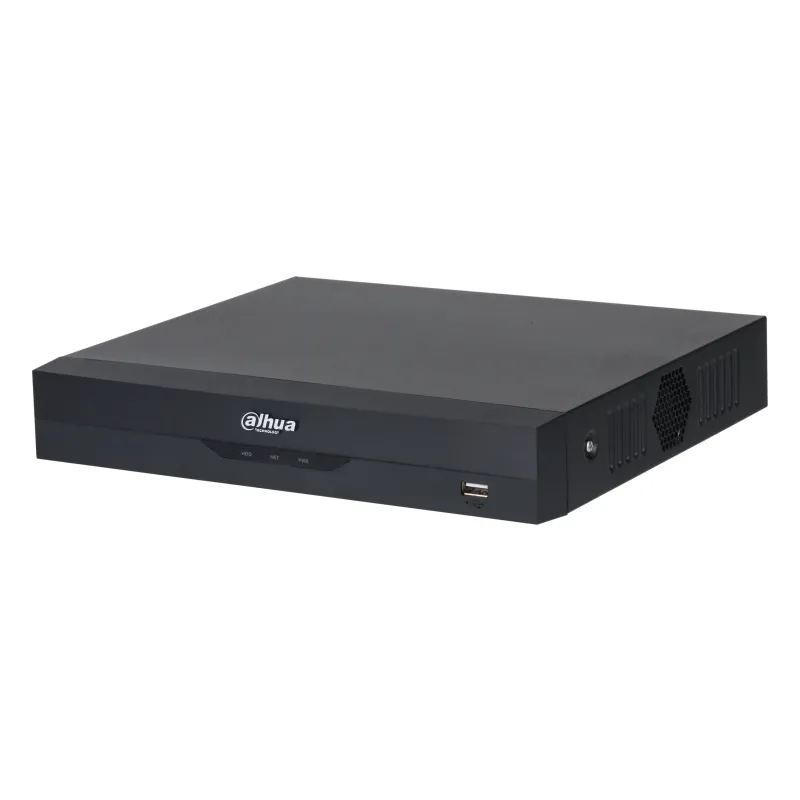

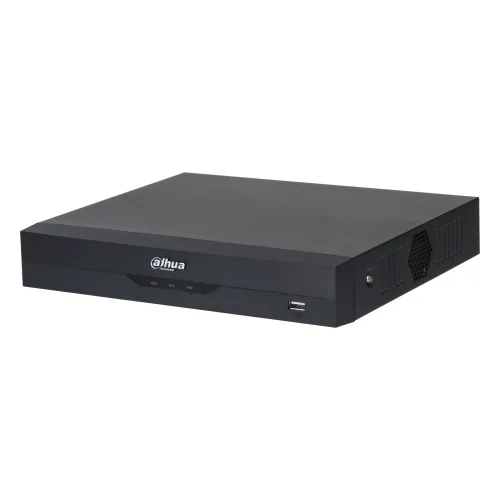

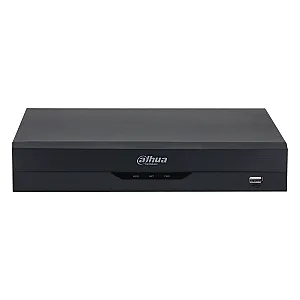

The Dahua XVR5116HS-I3/T is a 16-channel XVR from the WizSense I3 1080P series. It records HDCVI, AHD, TVI, CVBS and IP signals, so analog cameras and network cameras can be handled by the same recorder.

The recorder has 1 HDD slot and a compact housing for desktop placement. It supports H.265+, H.265 and AI coding, and works with the DMSS and SmartPSS Lite applications.

Key features:

  • 16 analog channels and 24 IP channels, with HDCVI, AHD, TVI, CVBS and IP signal support
  • H.265+, H.265 and AI coding compression, with WizSense AI functions
  • 1 HDD slot, up to 16 TB per disk
  • 1 × RJ-45 network port, 10/100/1000 Mbps, with 128 Mbps incoming and 128 Mbps outgoing stream and ONVIF support

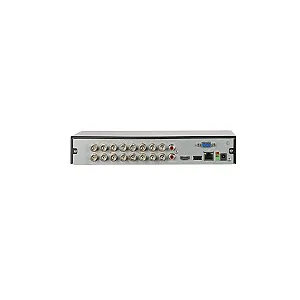

  • Video output through 1× HDMI and 1× VGA; audio input through 1 × RCA and 16 × BNC (coaxial audio); audio output of 1 RCA channel
  • USB ports: 1 × USB 2.0 on the front and 1 × USB 3.0 on the back
  • 12 VDC, 2 A power supply, 12 W power consumption, operating temperature -10 … +55 °C (14 … 131 °F), CE certified, size 260 × 47.6 × 237.8 mm (10.24 × 1.87 × 9.36 in), weight 1 kg (2.2 lb)

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 2 998.16 ₾3 156.16 ₾

Kit −158 ₾

Specifications 28

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
1 × RJ-45, 10/100/1000 Mbps
Incoming Bandwidth
128 Mbps
Outgoing Bandwidth
128 Mbps
ONVIF
Yes

Power & Protection

Power Supply
12 VDC, 2 A
Power Input
12 VDC, 2 A
Power Consumption
12 W

Recording

Recorder Type
XVR
Channels
16
Analog Channels
16
IP Channels
24
Recording Resolution
2 MP (1080p)
Signal Support
HDCVI, AHD, TVI, CVBS, IP
Recorder Compression
H.265+, H.265, AI Coding

Storage

HDD Bays
1
Max. Capacity per Disk
up to 16 TB

Outputs & Audio

Video Output
1× HDMI, 1× VGA
Audio Input
1 × RCA;
16 × BNC (Coaxial Audio)
Audio Output
1 channel RCA

Smart & Features

AI Features
WizSense

Connectivity

Compatible software
DMSS, SmartPSS Lite
USB Port
Front: 1 × USB 2.0;
rear: 1 × USB 3.0

Compliance

Certifications
CE

Physical

Form Factor / Chassis
Compact
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Mounting
Desktop
Dimensions
260 × 47.6 × 237.8 mm (10.24 × 1.87 × 9.36 in)
Weight
1 kg (2.2 lb)
