Product code: #ALL-002796
Hakel
Surge protector - HLSA12,5-275/3+1, Hakel
- IP / IK RatingIP20
533.43 ₾
VAT included
- In stock
533.43 ₾
VAT included
- In stock
Quantity
1
1 in stock
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Surge protector - HSA-275/2+0, HakelNominal discharge current (In 8/20) 20 kA123.97 ₾409.46 ₾ cheaper
- Surge protector - HSA-275/1+1, HakelNominal discharge current (In 8/20) 20 kA150.10 ₾383.33 ₾ cheaper
Specification | This product HLSA12 | ||
|---|---|---|---|
533.43 ₾ | 123.97 ₾ Best price | 150.10 ₾ | |
| Nominal discharge current (In 8/20)Nominal discharge current (In 8/20) | 25 kA | 20 kA | 20 kA |
| SPD test classSPD test class | T1, T2, T3 | T2, T3 | T2, T3 |
| Number of polesNumber of poles | - | 2P | 2P |
| Width in DIN modulesWidth in DIN modules | 4 | 2 | 2 |
Description

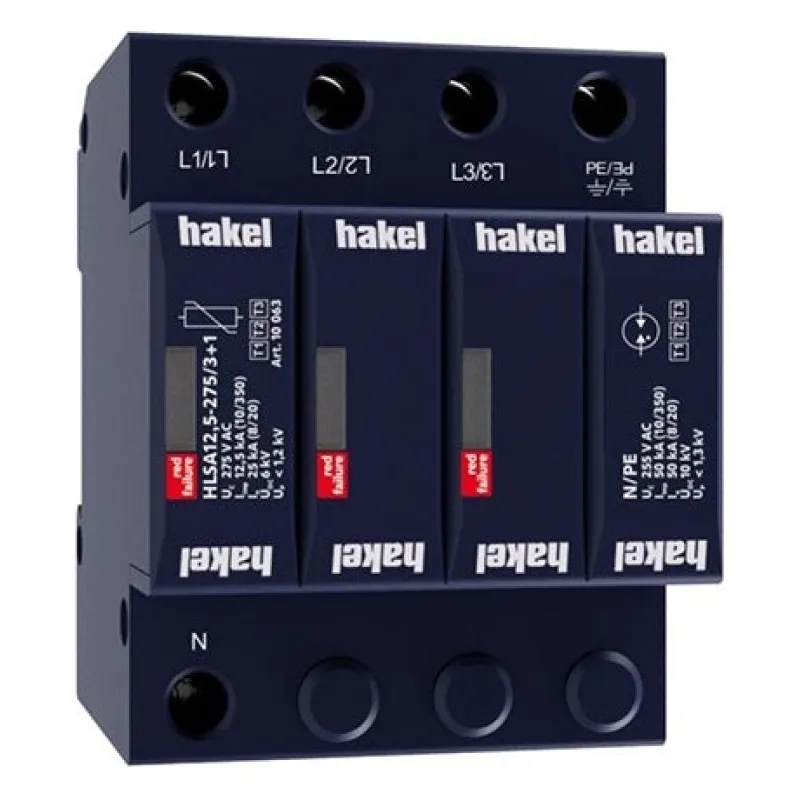

The Hakel HLSA12,5-275/3+1 is a surge protective device (SPD) that guards electrical installations against current surges. It is rated for a maximum continuous voltage (Uc) of 275 V and belongs to the 230 V voltage class.
The device covers SPD classes T1, T2 and T3. It occupies 4 DIN modules and mounts on a 35 mm DIN rail, with IP20 protection and an operating temperature range of -40 … +70 °C (-40 … 158 °F).
Key features:
- Device type: surge protective device (SPD)
- SPD classes: T1, T2, T3
- Maximum continuous voltage (Uc): 275 V
- Nominal discharge current (In): 25 kA
- Maximum discharge current (Imax): 50 kA
- Width of 4 DIN modules, mounting on a 35 mm DIN rail
- Operating temperature: -40 … +70 °C (-40 … 158 °F), IP20 protection, weight 507 g (17.88 oz)
Specifications 11
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP20
Protection Features
- Max continuous operating voltage (Uc)
- 275 V
- Max discharge current (Imax)
- 50 kA
- Nominal discharge current (In 8/20)
- 25 kA
- Protection device type
- Surge arrester (SPD)
- SPD test class
- T1, T2, T3
Jacket & Fire Rating
- Voltage Rating
- 230 V
Physical
- Width in DIN modules
- 4
- Operating Temperature
- -40 … +70 °C (-40 … 158 °F)
- Mounting
- DIN rail 35 mm
- Weight
- 507 g (17.88 oz)
