Product code: #ALL-002788
Hakel
Surge protector - HSA-275/1+1, Hakel
- IP / IK RatingIP20
150.10 ₾
VAT included
- In stock
150.10 ₾
VAT included
- In stock
Quantity
1
1 in stock
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Surge protector - HSA-275/2+0, Hakel123.97 ₾26.13 ₾ cheaper
- Surge protector - HLSA12,5-275/4+0, HakelNominal discharge current (In 8/20) 25 kA394.27 ₾244.17 ₾ more expensive
Specification | This product HSA-275/1+1 | ||
|---|---|---|---|
150.10 ₾ | 123.97 ₾ Best price | 394.27 ₾ | |
| Nominal discharge current (In 8/20)Nominal discharge current (In 8/20) | 20 kA | 20 kA | 25 kA |
| Number of polesNumber of poles | 2P | 2P | 4P |
| SPD test classSPD test class | T2, T3 | T2, T3 | T1, T2, T3 |
| Width in DIN modulesWidth in DIN modules | 2 | 2 | 4 |
Description

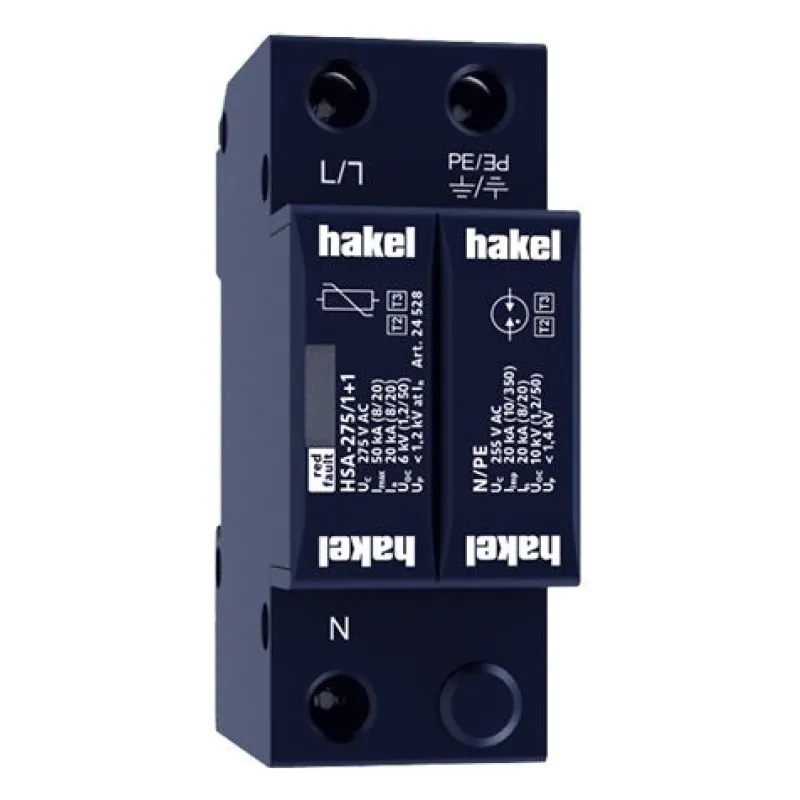

The Hakel HSA-275/1+1 is a surge protective device (SPD) that protects electrical installations against current surges. It is a 2P device with a maximum continuous voltage (Uc) of 275 V and a voltage class of 230 V.
The device is classified as T2, T3 and has a nominal discharge current (In) of 20 kA and a maximum discharge current (Imax) of 50 kA. It occupies 2 DIN modules and mounts on a 35 mm DIN rail.
Key features:
- Device type: surge protective device (SPD), SPD class T2, T3
- Poles: 2P
- Maximum continuous voltage (Uc): 275 V; voltage class: 230 V
- Nominal discharge current (In): 20 kA
- Maximum discharge current (Imax): 50 kA
- Protection rating: IP20; width: 2 DIN modules
- Operating temperature: -40 … +70 °C (-40 … 158 °F); mounting: DIN rail 35 mm; weight: 190 g (6.7 oz)
Specifications 12
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP20
Protection Features
- Max continuous operating voltage (Uc)
- 275 V
- Max discharge current (Imax)
- 50 kA
- Nominal discharge current (In 8/20)
- 20 kA
- Number of poles
- 2P
- Protection device type
- Surge arrester (SPD)
- SPD test class
- T2, T3
Jacket & Fire Rating
- Voltage Rating
- 230 V
Physical
- Width in DIN modules
- 2
- Operating Temperature
- -40 … +70 °C (-40 … 158 °F)
- Mounting
- DIN rail 35 mm
- Weight
- 190 g (6.7 oz)
