Product code: #ALL-001946
Detnov
Call button Detnov, PCD-100
- IP / IK RatingIP30
- Fire Device TypeConventional manual call point
58 ₾
VAT included
- In stock
58 ₾
VAT included
- In stock
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Beam detector, Detnov, FIREBEAM BL Beam Detector2 371 ₾2 313 ₾ more expensive
- Gas leak detector Detnov, DGD-600 24VIP / IK Rating IP32D358 ₾300 ₾ more expensive
Specification | This product PCD-100 | No specifications | |
|---|---|---|---|
58 ₾ Best price | 2 371 ₾ | 358 ₾ | |
| IP / IK RatingIP / IK Rating | IP30 | - | IP32D |
| Operating VoltageOperating Voltage | 9–28 V DC | - | 22–30 V DC |
| Standby CurrentStandby Current | < 100 µA | - | 45 mA |
| Alarm CurrentAlarm Current | < 100 µA | - | 65 mA |
Description

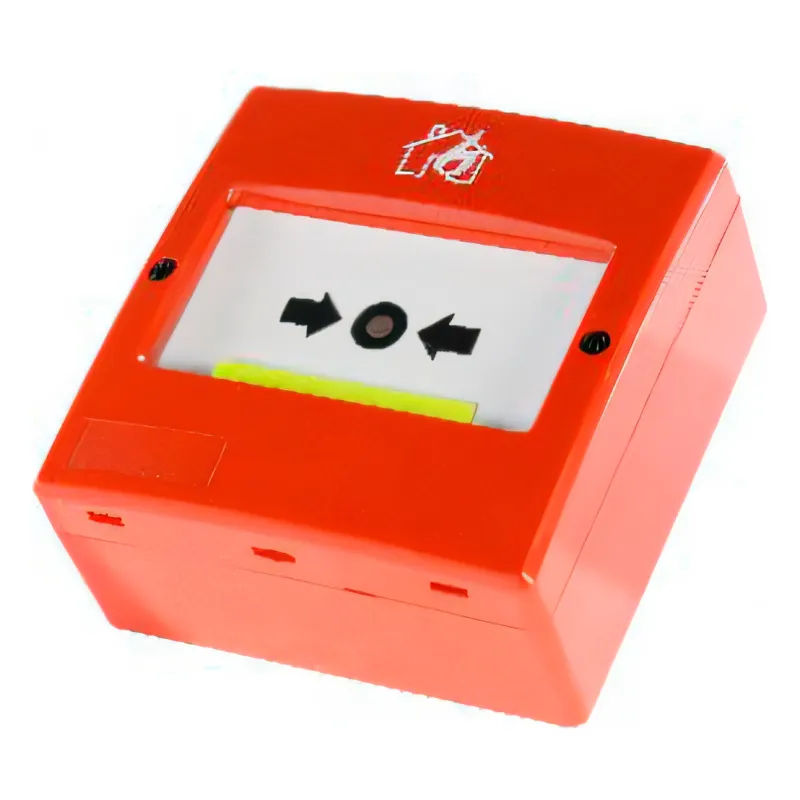

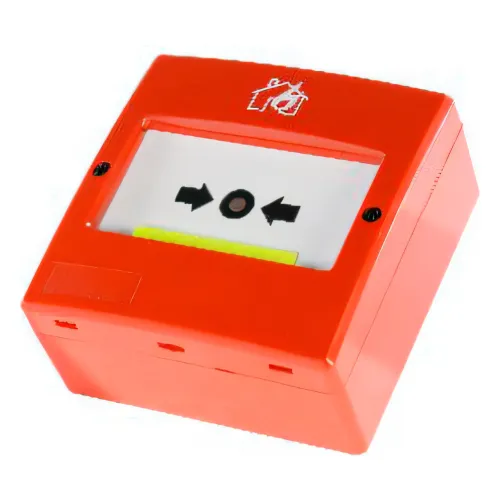

The Detnov PCD-100 is a conventional manual call point for fire alarm systems. It is used in conventional (non-addressable) fire detection setups, where a person raises an alarm by operating the device by hand.
After activation, the call point can be reset with a key. It operates on 9–28 V DC and is housed in a 98 × 98 × 48 mm (3.86 × 3.86 × 1.89 in) body with IP30 protection.
Key features:
- Conventional manual call point for conventional fire alarm systems
- Resettable operation, reset with key
- Operating voltage: 9–28 V DC
- Standby current: < 100 µA; alarm current: < 100 µA
- Complies with EN 54-11, certification 0370-CPR-2347
- Protection rating: IP30
- Operating temperature: -10 … +50 °C (14 … 122 °F)
Specifications 11
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP30
- Operating Voltage
- 9–28 V DC
- Standby Current
- < 100 µA
- Alarm Current
- < 100 µA
Overview
- Fire Device Type
- Conventional manual call point
- System Type
- Conventional
Detection
- Activation Type
- Resettable, reset with key
Compliance
- Standards
- EN 54-11
- Third-party Certification
- 0370-CPR-2347
Physical
- Operating Temperature
- -10 … +50 °C (14 … 122 °F)
- Dimensions
- 98 × 98 × 48 mm (3.86 × 3.86 × 1.89 in)
