Product code: #ALL-002009
Detnov

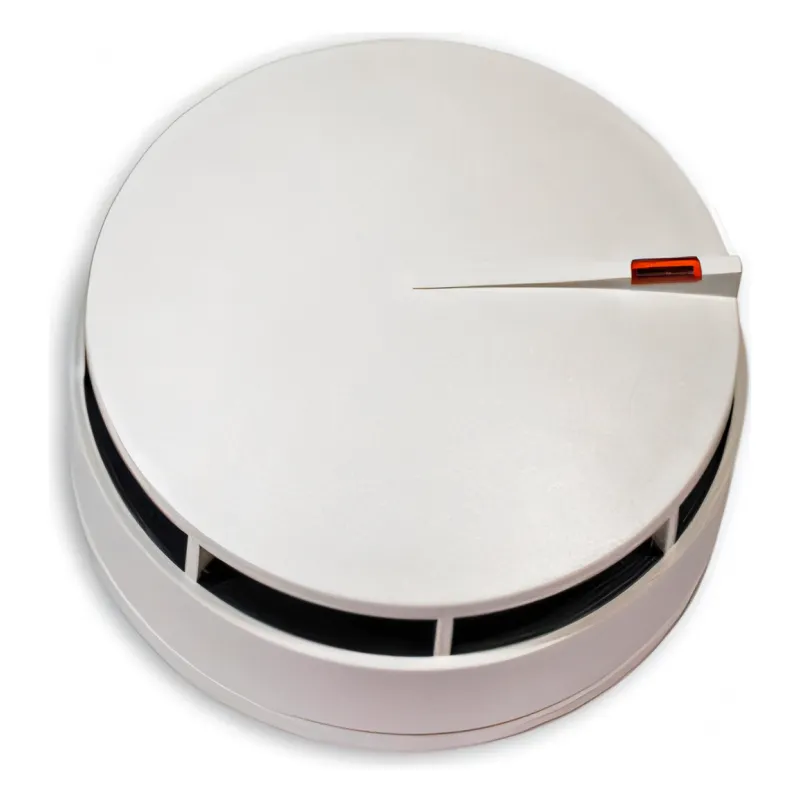

Fire smoke detector, Detnov, DOD-220
- IP / IK RatingIP40
- Fire Device TypeConventional optical smoke detector
64 ₾
VAT included
- In stock
64 ₾
VAT included
- In stock
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Beam detector, Detnov, FIREBEAM BL Beam Detector2 371 ₾2 307 ₾ more expensive
- Gas leak detector Detnov, DGD-600 24VIP / IK Rating IP32D358 ₾294 ₾ more expensive
Specification | This product DOD-220 | No specifications | |
|---|---|---|---|
64 ₾ Best price | 2 371 ₾ | 358 ₾ | |
| IP / IK RatingIP / IK Rating | IP40 | - | IP32D |
| Operating VoltageOperating Voltage | 9–38 V DC | - | 22–30 V DC |
| Standby CurrentStandby Current | < 100 µA | - | 45 mA |
| Alarm CurrentAlarm Current | < 100 mA | - | 65 mA |
Description
The Detnov DOD-220 is a conventional optical smoke detector for non-addressable fire alarm systems. It detects smoke using the scattered light principle, known as the Tyndall effect.
The detector uses optical chamber dirtiness compensation algorithms to reduce false alarms. It is certified to EN 54-7 and mounts on a Z-200 base.
Key features:
- Detection technology: optical smoke, based on scattered light (Tyndall effect)
- Operating voltage: 9–38 V DC
- Standby current: < 100 µA
- Alarm current: < 100 mA
- Optical chamber dirtiness compensation algorithms for false alarm reduction
- Standard: EN 54-7, certification 0370-CPR-0880
- Operating temperature: -10 … +70 °C (14 … 158 °F), IP40 protection, Z-200 base mounting
Specifications 13
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP40
- Operating Voltage
- 9–38 V DC
- Standby Current
- < 100 µA
- Alarm Current
- < 100 mA
Overview
- Fire Device Type
- Conventional optical smoke detector
- System Type
- Conventional
Detection
- Detector Technology
- Optical Smoke
- Detection Principle
- Optical smoke (scattered light, Tyndall effect)
- False Alarm Reduction
- Optical chamber dirtiness compensation algorithms
Compliance
- Standards
- EN 54-7
- Third-party Certification
- 0370-CPR-0880
Physical
- Operating Temperature
- -10 … +70 °C (14 … 158 °F)
- Mounting
- Z-200 base
