Product code: #ALL-002125

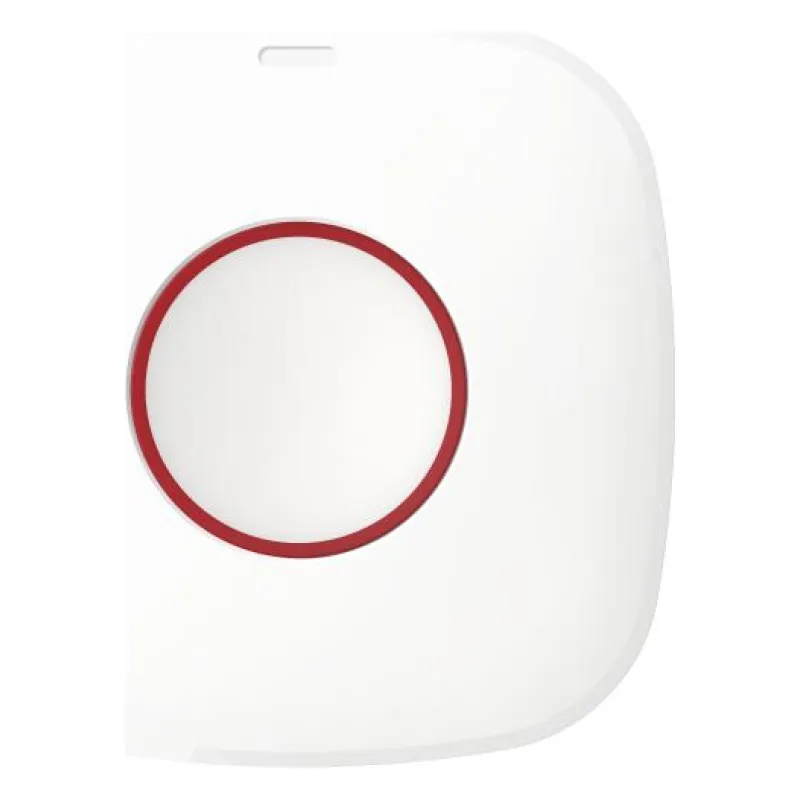

Panic button for wall mounting (1-button), wireless DS-PDEB1-EG2-WE, 868MHz AX PRO Series

Hikvision

Panic button for wall mounting (1-button), wireless DS-PDEB1-EG2-WE, 868MHz AX PRO Series

82 ₾

VAT included

  • In stock
82 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS-PDEB1-EG2-WE is a wireless 1-button panic button for wall mounting, part of the AX PRO Series. It communicates over the 868MHz radio frequency using the Tri-X Wireless protocol.

The device runs on 1 CR2450 battery and includes tamper protection. Its compact body measures 63.8 × 63.8 × 17.9 mm (2.51 × 2.51 × 0.705 in) and weighs 45.5 g (1.6 oz).

Key features:

  • Tri-X Wireless protocol on the 868MHz frequency
  • Wireless communication range of 1200 m (3937 ft)
  • AES-128 Encryption
  • Battery powered with 1 CR2450 battery, rated for 3 years in work status (being triggered 20 times per day)
  • Tamper protection
  • Wall mounting
  • Operating temperature of -10 … +55 °C (14 … 131 °F)

Power & Protection

Power Source
Battery Powered

Overview

Wireless Protocol
Tri-X Wireless
Radio Frequency
868MHz
Wireless Range
1200 m (3937 ft)
Encryption
AES-128 Encryption

Battery

Battery
CR2450 x 1
Battery Life
3 years in work status (being triggered 20 times per day)

Physical

Operating Temperature
-10 … +55 °C (14 … 131 °F)
Mounting
Wall
Dimensions
63.8 × 63.8 × 17.9 mm (2.51 × 2.51 × 0.705 in)
Weight
45.5 g (1.6 oz)
Tamper Alarm
Yes
