Hybrid outdoor siren Ajax StreetSiren Fibra black

Ajax

Hybrid outdoor siren Ajax StreetSiren Fibra black

312 ₾

VAT included

  • In stock
312 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

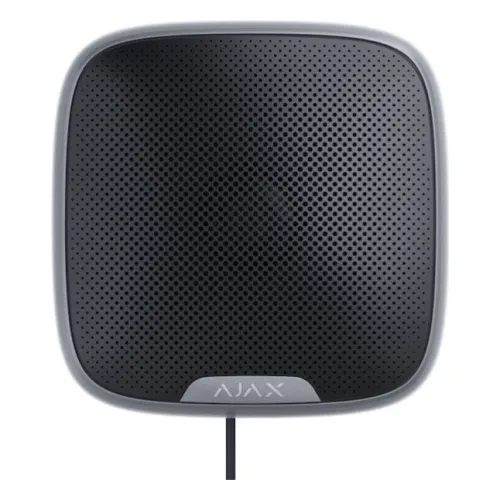

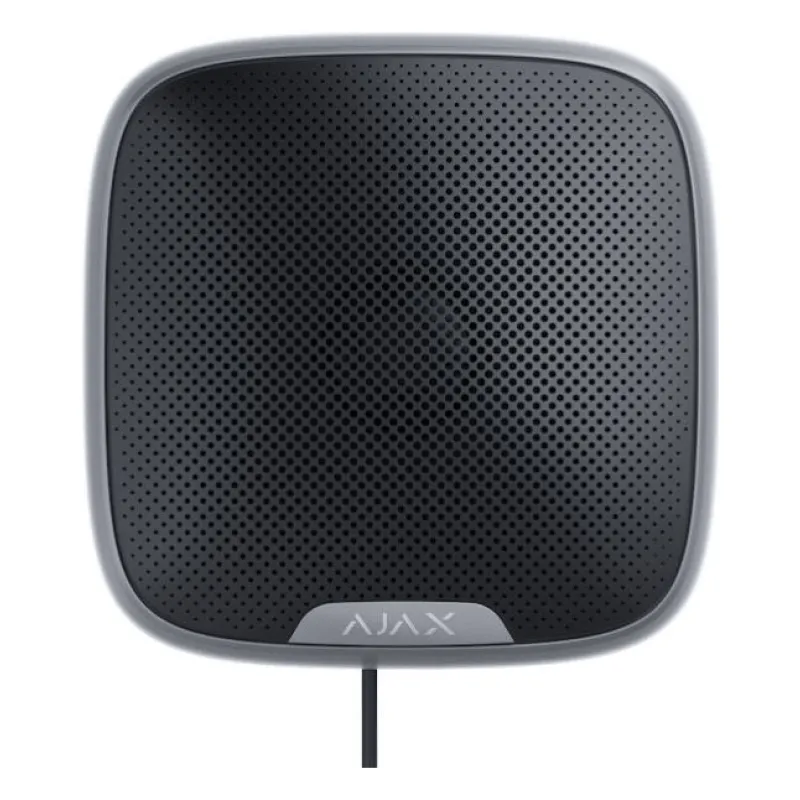

The Ajax StreetSiren Fibra is a hybrid siren for outdoor use, in black. It connects to the control panel over Fibra, Ajax's proprietary wired communication technology, using a 4-core cable. The siren is powered by the control panel and also has a 1,500 mAh LTO 2.4 V rechargeable battery.

The siren sounds at 85 … 113 dB with a tone output at 3.5 ± 0.5 kHz, and the signal lasts from 3 s to 3 min. It is designed for indoor and outdoor use, with a recommended installation height of 8.2 ft and higher. The housing is rated IP54 and IK07, and mounting is done with the SmartBracket panel.

Key features:

  • Fibra line length of up to 6,500 ft when using U/UTP cat.5 twisted pair, with two-way communication and remote configuration via the Ajax apps
  • Sound level of 85 … 113 dB, signal duration of 3 s … 3 min, and a special sound that notifies when opening detectors are triggered while the system is disarmed
  • Indication of alerts, entry/exit delays, security mode, security mode changing and after-alarm indication
  • Tamper alarm for attempts to detach the siren from the surface or remove the mounting panel, plus device authentication against spoofing
  • Operating voltage of 7−26 V⎓ (24 V⎓ nominal), with current of 2 mA in standby, 47.1 mA max and 67 mA peak at the Very Loud volume level
  • Remote firmware update by an admin or a PRO with rights to configure the system, available with siren firmware version 8.64.1.0 or later added to a hub running OS Malevich 2.36 or later
  • Operating temperature from −13°F to 140°F, humidity up to 95%, dimensions of 199 × 199 × 59 mm and weight of 571 g, with compliance to EN 50131-1, EN 50131-4, Security Grade 3 and Environmental Class IV

Specifications 44

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP54, IK07
Current Draw
47.1 mA max, 2 mA quiescent, 67 mA peak (at 24 V nominal)

Overview

Alarm Device Type
Siren

Siren & Notification

Sound Level
85 … 113 dB
Alarm Duration
3 s … 3 min

Battery

Battery
LTO 2.4 V rechargeable battery, 1,500 mAh

Physical

Mounting
SmartBracket mounting panel
Dimensions
199 × 199 × 59 mm (7.83 × 7.83 × 2.32 in)
Weight
571 g (20.14 oz)
Tamper Alarm
Yes

Full specification

Manufacturer data, 34 parameters

Communication

Fibra communication technology
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection.;
Two-way communication.;
Advanced anti-sabotage.;
Instant notifications.;
Remote configuration via the Ajax apps.
Line Connection
4-core cable
Fibra Line Length
up to 6,500 ft;
When using the U/UTP cat.5 twisted pair.

Key Features

Type of Warning Device
type Z;
External.
Type of acoustic output
tone
Siren sound frequency
3.5 ± 0.5 kHz
Chime
The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication
Alerts.;
Entry/exit delays.;
Security mode.;
Security mode changing.;
After-alarm indication.
Remote firmware update
An admin or a PRO with the rights to configure the system can run the update in Ajax apps. Available when the siren with firmware version 8.64.1.0 or later is added to a hub running OS Malevich 2.36 or later.
Recommendations
The siren is designed for indoor and outdoor use. Recommended installation height is 8.2 ft and higher.

Sabotage Protection

Tampering alarm
Alerts of attempts to detach the siren from the surface or remove the mounting panel.
Protection against Forgery
device authentication

Power Supply

Siren's Operating Voltage Range
7−26 V⎓, up to 1130 mW;
Superior StreetSiren Fibra is powered by the control panel.
Siren's Nominal Operating Voltage
24 V⎓
Siren's Maximum Current at Nominal Voltage
47.1 mA
Siren's Quiescent Current at Nominal Voltage
2 mA
Siren's Peak Current at Nominal Voltage
67 mA;
When the siren sounds at the Very Loud volume level.
Siren's Average Current at Nominal Voltage
65 µA;
When the siren sounds at the default volume level.;
Regardless of the arming mode.
Capacity of the battery
1,500 mAh;
The system notifies when the siren battery has 20% of its nominal capacity.

Enclosure

Weight of the Black Device
1.26 lb
Weight of the White Device
1.28 lb
Operating temperature range
from −13°F to 140°F
Operating Humidity
up to 95%
Colors
Black;
White

Complete set

Complete set
Superior StreetSiren Fibra;
SmartBracket mounting panel;
Installation kit;
Quick start guide

Certification and compliance with standards

Compliance with the security alarm standards
Certificate issued by TREZOR TEST s.r.o.;
EN 50131-1:2006/A1:2009/A2:2017/А3:2020;
EN 50131-4:2019;
PD 6662:2017*
Security Grade (SG)
Certificate issued by TREZOR TEST s.r.o.;
3
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.;
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by MiCOM Labs;
EN 55032:2015+A1:2020;
EN 55035:2017+A11:2020
Environmental class according to EN 50131
Certificate issued by TREZOR TEST s.r.o.;
IV
INCERT
Certificate issued by Kiwa Nederland B.V.;
T 031:2017+A1:2018+A2:2022
PSTI UK
Schedule 1
Recognition and registration of electronic security technology products
Certificate issued by VSÖ;
Approved device classes:;
GS-H, GS-H, P/S

Additional information

Warranty
24 months
