Product code: #ALL-003014

IP camera - 4MP, 2.8mm, Turret, HBD 2.0, Mic, SD, Uniview

Uniview · IPC3614LB-AF28K-A2

IP camera - 4MP, 2.8mm, Turret, HBD 2.0, Mic, SD, Uniview

182.25 ₾

VAT included

  • In stock
182.25 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

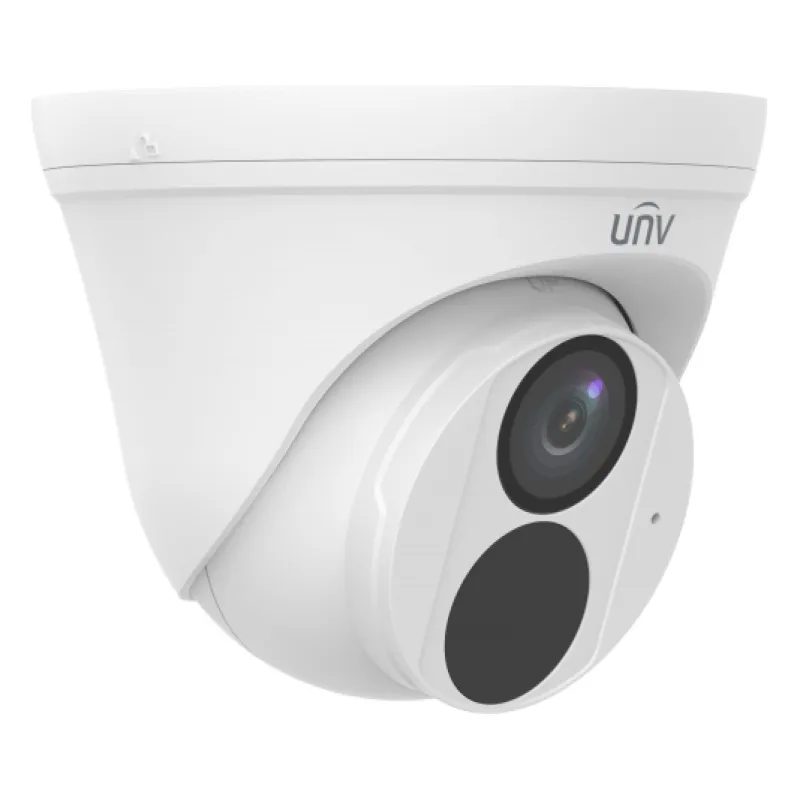

The Uniview IPC3614LB-AF28K-A2 is a 4 MP IP camera in a turret form with a plastic housing. It records at a maximum resolution of 2560 × 1440 and 25 fps, using a 1/3" image sensor and a fixed 2.8 mm lens with an F2.0 aperture and a 94° field of view.

The camera has infrared supplemental lighting with a 30 m (98.4 ft) night vision range, a minimum illumination of 0.01 Lux and an automatic IR-cut filter for day/night operation. It has a built-in microphone, supports MicroSD cards up to 512 GB and offers human detection. It is rated IP67 and works from -30 to +60 °C (-22 to 140 °F).

Key features:

  • 4 MP resolution (2560 × 1440) at 25 fps with WDR
  • 2.8 mm fixed lens, F2.0 aperture, 94° field of view
  • Infrared night vision up to 30 m (98.4 ft), day/night mode with auto IR-cut
  • Ultra 265, H.265 and H.264 compression
  • Built-in microphone and MicroSD slot for cards up to 512 GB
  • Powered by DC 12 V or PoE (IEEE 802.3af), 3.9 W power consumption, 1 × RJ45 10 M/100 M Base-TX Ethernet port
  • IP67 protection, 4 kV surge protection, compatible with Uniview EZView / EZStation, no Wi-Fi

Features in action

1 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 335.20 ₾353.20 ₾

Kit −18 ₾

Specifications 33

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/3"
Max Resolution
2560 × 1440
Megapixels
4 MP
Form Factor
Turret
Housing Material
Plastic
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F2.0
Field of View
94°

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.01 Lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
Yes
Frame Rate
25 fps
Compression
Ultra 265, H.265, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC 12 V, PoE (IEEE 802.3af)
IP / IK Rating
IP67
Power Consumption
3.9 W
Surge Protection
4 kV

Smart & Features

Features
Human Detection

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø118 × 95 mm (Ø4.65 × 3.74 in)
Weight
250 g (8.82 oz)
