Product code: #ALL-002925

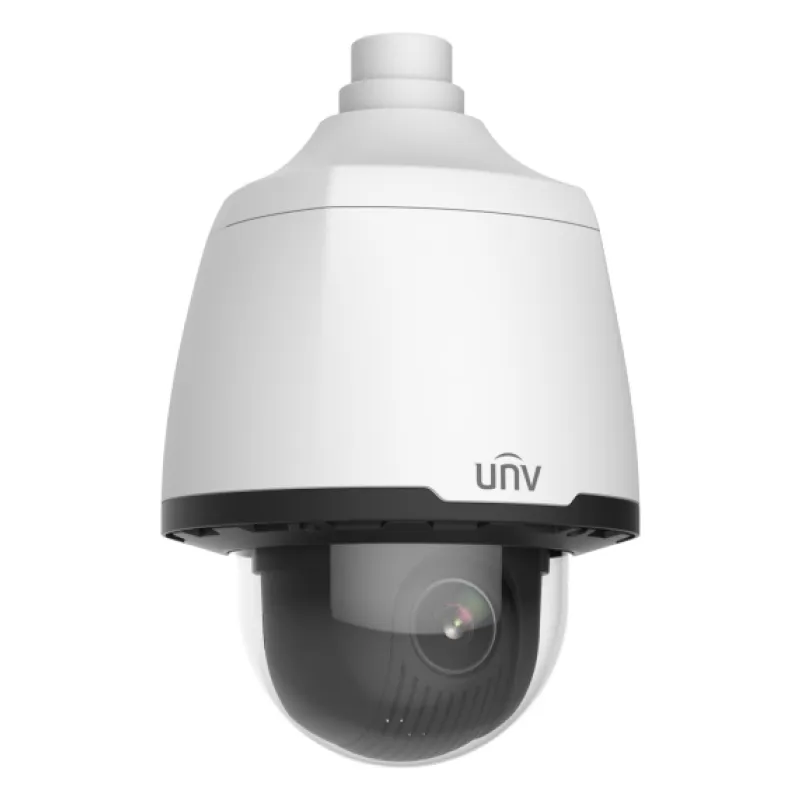

IP camera - 4MP, Dome, PTZ, 33x, SD, ANR, IK10, IR100, LightHunter, Uniview

Uniview · IPC6634S-X33-VF

IP camera - 4MP, Dome, PTZ, 33x, SD, ANR, IK10, IR100, LightHunter, Uniview

2 332.80 ₾

VAT included

  • In stock
2 332.80 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 207.4 W

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview IPC6634S-X33-VF is a 4 MP PTZ dome IP camera with a 1/2.8" image sensor and a maximum resolution of 2688 × 1520. It has a 33× optical zoom lens with a focal length of 4.5 to 148.5 mm, an F1.5 aperture and a 51° field of view. The camera pans 360° and tilts 1° to 90°, at speeds from 2°/s to 200°/s.

The camera records at 30 fps with a minimum illumination of 0.003 Lux and 120 dB WDR. Infrared night vision reaches 100 m (328.1 ft), and the housing is rated IP67 and IK10. It works from -40 to +70 °C (-40 to 158 °F) and accepts AC 24 V, DC 24 V or PoE+ (IEEE 802.3 at) power. Video is stored on a MicroSD card of up to 512 GB.

Key features:

  • 33× optical zoom and 16X digital zoom, with 1024 PTZ presets, 16 preset patrols, 16 route patrols and 16 recorded patrols
  • 4 MP resolution at 30 fps, with Ultra 265, H.265, H.264 and MJPEG compression, triple streams and LightHunter
  • Auto IR-cut day/night mode, IR range of 100 m (328.1 ft), 120 dB WDR, HLC, BLC, digital defog and 2D/3D DNR
  • Smart functions: auto tracking that filters human, non-motor vehicle and vehicle targets, perimeter protection (cross line, intrusion, enter area and leave area detection), object removed and object left behind detection, and people counting
  • Built-in microphone, 1 audio input and 1 audio output, 2-way audio, G.711U and G.711A audio compression
  • 7 alarm inputs and 2 alarm outputs, 1 × RS485 serial port, 1 × RJ45 10 M/100 M Base-TX Ethernet port, with no Wi-Fi
  • IP67 and IK10 protection, 6 kV surge protection, ONVIF (Profile S, Profile G, Profile T, Profile M), API and SDK integration, and compatibility with Uniview EZView and EZStation

Features in action

1 demos

  • Before
    then
    DarkFighter

    DarkFighter: Low-Light

    Ultra-low-light sensitivity: clear, usable images where a conventional camera sees almost nothing.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 2 389.08 ₾2 515.08 ₾

Kit −126 ₾

Specifications 92

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.8"
Max Resolution
2688 × 1520
Megapixels
4 MP
Form Factor
PTZ
Characteristics
Microphone

Lens

Optical Zoom
33 ×
PTZ Presets
1024
Pan / Tilt Range
Pan: 360°;
tilt: 1° ~ 90°
Aperture
F1.5
Field of View
51°

Image & Video

Min. Illumination
0.003 Lux
IR Range
100 m (328.1 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
30 fps
Compression
Ultra 265, H.265, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
AC 24 V, DC 24 V, PoE+ (IEEE 802.3 at)
IP / IK Rating
IP67, IK10
Power Consumption
16 W
Surge Protection
6 kV

Outputs & Audio

Audio Input
1
Audio Output
1

Smart & Features

Features
LightHunter
Alarm Input
7
Alarm Output
2

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +70 °C (-40 … 158 °F)
Dimensions
Ø218 × 297 mm (Ø8.58 × 11.69 in)
Weight
4.07 kg (8.97 lb)

Full specification

Manufacturer data, 57 parameters

Lens

Digital Zoom
16X
Focal Length
4.5 to 148.5 mm

PTZ

Preset Image Freeze
Support
Pan Speed
2°/s ~ 200°/s
Tilt Speed
2°/s ~ 200°/s
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15 s to 1800 s
Home Position
Support

Intelligent

Exception Detection
Object removed, Object Left Behind
Auto Tracking
Support, target filtering: human, non-motor vehicle and vehicle
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)


Heatwave Reduction
Support
Defog
Digital defog
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°
HLC
Support
BLC
Support

Configurable

P/N
Support

Features

People Counting
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios

Camera

Shutter
Auto/Manual, 1 to 1/100000 s
S/N
>56 dB

DORI

DORI Distance (Lens)
4.5~148.5(mm)
DORI Distance (Detect)
105.8m~3172.5m(346.9ft~10408.5ft)
DORI Distance (Observe)
42.3m~1269.0m(138.8ft~4163.4ft)
DORI Distance (Recognize)
21.2m~634.5m(69.4ft~2081.7ft)
DORI Distance (Identify)
10.6m~317.3m(34.7ft~1040.8ft)

Video

Privacy Mask
24 areas, up to 4 areas per scene
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
ROI
Support
Video Stream
Triple streams
OSD
Up to 10 OSDs

Events

Basic Detection
Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
128 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
16KHZ

Storage

Edge Storage
Micro SD, up to 512 GB

Network

Protocols
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Audio I/O
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O
7/2
Serial Port
1 * RS485
Video Output
1 BNC (for debugging)

General

Power Interface
Wires with cold-pressed terminal
Working Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button
Support
Web Client Language
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
