Product code: #ALL-003161

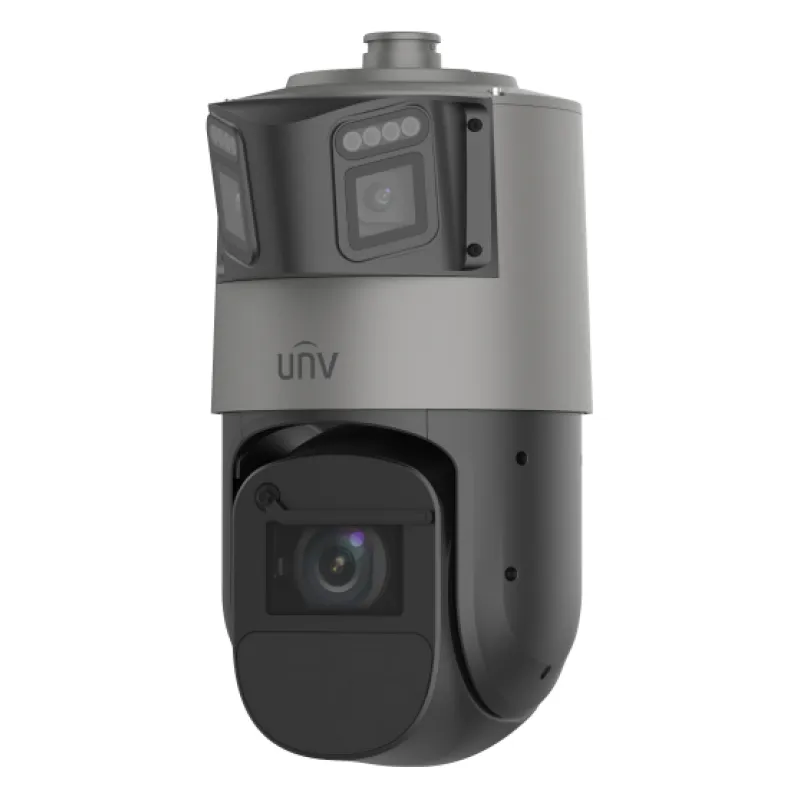

IP camera - 4MP, Dome, PTZ, 42x, SD, ANR, IK10, IR350, Wise-ISP, Uniview

Uniview · IPC98246EFW-X42-W-VH1

IP camera - 4MP, Dome, PTZ, 42x, SD, ANR, IK10, IR350, Wise-ISP, Uniview

6 925.50 ₾

VAT included

  • In stock
6 925.50 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 207.4 W

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview IPC98246EFW-X42-W-VH1 is a 4 MP PTZ IP dome camera with 42x zoom and a 1/1.8" CMOS sensor. It has an F1.2 aperture, a 59° field of view, 0.0005 Lux minimum illumination, IR night vision up to 350 m (1148.3 ft) and 120 dB WDR. It is intended for indoor use.

The built-in Wise-ISP algorithm provides intelligent noise reduction in low light. The camera also supports smart intrusion prevention, people flow counting and automatic tracking, and records locally to a MicroSD card of up to 512 GB. It works with Uniview EZView and EZStation.

Key features:

  • 4 MP image with a 1/1.8" CMOS sensor, F1.2 aperture, 59° field of view and 42x zoom
  • Low-light imaging with 0.0005 Lux minimum illumination, IR range of 350 m (1148.3 ft), 120 dB WDR, Wise-ISP and Full-Color
  • Smart intrusion prevention with cross line, intrusion, enter area and leave area detection, plus human, non-motor vehicle and vehicle classification
  • Ultra 265, H.265, H.264 and MJPEG compression, 3 video streams and a video bitrate of 128 Kbps to 16 Mbps
  • IP67 and IK10 protection, 6 kV surge protection and an operating temperature of -40 … +70 °C (-40 … 158 °F)
  • Power through PoE (IEEE 802.3bt), DC 24 V (±25%) or AC 24 V (±25%), with 1 × RJ45 1000 M Base-TX Ethernet, 1 × RS485, 7 alarm inputs and 2 alarm outputs
  • Built-in microphone and speaker, 1 audio input, 1 audio output, G.711U and G.711A audio compression, and bidirectional audio

Features in action

1 demos

  • Before
    then
    ColorVu

    ColorVu: Color Night Vision

    Full-color night vision: even in darkness the camera captures sharp, full-color images instead of black & white.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 6 751.78 ₾7 107.78 ₾

Kit −356 ₾

Specifications 67

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/1.8" CMOS
Megapixels
4 MP
Form Factor
PTZ
Usage
Indoor
Characteristics
Microphone

Lens

Aperture
F1.2
Field of View
59°

Image & Video

Min. Illumination
0.0005 Lux
IR Range
350 m (1148.3 ft)
WDR
120 dB
Compression
Ultra 265, H.265, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 1000 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC 24 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3bt)
IP / IK Rating
IP67, IK10
Power Consumption
74 W
Surge Protection
6 kV

Outputs & Audio

Audio Input
1
Audio Output
1

Smart & Features

Features
Full-Color
Alarm Input
7
Alarm Output
2

Connectivity

Compatible software
Uniview EZView / EZStation

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +70 °C (-40 … 158 °F)
Dimensions
223 × 266 × 456 mm (8.78 × 10.47 × 17.95 in)
Weight
8.4 kg (18.52 lb)

Full specification

Manufacturer data, 38 parameters

Intelligent

Metadata Analyse
Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
Linkage function
Support. Triggered by fixed lens via smart intrusion prevention function to track target
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Illuminator

Light On/Off Control
Auto/Manual

Live View

Maximum bitstream
35
Maximum bandwidth
50Mbps

Features

Wise-ISP
Built-in Wise-ISP algorithm enables intelligent noise reduction and stunning visual effects in low-light conditions
People Counting
Supports multiple deep-learning video content analysis, including smart intrusion prevention (SIP) and people flow counting for the panorama channel, and SIP, people flow counting, multi-target detection, and automatic tracking for the details channel

Camera

Shutter
Auto/Manual, 1 to 1/100000 s
S/N
>56 dB

Video

Privacy Mask
24 areas, up to 8 areas per scene
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
ROI
Up to 8 areas
Video Stream
Triple streams
OSD
Up to 10 OSDs


White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
HLC
Support
BLC
Support

Events

Basic Detection
Motion detection, Audio detection, Tampering alarm, Ultra motion detection

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
128 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz, 16 kHz

Storage

Edge Storage
MicroSD, up to 512 GB

Network

Protocols
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Security
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator

Interface

Audio I/O
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O
7/2
Serial Port
1 × RS485
Built-in Speaker
Support

General

Power Interface
Wires with cold-pressed terminal
Working Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
