Product code: #ALL-004901

IPC-HDW2449T-S-IL 2.8mm 4MP Eyeball network camera plastic housing IP67, Mic, IR/Warm light 30m

Dahua · IPC-HDW2449T-S-IL-2.8

IPC-HDW2449T-S-IL 2.8mm 4MP Eyeball network camera plastic housing IP67, Mic, IR/Warm light 30m

324.20 ₾

VAT included

  • In stock
324.20 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 8.4 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

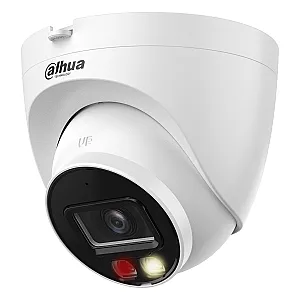

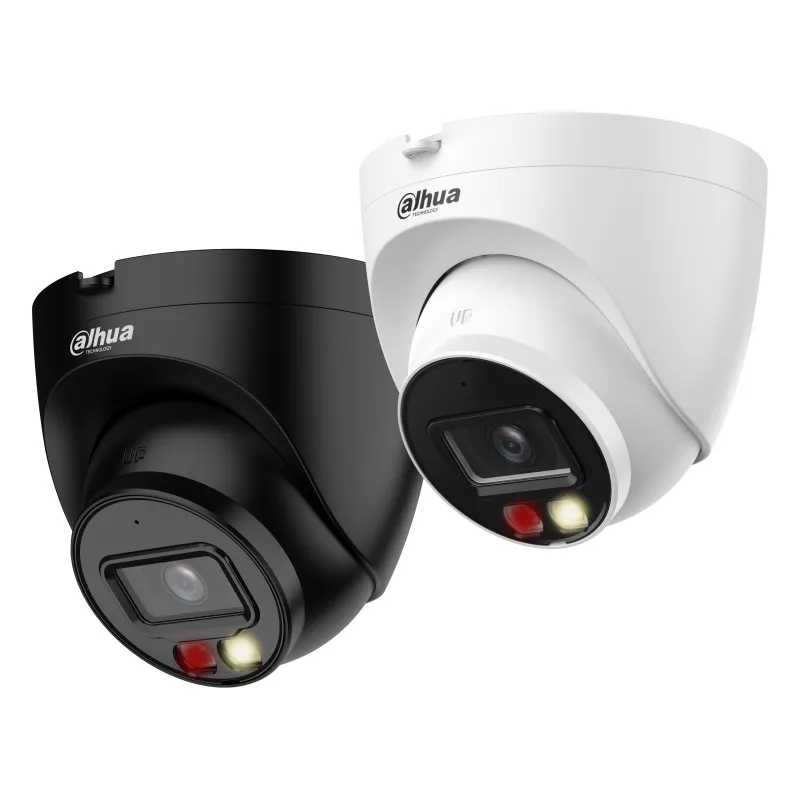

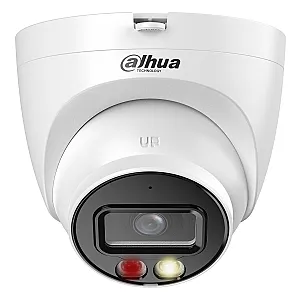

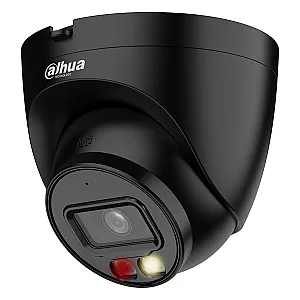

The Dahua IPC-HDW2449T-S-IL (model IPC-HDW2449T-S-IL-2.8) is a 4 MP network turret camera with a 1/2.9" CMOS sensor and a maximum resolution of 2688 (H) × 1520 (V). It has a fixed 2.8 mm lens with an F1.6 aperture and an M12 lens mount, and it comes in a plastic housing with IP67 protection.

The camera has a built-in microphone and a microSD card slot. It uses dual illumination, combining infrared (IR) and warm light, with Smart Hybrid Light as its smart function. It connects over RJ-45 (10/100 Base-T) and can be powered by 12 VDC or PoE (802.3af).

Key features:

  • 4 MP resolution (2688 × 1520), 1/2.9" CMOS sensor, 20 fps, with H.265, H.264 and MJPEG compression
  • Fixed 2.8 mm lens, F1.6 aperture, field of view of H 95° / V 52° / D 114°
  • Dual illumination (IR and warm light) with 30 m (98.4 ft) IR night vision, day/night mode with auto IR-cut and 120 dB WDR
  • Minimum illumination of 0.006 lux (color) and 0.0006 lux (black and white) at F1.6, and 0 lux with the light on
  • Built-in microphone with G.711a, G.711Mu, PCM and G.726 audio, plus FTP, SFTP and microSD storage up to 256 GB
  • 12 VDC or PoE (802.3af) power, 5.2 W power consumption, IP67 protection, operating range of -40 to +60 °C (-40 to 140 °F) at ≤ 95 % humidity
  • Works with DMSS and SmartPSS Lite, certified CE, FCC and UL, size Ø109.9 × 100.9 mm and weight 370 g (13.05 oz)

Features in action

1 demos

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 436.20 ₾459.20 ₾

Kit −23 ₾

Specifications 31

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.9" CMOS
Max Resolution
2688 (H) × 1520 (V)
Megapixels
4 MP
Form Factor
Turret
Characteristics
Microphone, microSD

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F1.6
Field of View
2.8 mm: H 95° / V 52° / D 114°;
3.6 mm: H 78° / V 41° / D 94°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR), Warm light, Dual light
Min. Illumination
0.006 lux@F1.6 (Color);
0.0006 lux@F1.6 (B/W);
0 lux (Illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
20 fps
Compression
H.265, H.264, MJPEG

Audio

Audio
G.711a;
G.711Mu;
PCM;
G.726

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
FTP;
SFTP;
Micro SD card (support max. 256 GB)

Power & Protection

Power Supply
12 VDC/PoE (802.3af)
IP / IK Rating
IP67
Power Consumption
5.2 W

Smart & Features

Features
Smart Hybrid Light

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +60 °C (-40 … 140 °F)
Dimensions
Ø109.9 × 100.9 mm (Ø4.33 × 3.97 in)
Weight
370 g (13.05 oz)
