Product code: #ALL-004902

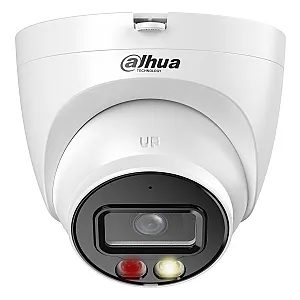

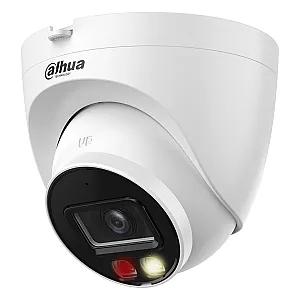

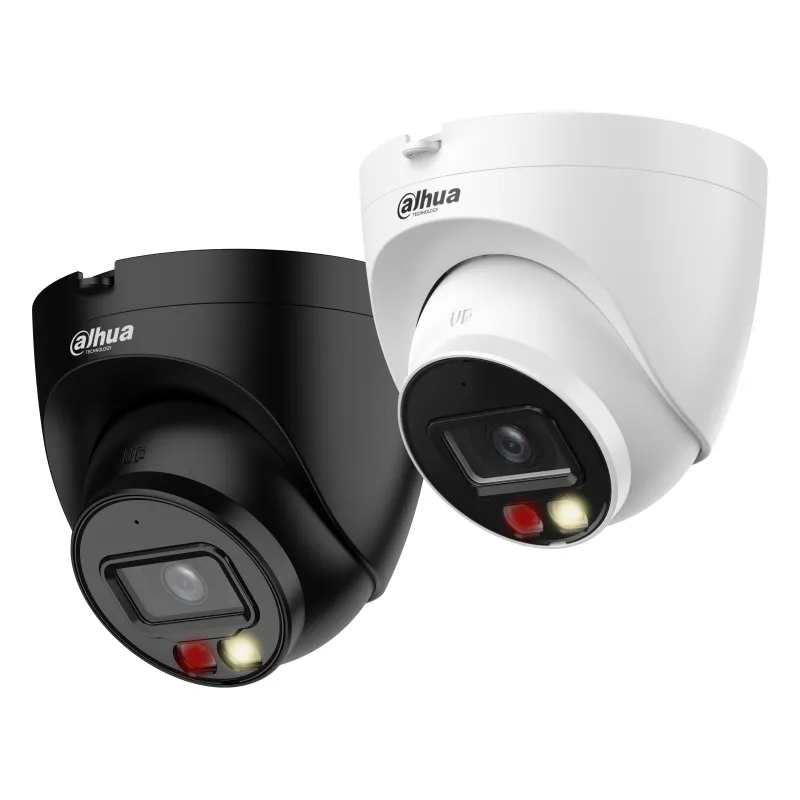

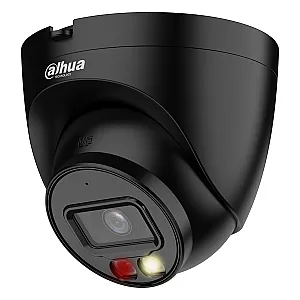

IPC-HDW2449T-S-IL 3.6mm 4MP Eyeball network camera plastic housing IP67, Mic, IR/Warm light 30m

Dahua · IPC-HDW2449T-S-IL-3.6

IPC-HDW2449T-S-IL 3.6mm 4MP Eyeball network camera plastic housing IP67, Mic, IR/Warm light 30m

324.20 ₾

VAT included

  • In stock
324.20 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 8.4 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

The Dahua IPC-HDW2449T-S-IL-3.6 is a 4 MP network turret camera in a plastic housing with IP67 protection. It uses a 1/2.9" CMOS sensor with a maximum resolution of 2688 (H) × 1520 (V) and a fixed 3.6 mm lens with an F1.6 aperture.

The camera has dual illumination, with infrared (IR) and warm light, plus Smart Hybrid Light. It includes a microphone and a microSD card slot. It connects through an RJ-45 (10/100 Base-T) port and runs on 12 VDC or PoE (802.3af).

Key features:

  • 4 MP image at 2688 (H) × 1520 (V), 20 fps, with H.265 and H.264 compression
  • Fixed 3.6 mm lens, F1.6, M12 lens mount, field of view H 78° / V 41° / D 94°
  • Day/night mode with auto IR-cut, WDR 120 dB, minimum illumination 0.006 lux (color), 0.0006 lux (black and white) and 0 lux with the light on
  • IR night vision range of 30 m (98.4 ft), with warm light and Smart Hybrid Light
  • Audio formats G.711a, G.711Mu, PCM and G.726; storage on a microSD card (up to 256 GB), FTP or SFTP
  • 12 VDC/PoE (802.3af) power, 5.2 W consumption, compatible with DMSS and SmartPSS Lite
  • IP67 rating, operating temperature -40 … +60 °C (-40 … 140 °F), humidity ≤ 95 %, Ø109.9 × 100.9 mm, 370 g (13.05 oz), CE, FCC and UL certificates

Features in action

1 demos

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 436.20 ₾459.20 ₾

Kit −23 ₾

Camera

Image Sensor
1/2.9" CMOS
Max Resolution
2688 (H) × 1520 (V)
Characteristics
Microphone, microSD

Lens

Lens
3.6 mm
Field of View
2.8 mm: H 95° / V 52° / D 114°;
3.6 mm: H 78° / V 41° / D 94°

Image & Video

Supplement light
Infrared (IR), Warm light, Dual light
Min. Illumination
0.006 lux@F1.6 (Color);
0.0006 lux@F1.6 (B/W);
0 lux (Illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Compression
H.265, H.264

Audio

Audio
G.711a;
G.711Mu;
PCM;
G.726

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
FTP;
SFTP;
Micro SD card (support max. 256 GB)

Power & Protection

Power Supply
12 VDC/PoE (802.3af)

Smart & Features

Features
Smart Hybrid Light

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +60 °C (-40 … 140 °F)
Dimensions
Ø109.9 × 100.9 mm (Ø4.33 × 3.97 in)
Weight
370 g (13.05 oz)
