Product code: #ALL-000224

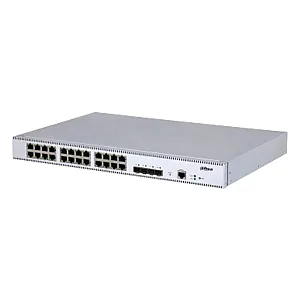

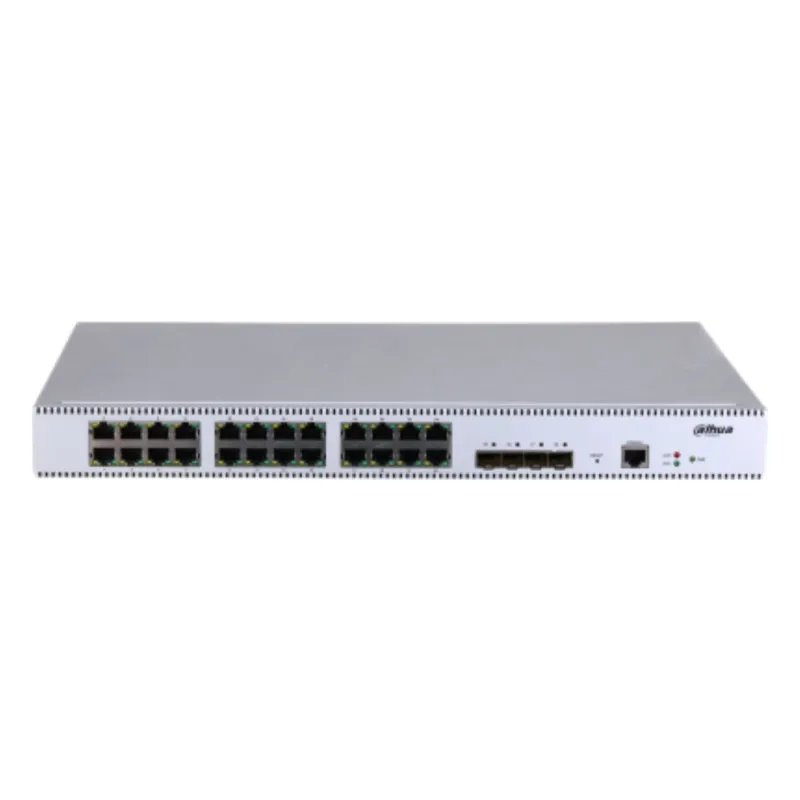

Network switch Dahua S5428-24GT4XF

Dahua

Network switch Dahua S5428-24GT4XF

  • Total Ports28
  • Port SpeedGigabit (10/100/1000 Mbps)
2 196.78 ₾

VAT included

  • In stock
2 196.78 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Dahua S5428-24GT4XF is a managed network switch with 28 ports in total. It has Gigabit ports running at 10/100/1000 Mbps and 4 SFP slots for fiber or other SFP modules.

The switch supports VLAN, link aggregation, QoS and IGMP Snooping, and it can be managed through SNMP, SSH and Telnet. It mounts in a rack or sits on a desk, and it has 2 built-in power supplies.

Key features:

  • 28 ports in total, including 4 × SFP slots, with Gigabit port speed (10/100/1000 Mbps)
  • Switching capacity of 128 Gbps, forwarding rate of 95.232 Mpps and a MAC table of 32K
  • VLAN (802.1Q) with up to 4094 VLANs, plus link aggregation, IGMP Snooping and QoS
  • STP/RSTP/ERPS support, loop prevention and port mirroring
  • Management over SNMP V1/V2C/V3, Telnet and SSH
  • Power input of 100–240 VAC, 50/60 Hz through 2 built-in power supplies, with power consumption of 48 W
  • Operating temperature of -20 … +55 °C (-4 … 131 °F); size of 308.3 × 44 × 440 mm (12.14 × 1.73 × 17.32 in); CE certified

Bought together

−5%

The kit is ready, adjust it as you need

PoE switch + 1 accessory

Kit · 2 113.50 ₾2 225.50 ₾

Kit −112 ₾

Specifications 25

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input

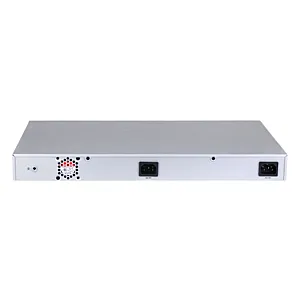

100–240 VAC, 50/60 Hz (2 built-in power supplies)
Power Consumption
48 W
Fanless
No

Ports & PoE

Total Ports
28
SFP ports
4
Port Speed
Gigabit (10/100/1000 Mbps)
SFP Slots
4 × SFP

Performance

Management
Managed
Switching Capacity
128 Gbps
Forwarding Rate
95.232 Mpps
MAC Table
32K

Features

VLAN (802.1Q)
Yes
Max VLANs
4094
STP / RSTP / MSTP
STP/RSTP/ERPS
Link Aggregation
Yes
IGMP Snooping
Yes
QoS
Yes
Port Mirroring
Yes
Loop Prevention
Yes
SNMP
SNMP V1/V2C/V3
SSH / Telnet
Telnet;
SSH

Compliance

Certifications
CE

Physical

Operating Temperature
-20 … +55 °C (-4 … 131 °F)
Mounting
Rack mount;
desktop mount
Dimensions
308.3 × 44 × 440 mm (12.14 × 1.73 × 17.32 in)
