Product code: #ALL-000227

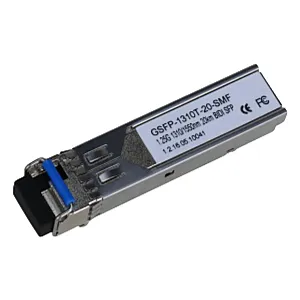

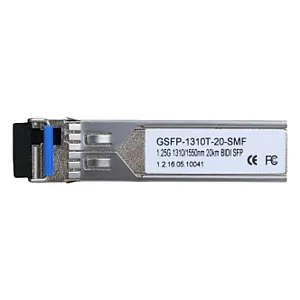

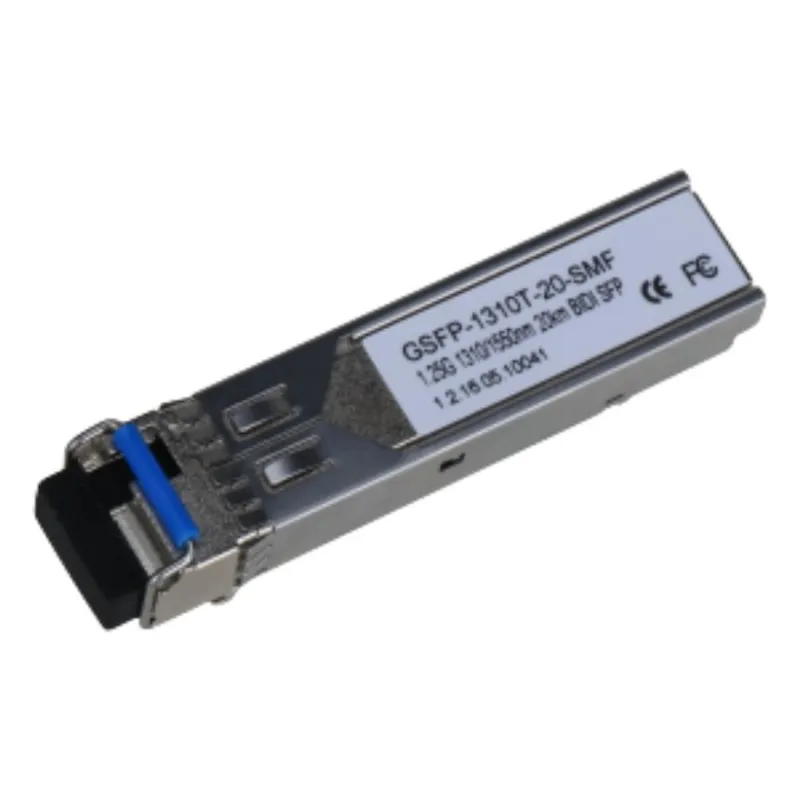

Module Dahua SFP-1310T-20-SMF

Dahua

Module Dahua SFP-1310T-20-SMF

  • Data Rate100Mbps
  • Fiber TypeSingle-mode
  • Max Distance20 km
77.81 ₾

VAT included

  • Out of stock

This model is not in stock at any branch right now.

Similar, in stock

From the same category, closest in specs and price

  • Dahua Module Dahua GSFP-1310T-20-SMF

    • Data Rate 1 Gbps, instead of 100Mbps
    • Dimensions 55.5 × 13.4 × 8.5 mm (2.19 × 0.528 × 0.335 in), instead of 56.5 × 13.4 × 8.5 mm (2.22 × 0.528 × 0.335 in)
    • Rest the same

    116.71 ₾38.90 ₾ more expensive

    32 in stock

Compare all four

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Related products

Description

The Dahua SFP-1310T-20-SMF is an SFP optical transceiver module with a data rate of 100Mbps. It connects over a single single-mode fiber through an LC connector and uses WDM BiDi technology, so transmit and receive signals share one strand.

The module transmits at 1310 nm and receives at 1550 nm, with a maximum link distance of 20 km. It operates in temperatures from -40 to +85 °C (-40 to 185 °F) and measures 56.5 × 13.4 × 8.5 mm (2.22 × 0.528 × 0.335 in).

Key features:

  • Data rate: 100Mbps
  • Connector type: LC
  • Fiber type: single-mode, single fiber
  • Link technology: WDM BiDi (single-fiber)
  • Wavelength: 1310 nm (TX), 1550 nm (RX)
  • Maximum distance: 20 km
  • Operating temperature: -40 to +85 °C (-40 to 185 °F)

Bought together

Tick what you need

0 products

Kit · 0 ₾

Tick at least 1 product

Specifications 10

Open the spec sheet PDF(opens in a new tab)

Performance

Data Rate
100Mbps

Optical

Connector Type
LC
Fiber Type
Single-mode
Wavelength TX
1310 nm
Wavelength RX
1550 nm
Max Distance
20 km
Fiber Core
Single fiber
Link Technology
WDM BiDi

Physical

Operating Temperature
-40 … +85 °C (-40 … 185 °F)
Dimensions
56.5 × 13.4 × 8.5 mm (2.22 × 0.528 × 0.335 in)
