Product code: #ALL-000636

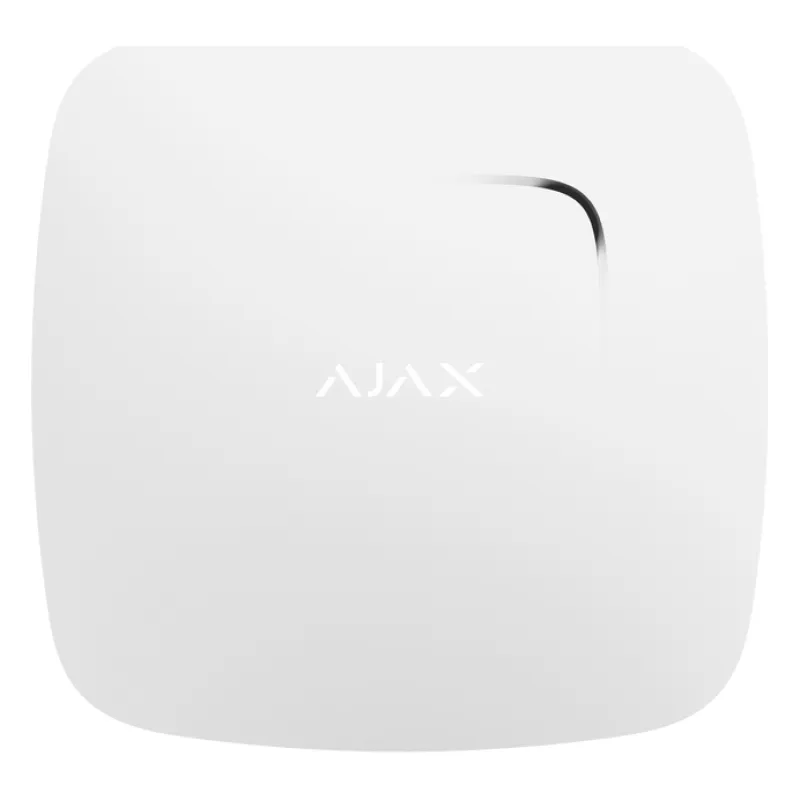

Smoke detector Ajax FireProtect (8EU) ASP White

Ajax

Smoke detector Ajax FireProtect (8EU) ASP White

182 ₾

VAT included

  • In stock
182 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Ajax FireProtect (8EU) ASP White is a wireless smoke detector that combines a photoelectric smoke sensor with a thermistor for heat detection. It communicates over the Jeweller wireless protocol and has a built-in siren with LED and sound indication.

The detector runs on 2 × CR2 main batteries with a CR2032 backup, with a battery life of up to 4 years. It is protected against tampering and forgery, and it detects loss of connection after 36 s.

Key features:

  • Detection: photoelectric smoke sensor and thermistor heat sensor
  • Heat alarm: triggers at temperatures above 140 °F, or when the temperature rises more than 86 °F in 30 minutes or less
  • Wireless: Jeweller protocol with a communication range of up to 1300 m (4265.1 ft), GFSK modulation and ERP of up to 20 mW
  • Security: block encryption with a dynamic key, device authentication and tamper protection
  • Siren: built-in, 85 dB at a distance of 9 ft
  • Power: 2 × CR2 main and CR2032 backup batteries, up to 4 years of battery life
  • Physical: 5.2″ × 5.2″ × 1.22″, 220 g (7.76 oz), IP40, operating temperature 0 … +65 °C (32 … 149 °F), humidity up to 80%

Specifications 27

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP40
Power Source
Battery (2 × CR2 main, CR2032 backup)

Overview

Detection Type
Photoelectric smoke sensor + thermistor (heat)
Wireless Protocol
Jeweller
Radio Frequency
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz
Wireless Range
1300 m (4265.1 ft)
Encryption
Block encryption featuring a dynamic key

Battery

Battery
2 × CR2 (main), CR2032 (backup)
Battery Life
up to 4 years

Physical

Operating Temperature
0 … +65 °C (32 … 149 °F)
Weight
220 g (7.76 oz)
Tamper Alarm
Yes

Full specification

Manufacturer data, 15 parameters

Communication

Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK

Sensitive elements

Sensitive Elements
smoke sensor heat sensor

Smoke detection

Sensitive element
photoelectric sensor

Dangerous Temperature Detection

Sensitive element
thermistor
High Temperature Alarm
at temperatures above 140 °F
Temperature Spike Alarm
when the temperature rises more than 86 °F in 30 minutes or less

Additional Features

Built-in siren
85 dB volume at a distance of 9 ft
Indication
LED;
sound

Sabotage Protection

Protection against spoofing
device authentication
Communication loss detection
after 36 s

Enclosure

Dimensions
5.2″ × 5.2″ × 1.22″
Operating Humidity
up to 80%
Colors
Black;
White

Additional information

Warranty
24 months
