Product code: #ALL-001963

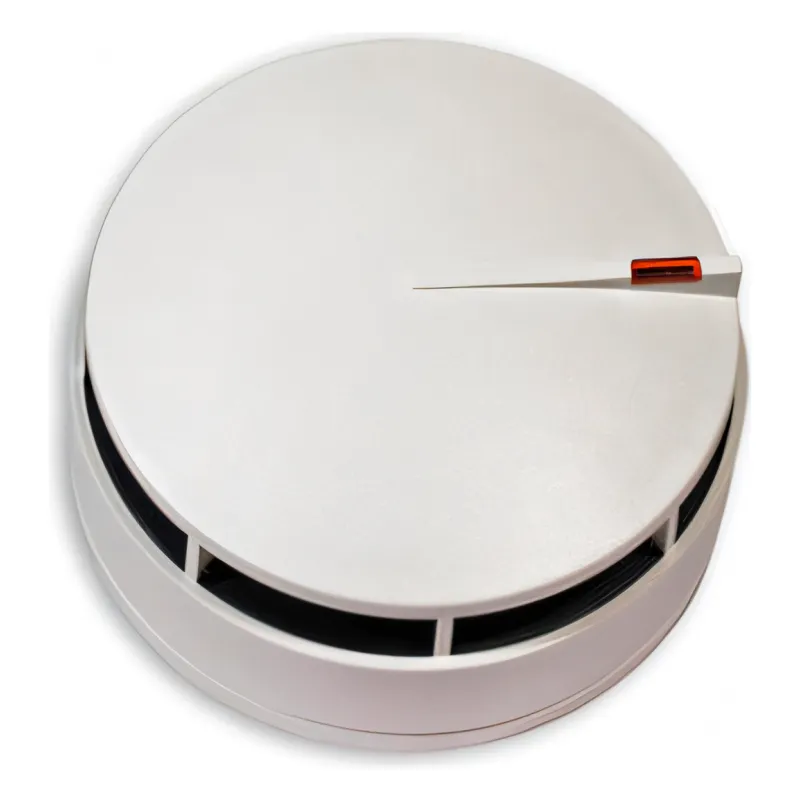

Smoke detector, Detnov, DOD-220A

Detnov

Smoke detector, Detnov, DOD-220A

98 ₾

VAT included

  • In stock
98 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Detnov DOD-220A is an addressable optical smoke detector for addressable fire alarm systems. It detects smoke using scattered light, based on the Tyndall effect.

The detector uses algorithms that compensate for dirtiness in the optical chamber to reduce false alarms. It complies with EN 54-7 and carries the certification 0370-CPR-0881. It mounts on a Z-200 base.

Key features:

  • Detection technology: optical smoke (scattered light, Tyndall effect)
  • System type: addressable
  • Optical chamber dirtiness compensation algorithms for false alarm reduction
  • Operating voltage: 22–38 V DC
  • Standby current: < 300 µA; alarm current: < 11 mA
  • Operating temperature: -10 … +70 °C (14 … 158 °F)
  • Protection rating IP40, Z-200 base mounting, EN 54-7 standard, certification 0370-CPR-0881

Specifications 13

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP40
Operating Voltage
22–38 V DC
Standby Current
< 300 µA
Alarm Current
< 11 mA

Overview

Fire Device Type
Addressable optical smoke detector
System Type
Addressable

Detection

Detector Technology
Optical Smoke
Detection Principle
Optical smoke (scattered light, Tyndall effect)
False Alarm Reduction
Optical chamber dirtiness compensation algorithms

Compliance

Standards
EN 54-7
Third-party Certification
0370-CPR-0881

Physical

Operating Temperature
-10 … +70 °C (14 … 158 °F)
Mounting
Z-200 base
