Product code: #ALL-001973

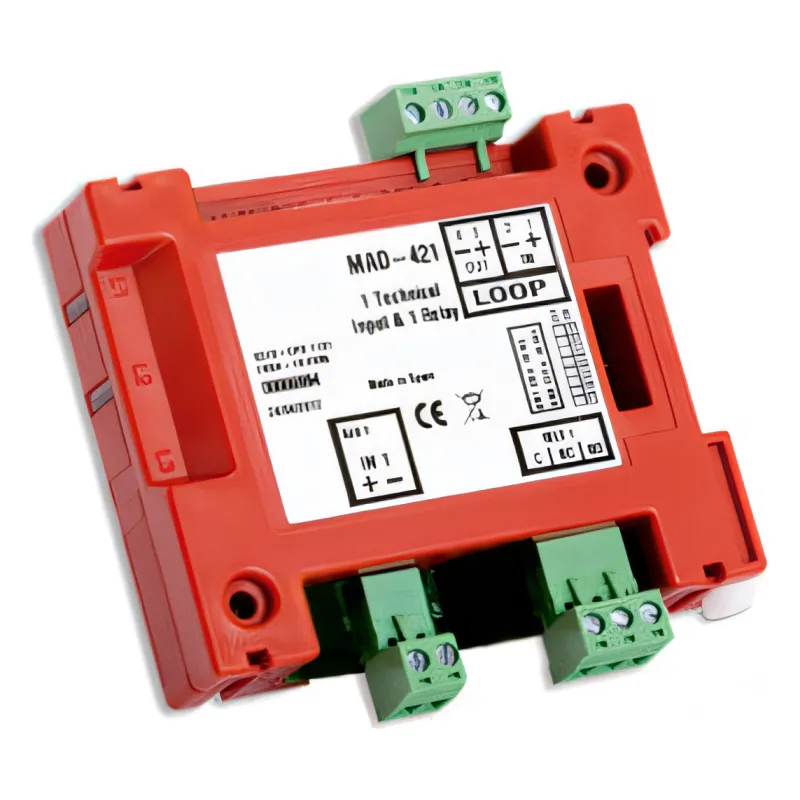

Addressable module, Detnov, MAD-421-I

Detnov

Addressable module, Detnov, MAD-421-I

  • IP / IK RatingIP40
  • Fire Device TypeAddressable module, 1 technical input and 1 relay output, with isolator
187 ₾

VAT included

  • In stock
187 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Detnov MAD-421-I is an addressable module for addressable fire alarm systems. It provides 1 technical input and 1 relay output, and it includes an isolator.

The module operates on 22–38 V DC and has a LED status indicator. It can be mounted on a wall with screws or on a DIN rail, and it measures 100 × 100 × 23 mm (3.94 × 3.94 × 0.906 in).

Key features:

  • Addressable module with 1 technical input and 1 relay output, with isolator
  • Operating voltage: 22–38 V DC
  • Standby current: < 300 µA; alarm current: < 3 mA
  • Complies with EN 54-18 and EN 54-17, certificate 0370-CPR-1863
  • IP40 protection rating
  • Operating temperature: -10 … +70 °C (14 … 158 °F)
  • Wall (screws) or DIN rail mounting

Specifications 12

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP40
Operating Voltage
22–38 V DC
Standby Current
< 300 µA
Alarm Current
< 3 mA

Overview

Fire Device Type
Addressable module, 1 technical input and 1 relay output, with isolator
System Type
Addressable

Detection

LED Indicator
LED status indicator

Compliance

Standards
EN 54-18, EN 54-17
Third-party Certification
0370-CPR-1863

Physical

Operating Temperature
-10 … +70 °C (14 … 158 °F)
Mounting
Wall (screws) or DIN rail
Dimensions
100 × 100 × 23 mm (3.94 × 3.94 × 0.906 in)
