Product code: #ALL-002411

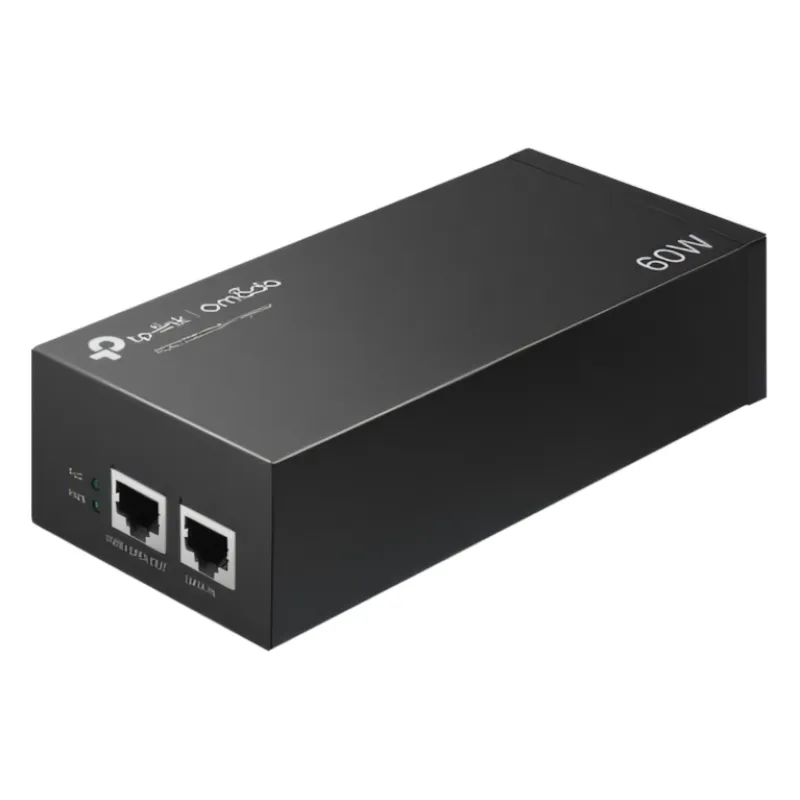

POE injector - POE170S, 100m, 60w

Omada

POE injector - POE170S, 100m, 60w

  • PoE Output Power60 W
237 ₾

VAT included

  • In stock
237 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Omada POE170S is a PoE injector that adds power to an Ethernet connection, so a powered device can receive data and power over a single cable. It has 1 RJ45 data-in port and 1 RJ45 power+data-out port, and it supports the 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++) standards with a PoE output of up to 60 W.

The injector works from an AC socket with an input of 100-240 V at 50/60 Hz. It supports wall-mounting and desktop installation, and it measures 155 × 42 × 70 mm (6.1 × 1.65 × 2.76 in).

Key features:

  • Supports 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++), with a PoE output of up to 60 W
  • Auto-Sensing Algorithm provides power to 802.3af/at/bt* PDs and determines the necessary power requirements automatically
  • 10/100/1000Mbps data speed with a maximum cable length of 100 m (328.1 ft)
  • 1000BASE-T transmission over UTP category 5, 5e and 6 cables, up to 100 m
  • Plug-and-Play operation with Power and PoE LED indicators
  • Wall-mounting and desktop installation supported
  • FCC, CE and RoHS certified, with an operating temperature of 0°C to 45°C (32°F to 113°F)

Specifications 20

Open the spec sheet PDF(opens in a new tab)

Ports & PoE

PoE Standard
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
PoE Output Power
60 W
Data Rate
10/100/1000Mbps
Max Cable Length
100 m (328.1 ft)

Input

Input Voltage Range
100-240 V
Input Connection
AC socket
Input Frequency
50/60 Hz

Physical

Mounting
Wall-mounting and desktop installation supported
Dimensions
155 × 42 × 70 mm (6.1 × 1.65 × 2.76 in)

Full specification

Manufacturer data, 11 parameters

Hardware Features

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Interface
1× 10/100/1000Mbps RJ45 data-in port;
1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W);
1× AC socket
Network Media
10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m);
100BASE-TX: UTP category 5, 5e cables (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m);
1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Max. Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A;
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD;
Auto-determine the necessary power requirements;
Wall-mounting and desktop installation supported;
Plug-and-Play
LED
Power;
PoE

Others

Certification
FCC, CE, RoHS
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Humidity
10% to 90%RH non-condensing
Storage Humidity
5% to 90%RH non-condensing
