Product code: #ALL-002415

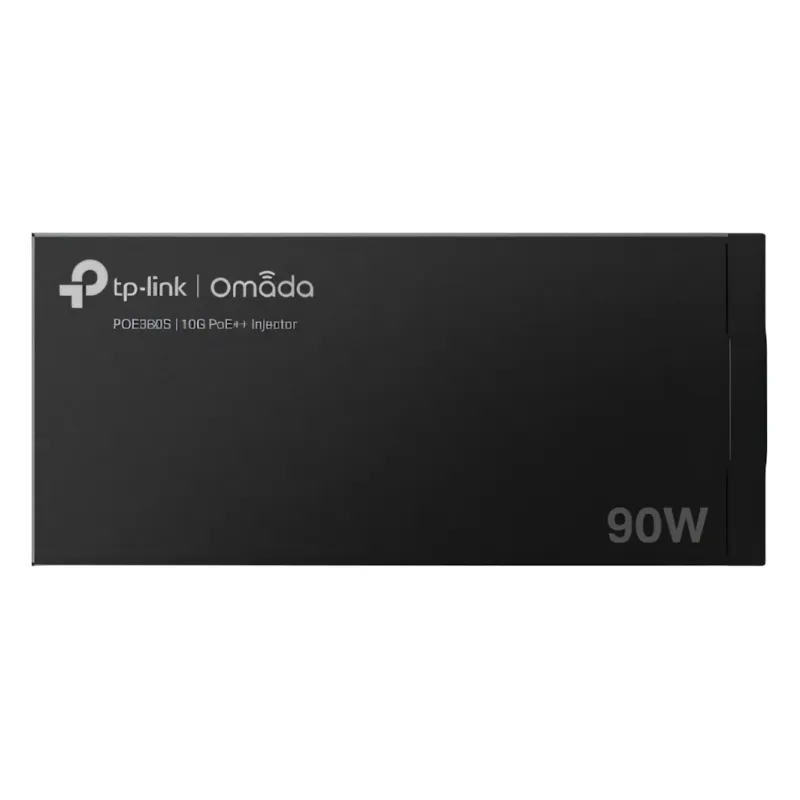

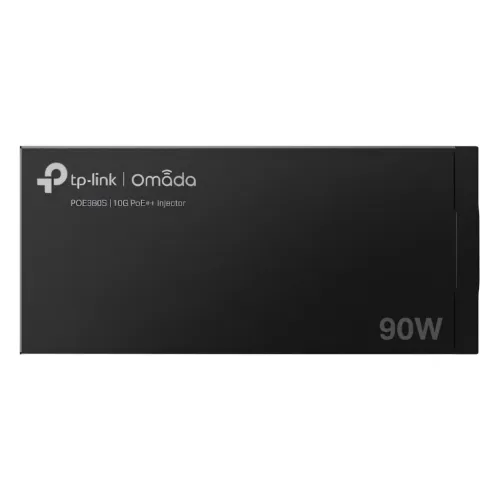

POE injector - POE380S, 100m, 90w

Omada

POE injector - POE380S, 100m, 90w

  • PoE Output Power90 W
351 ₾

VAT included

  • In stock
351 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Omada POE380S is a PoE injector that adds power to an Ethernet connection. It takes data in through one RJ45 port and sends power and data out through a second RJ45 port, with a maximum output of 90 W. It supports the 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++) standards.

The injector connects to an AC socket and accepts 100-240 V at 50/60 Hz. It can be placed on a desk or mounted on a wall, and it works as Plug-and-Play. Its Auto-Sensing Algorithm determines the power requirements of the connected device automatically.

Key features:

  • PoE standards: 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++), with a maximum PoE output of 90 W
  • Data rates of 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps on the RJ45 data-in port and the RJ45 power+data-out port
  • Maximum cable length of 100 m (328.1 ft)
  • Auto-Sensing Algorithm provides power to 802.3af/at/bt* PD and determines the necessary power requirements automatically
  • Input of 100-240 V, 50/60 Hz, 1.6A through an AC socket
  • Wall-mounting and desktop installation, with dimensions of 155 × 42 × 70 mm (6.1 × 1.65 × 2.76 in)
  • Power and PoE LED indicators; FCC, CE and RoHS certifications; operating temperature of 0°C to 45°C (32°F to 113°F)

Specifications 20

Open the spec sheet PDF(opens in a new tab)

Ports & PoE

PoE Standard
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
PoE Output Power
90 W
Data Rate
10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps
Max Cable Length
100 m (328.1 ft)

Input

Input Voltage Range
100-240 V
Input Connection
AC socket
Input Frequency
50/60 Hz

Physical

Mounting
Wall-mounting and desktop installation supported
Dimensions
155 × 42 × 70 mm (6.1 × 1.65 × 2.76 in)

Full specification

Manufacturer data, 11 parameters

Hardware Features

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Interface
1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port;
1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W);
1× AC socket
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m);
100BASE-TX: UTP category 5, 5e cable (maximum 100 m);
EIA/TIA-568 100Ω STP (maximum 100 m);
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Max. Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A;
Output: Auto-determine the necessary power requirements (max. 90 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD;
Auto-determine the necessary power requirements;
Wall-mounting and desktop installation;
Plug-and-Play
LED
Power / PoE

Others

Certification
FCC, CE, RoHS
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Humidity
10% to 90%RH non-condensing
Storage Humidity
5% to 90%RH non-condensing
