Product code: #ALL-002973

PoE სვიჩი - 4x100 მბ/წმ PoE (at/af) პორტი, 2x100 მბ/წმ, არამართვადი

Uniview · NSW2020-6T-POE-IN-V2

PoE სვიჩი - 4x100 მბ/წმ PoE (at/af) პორტი, 2x100 მბ/წმ, არამართვადი

109.35 ₾

VAT included

  • In stock
109.35 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

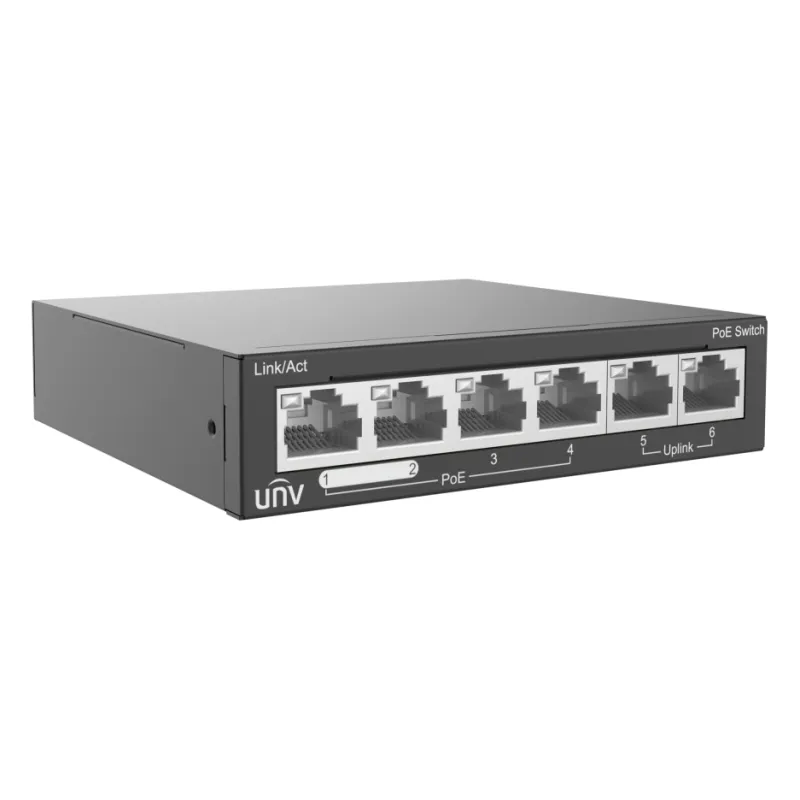

The Uniview NSW2020-6T-POE-IN-V2 is an unmanaged PoE switch with 6 network ports of 100Mbps (RJ45), 4 of which are PoE ports. The PoE ports follow IEEE 802.3at and IEEE 802.3af and support ModeA (1236) and ModeB (4578).

The switch has a total PoE capacity of 65W, with up to 30W on a single port. It runs without cooling fans (0 fans) and is powered from AC 100 to 240V, 50/60Hz. It has two operating modes: a Default mode and an Extend (surveillance) mode.

Key features:

  • 6×100Mbps RJ45 network ports, including 4 PoE ports
  • PoE standards IEEE 802.3at and IEEE 802.3af, with max PoE capacity of 65W and 30W per single port
  • Switching capacity of 1.2 Gbps, forwarding rate of 0.90Mpps, 2K MAC table and 570K bit packet buffer
  • Default mode lets all ports communicate with each other; Extend mode allows transmission distance up to 250 meters, with downlink ports communicating only with uplink ports
  • Power and LINK/ACT indicators; the Power indicator turns yellow when total PoE power is higher than 85% of the device's total power
  • Operating temperature 0°C to 45°C (32°F to 113°F) and humidity 10% to 90% (noncondensing)
  • Dimensions 16913240mm, max power 75W, NDAA compliance supported

Specifications 19

Open the spec sheet PDF(opens in a new tab)

Full specification

Manufacturer data, 19 parameters

Hardware Specification

Ports Type
6×100Mbps network ports (RJ45), including 4 PoE ports
Switching Capacity
1.2 Gbps
Packet Buffer
570K bit
Forwarding Performance
0.90Mpps
Power Supply
AC: 100 to 240V, 50/60Hz
MAC
2K
PoE Standard
IEEE 802.3 at, IEEE 802.3af
PoE Mode
ModeA (1236), ModeB (4578)
Max. PoE Power
Max capacity:65W;
Max capacity for single port: 30W
Priority Ports
1 to 2
Standards
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans
0
Max. Power
75W
Operating Temperature
0°C to 45°C (32°F to 113°F)
Operating Humidity
10% to 90% (noncondensing)
Indicator
Power:;
Off: Abnormal power input;
Green: Normal power input;
Yellow: The total PoE power is higher than 85% of the total power of the device;
No PoE Indicator;
No PoE-Max Indicator;
LINK/ACT：;
Off: No link;
Steady on: Linked;
Flashing: Transmitting data
Dimensions (W × D × H)
169*132*40mm
Working Mode
Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports

Compliance

NDAA Compliant
