Product code: #ALL-002996

PoE სვიჩი - 8x100 მბ/წმ PoE (at/af) პორტი, 2x100 მბ/წმ, არამართვადი

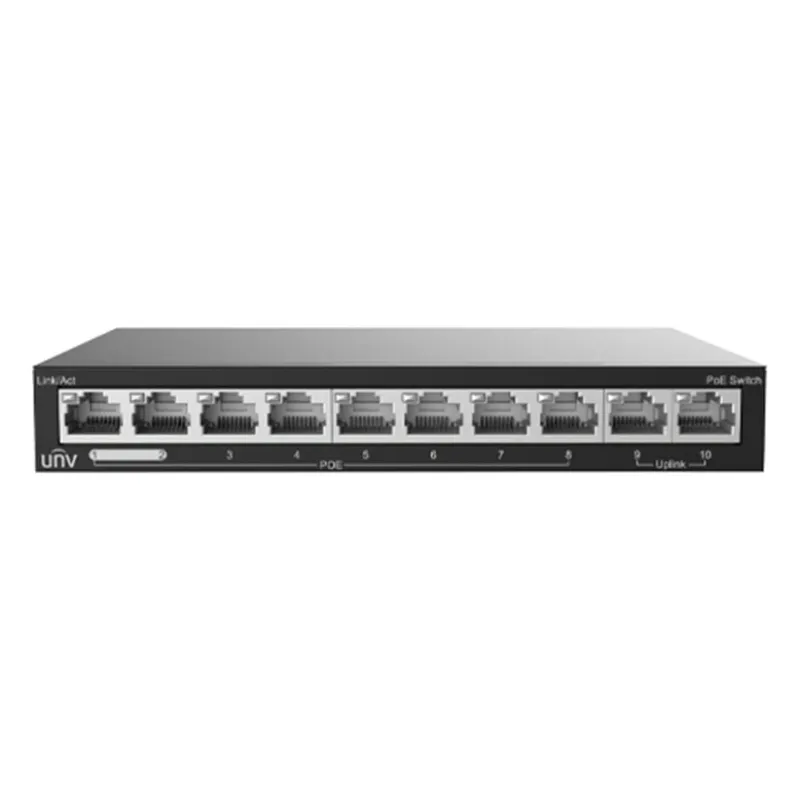

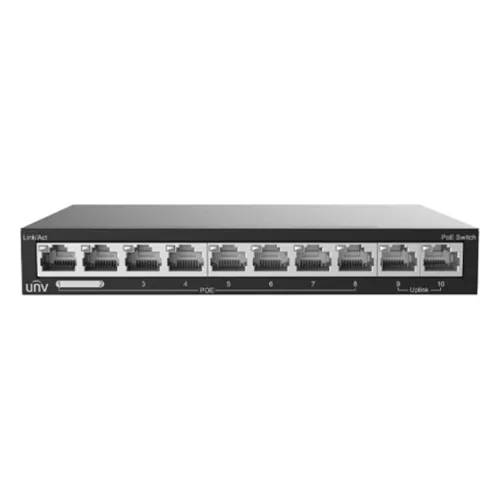

Uniview · NSW2020-10T-POE-IN

PoE სვიჩი - 8x100 მბ/წმ PoE (at/af) პორტი, 2x100 მბ/წმ, არამართვადი

  • Total Ports10
  • Port SpeedGigabit (10/100/1000 Mbps)
  • PoE Budget88 W
153.09 ₾

VAT included

153.09 ₾

VAT included

Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

PoE budget

Powers 8 cameras at 6.5 W each

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NSW2020-10T-POE-IN is an unmanaged PoE switch with 10 RJ45 network ports at 100 Mbps. 8 of these ports supply power over Ethernet according to 802.3at/af, so connected PoE devices receive power through the same cable as data.

The switch has an 88 W PoE budget, with a maximum of 30 W on a single port, and is powered by DC 48/51V. It has no cooling fans. It supports VLAN (802.1Q) and has an EXTEND (Surveillance) mode for transmission distances up to 250 meters.

Key features:

  • 10 RJ45 network ports at 100 Mbps, including 8 PoE ports
  • PoE 802.3at/af in ModeB (4578), with an 88 W total budget and up to 30 W per port
  • Default (Normal) mode and EXTEND (Surveillance) mode with transmission distance up to 250 meters
  • VLAN support (802.1Q), 1K MAC table and 448K bit packet buffer
  • Bandwidth of 2 Gbps and forwarding rate of 1.49 Mpps
  • Fanless design, DC 48/51V input, 65 W power consumption, NDAA compliance supported
  • Operating temperature 0 … +40 °C (32 … 104 °F), dimensions 171 × 25.5 × 101 mm (6.73 × 1 × 3.98 in), weight 0.29 KG

Specifications 34

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
DC 48/51V
Power Consumption
65 W
Fanless
Yes

Ports & PoE

PoE Ports
8
Total Ports
10
Port Speed
Gigabit (10/100/1000 Mbps)
PoE Standard
802.3af (PoE)
PoE Budget
88 W
Long-range PoE
Yes

Performance

Management
Unmanaged
Switching Capacity
2 Gbps
Forwarding Rate
1.49 Mpps
MAC Table
1K

Features

VLAN (802.1Q)
Yes

Physical

Operating Temperature
0 … +40 °C (32 … 104 °F)
Dimensions
171 × 25.5 × 101 mm (6.73 × 1 × 3.98 in)

Full specification

Manufacturer data, 18 parameters

Hardware Specification

Ports Type
10×100Mbps network ports (RJ45), including 8 PoE ports
Packet Buffer
448K bit
MAC
1K
PoE Mode
ModeB (4578)
Max. PoE Power
Max capacity:88W;
Max capacity for single port: 30W
Priority Ports
1 to 2
Standards
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans
0
Max. Power
94W
Operating Humidity
10% to 90% (noncondensing)
Indicator
POWER:;
Steady on: AC input is normal;
Off: No AC input;
No PoE Indicator;
PoE-MAX：;
off ：The POE power supply power of the whole machine is less than 80% of the specification;
Steady on : The POE power supply power of the whole machine is greater than 85% of the specification;
LINK/ACT：;
Off: No link;
Steady on: Linked;
Flashing: Transmitting data
Working Mode
Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters

Compliance

NDAA Compliant
Support

Specifications

Model
NSW2020-10T-POE-IN
Ports
10×100Mbps network ports;
(RJ45), including 8 PoE ports
Weight
0.29KG
PoE
802.3at/af （4/5+，7/8-）
Storage Humidity
5%～90% (noncondensing)
