Product code: #ALL-002118

Siren, outdoor mounting, red, wireless DS-PS1-E-WE, Red, 868MHz AX PRO Series

Hikvision

Siren, outdoor mounting, red, wireless DS-PS1-E-WE, Red, 868MHz AX PRO Series

239 ₾

VAT included

  • In stock
239 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

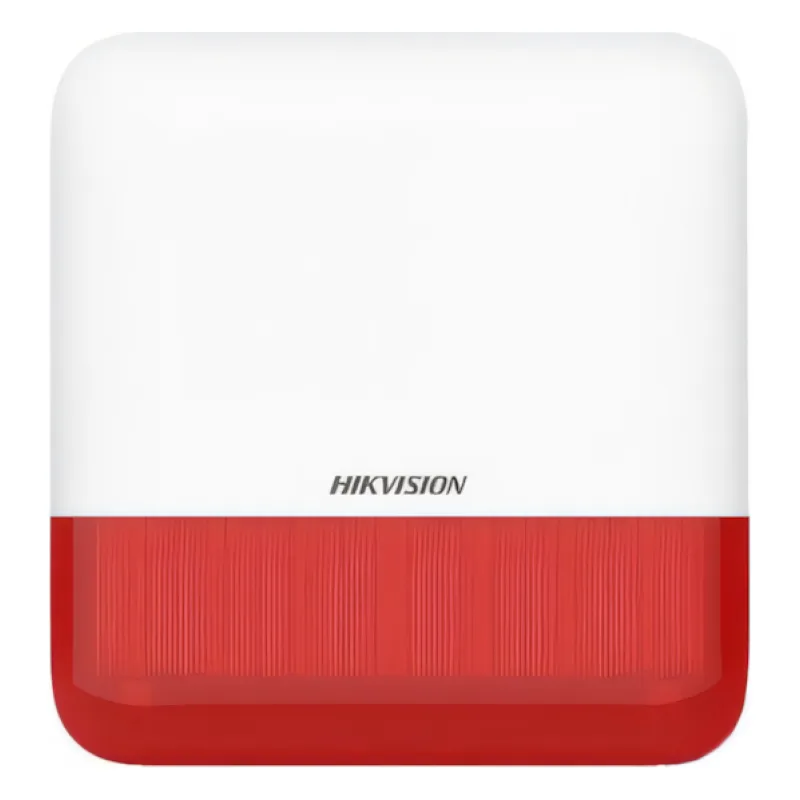

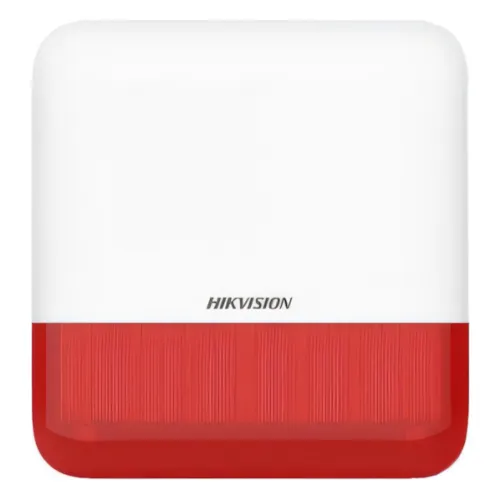

The Hikvision DS-PS1-E-WE is a red wireless external sounder from the AX PRO Series. It communicates over 868 MHz using two-way wireless with 2GFSK modulation, so it needs no signal cable to the rest of the system.

The housing is made of PC+ABS and mounts on a wall. It is rated IP65 and works in temperatures from -20 to +60 °C. It runs on a battery by default and can also be powered from 12 VDC.

Key features:

  • Two-way wireless protocol with 2GFSK modulation on 868 MHz
  • Wireless range of 1600 m (5249.3 ft), or 1.6 km in an open area
  • AES-128 encryption
  • Battery power by default or 12 VDC, with battery life of up to 3 years in standby
  • IP65 protection and operating temperature of -20 … +60 °C (-4 … 140 °F)
  • Tamper protection and wall mounting
  • Dimensions of 190 × 200 × 47.3 mm (7.48 × 7.87 × 1.86 in) and weight of 606.5 g (21.39 oz)

Specifications 20

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP65
Power Source
Battery (default) or 12 VDC

Overview

Alarm Device Type
External sounder (wireless)
Wireless Protocol
Two-way wireless, 2GFSK
Radio Frequency
868 MHz
Wireless Range
1600 m (5249.3 ft)
Encryption
AES-128

Battery

Battery Life
Up to 3 years (standby time)

Physical

Operating Temperature
-20 … +60 °C (-4 … 140 °F)
Mounting
Wall-mounting
Dimensions
190 × 200 × 47.3 mm (7.48 × 7.87 × 1.86 in)
Weight
606.5 g (21.39 oz)
Tamper Alarm
Yes

Full specification

Manufacturer data, 7 parameters

Electrical Characteristics

Battery Type
Battery (default power supply method) or 12 VDC
Power Supply
Battery (default power supply method) or 12 VDC
Operating Humidity
10% to 90% (no condensing)

Wireless Transmission

RF Modulation
2GFSK
RF Distance
1.6 km (open area)

General

IP rate
IP65
Shell Material
PC+ABS
