Product code: #ALL-004032

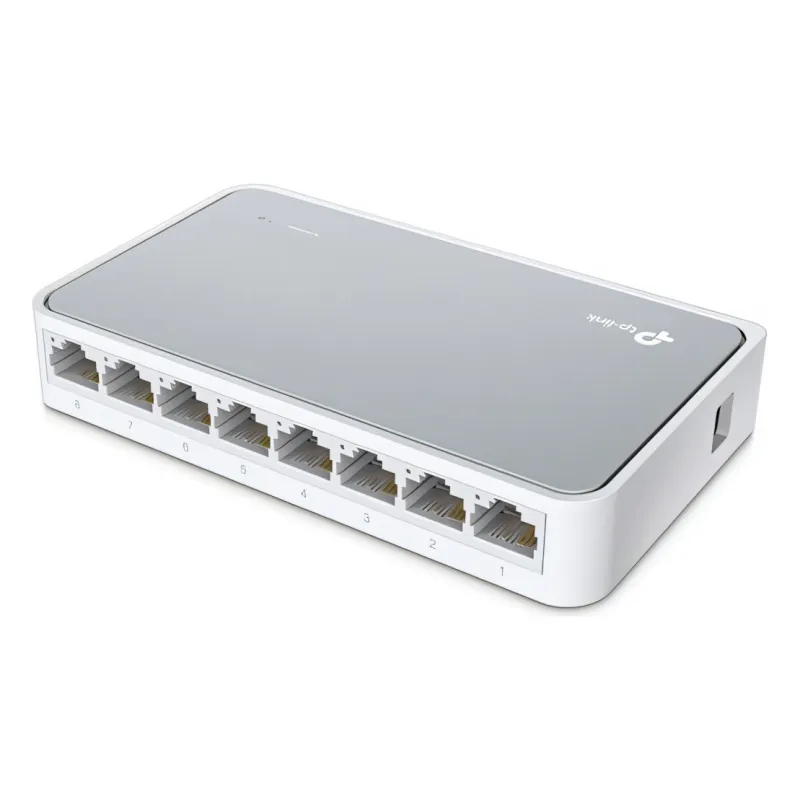

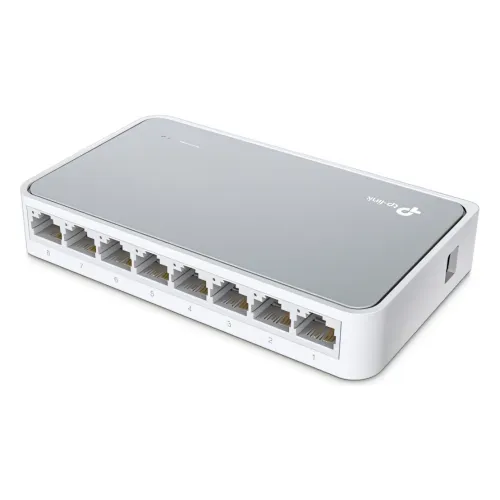

TP-Link, TL-SF1008D, 8-port 10/100M mini Desktop Switch, 8 10/100M RJ45 ports, Plastic case

TP-Link

TP-Link, TL-SF1008D, 8-port 10/100M mini Desktop Switch, 8 10/100M RJ45 ports, Plastic case

  • Total Ports8
  • Port Speed10/100 Mbps
30 ₾

VAT included

  • In stock
30 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The TP-Link TL-SF1008D is an 8-port 10/100M mini desktop switch in a plastic case. It connects wired devices over 8 RJ45 ports, each running at 10/100 Mbps, and has a total switching capacity of 1.6 Gbps.

The switch is unmanaged and is placed on a desk. It is powered through an external power adapter and has no fan. Its LED indicators show power and the status of each of the 8 ports.

Key features:

  • 8 RJ45 ports at 10/100 Mbps with Auto-Negotiation and Auto-MDI/MDIX
  • 1.6 Gbps switching capacity and 768Kb buffer size
  • Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x, with CSMA/CD and Store and Forward transmission
  • 802.3x Flow Control, Back Pressure and Green Technology
  • Fanless design with 2.05 W power consumption
  • External power adapter, input 100-240VAC, 50/60Hz, output 5 VDC / 0.6 A
  • Dimensions of 134.5 × 22.5 × 79 mm; operating temperature of 0 … +40 °C; CE and FCC certified

Specifications 26

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
External Power Adapter (Output: 5 VDC / 0.6 A)
Power Consumption
2.05 W
Fanless
Yes

Ports & PoE

Total Ports
8
Port Speed
10/100 Mbps

Performance

Switching Capacity
1.6 Gbps

Compliance

Certifications
CE, FCC

Physical

Form Factor / Chassis
Desktop
Operating Temperature
0 … +40 °C (32 … 104 °F)
Mounting
Desktop
Dimensions
134.5 × 22.5 × 79 mm (5.3 × 0.886 × 3.11 in)

Full specification

Manufacturer data, 15 parameters

Hardware Features

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x;
CSMA/CD
Interface
8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
100-240VAC, 50/60Hz
LED
Power, 1, 2, 3, 4, 5, 6, 7, 8
Buffer Size
768Kb
Data Rates
10/100Mbps at Half Duplex ;;
20/200Mbps at Full Duplex
Max Heat Dissipation
6.99BTU/h

Software Features

Advanced Features
802.3X Flow Control, Back Pressure
Transmission Method
Store and Forward

Others

Storage Temperature
-40℃~60℃ (-40℉~140℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing

Specifications

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Advanced Functions
Green Technology, 802.3x Flow Control
