Product code: #ALL-004030

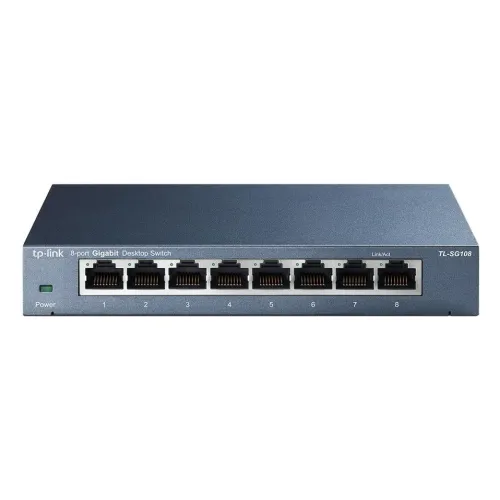

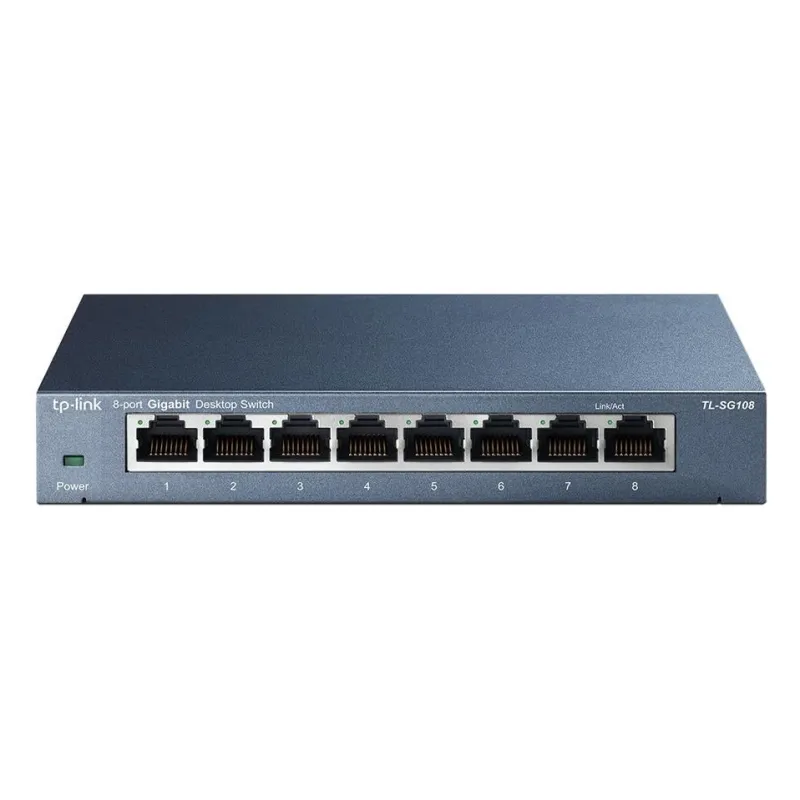

TP-Link, TL-SG108, 8-Port Gigabit 10/100/1000Mbps Desktop Switch

TP-Link

TP-Link, TL-SG108, 8-Port Gigabit 10/100/1000Mbps Desktop Switch

  • Total Ports8
  • Port SpeedGigabit (10/100/1000 Mbps)
80 ₾

VAT included

  • In stock
80 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The TP-Link TL-SG108 is an unmanaged 8-port Gigabit desktop switch. Each of its 8 ports runs at 10/100/1000 Mbps and supports Auto-Negotiation and Auto-MDI/MDIX. It has a switching capacity of 16 Gbps and a forwarding rate of 11.9 Mpps.

The switch uses the Store and Forward transmission method and has a 4K MAC address table and a 1.5 Mb packet buffer. It supports 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping and Loop Prevention. It is fanless and powered by an external adapter. It can be placed on a desk or mounted on a wall.

Key features:

  • 8 ports at 10/100/1000 Mbps with Auto-Negotiation and Auto-MDI/MDIX
  • 16 Gbps switching capacity, 11.9 Mpps forwarding rate, 4K MAC table, 1.5 Mb packet buffer and 16 KB Jumbo Frame support
  • QoS (802.1p/DSCP), IGMP Snooping, 802.3X Flow Control and Loop Prevention
  • Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.1p
  • Fanless design with 4.5 W power consumption and Green Technology
  • System Power LED and a Link/Act LED for each port, built into each RJ-45 port
  • Desktop or wall mounting, size 158 × 25 × 101 mm (6.22 × 0.984 × 3.98 in), operating temperature 0 … +40 °C (32 … 104 °F)

Specifications 30

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
External Adapter (output: 9VDC/0.6A)
Power Consumption
4.5 W

Ports & PoE

Total Ports
8
Port Speed
Gigabit (10/100/1000 Mbps)

Performance

Management
Unmanaged
Switching Capacity
16 Gbps
Forwarding Rate
11.9 Mpps
MAC Table
4K

Features

IGMP Snooping
Yes
QoS
Yes

Compliance

Certifications
CE, FCC

Physical

Form Factor / Chassis
Desktop
Operating Temperature
0 … +40 °C (32 … 104 °F)
Mounting
Desktop / Wall
Dimensions
158 × 25 × 101 mm (6.22 × 0.984 × 3.98 in)

Full specification

Manufacturer data, 15 parameters

Hardware Features

Standards and Protocols
IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
Interface
8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)
LED
System Power;
Link/Act indicators per port built into each RJ-45 port
Max Heat Dissipation
10.79 BTU/h

Performance

Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB

Software Features

Advanced Features
Green Technology;
802.3X Flow Control;
802.1p/DSCP QoS;
IGMP Snooping;
Loop Prevention
Transmission Method
Store and Forward

Others

Storage Temperature
-40°C~70°C (-40°F~158°F)
Operating Humidity
10% ~ 90%, non-condensing
Storage Humidity
5%~90% non-condensing

Features & Performance

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Forwarding mode
Store and forward
