Product code: #ALL-003265

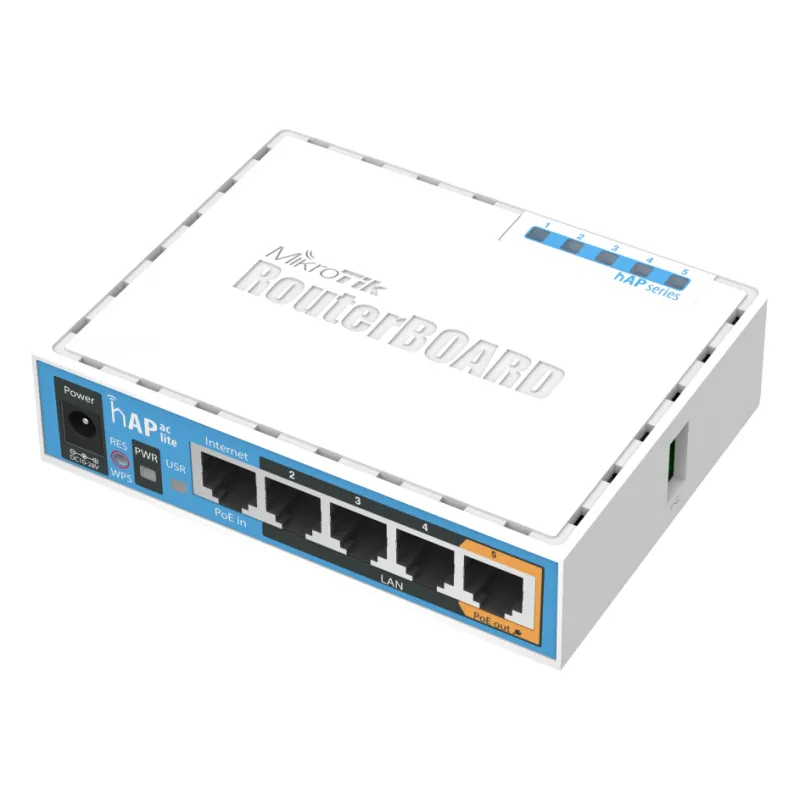

WiFi router - hAP ac lite, MikroTik

MikroTik · RB952Ui-5ac2nD

WiFi router - hAP ac lite, MikroTik

  • Wi-Fi GenerationWi-Fi 5 (802.11ac)
  • Total Ports5
  • Port Speed10/100 Mbps
191.95 ₾

VAT included

  • In stock
191.95 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The MikroTik hAP ac lite (model RB952Ui-5ac2nD) is a dual-band Wi-Fi router that supports Wi-Fi 5 (802.11ac). It works on the 2.4 GHz and 5 GHz frequencies and runs RouterOS with a license level of 4.

The router has 5 Ethernet ports at 10/100 Mbps, one of which supports passive PoE, and a USB 2.0 Type A full size port rated at 1 A. It is powered through a jack or passive PoE with an input of 8 V - 30 V, and measures 113 × 89 × 28 mm (4.45 × 3.5 × 1.1 in).

Key features:

  • Wi-Fi 5 (802.11ac) with support for 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac, on 2.4 GHz and 5 GHz
  • Transmitter power of 22 dBm on 2.4 GHz and 23 dBm on 5 GHz, with antenna gain of 1.5 dBi on 2.4 GHz and 2 dBi on 5 GHz
  • 5 Ethernet ports at 10/100 Mbps, including 1 passive PoE port
  • Power input of 8 V - 30 V via jack or passive PoE, with power consumption of 7 W
  • QCA9531 CPU with 1 core at 650 MHz, 64 MB RAM and 16 MB Flash memory
  • USB 2.0 Type A full size port, 1 A
  • RouterOS operating system with license level 4

Specifications 40

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Generation
Wi-Fi 5 (802.11ac)
Wi-Fi Standard
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Wi-Fi Frequency Bands
2.4 GHz, 5 GHz
Max. Antenna Gain
2 dBi2.4 GHz: 1.5 dBi;
5 GHz: 2 dBi
Transmit Power
2.4 GHz: 22 dBm, 5 GHz: 23 dBm

Power & Protection

Power Input
8 V - 30 V (Jack or Passive PoE)
Power Consumption
7 W

Ports & PoE

PoE Ports
1
Total Ports
5
Port Speed
10/100 Mbps
PoE Standard
Passive PoE

Physical

Dimensions
113 × 89 × 28 mm (4.45 × 3.5 × 1.1 in)

Full specification

Manufacturer data, 28 parameters

Specifications

Product code
RB952Ui-5ac2nD (International);
RB952Ui-5ac2nD-US (USA)
CPU Nominal Frequency
650 MHz
CPU Core Count
1
Size of RAM
64 MB
Storage Type
Flash
Storage Size
16 MB
10/100 Ethernet Ports
5
Wireless bands
5 GHz radio;
2.4 GHz radio
Protocols
802.11a/n/ac;
802.11b/g/n
Chains
Single-chain;
Dual-chain
Wireless chip model
QCA9887;
QCA9531
Antenna Beam Width
360°
PoE in
Yes
Extras
USB 2.0 Type A full size port, 1 A
License Level
4
Operating System
RouterOS
CPU
QCA9531

Wireless specifications

1MBit/s (2.4 GHz)
Tx (dBm) 22;
Rx (dBm) -96
11MBit/s (2.4 GHz)
Tx (dBm) 22;
Rx (dBm) -89
6MBit/s (2.4 GHz)
Tx (dBm) 20;
Rx (dBm) -93
54MBit/s (2.4 GHz)
Tx (dBm) 18;
Rx (dBm) -74
MCS0 (2.4 GHz)
Tx (dBm) 20;
Rx (dBm) -93
MCS7 (2.4 GHz)
Tx (dBm) 16;
Rx (dBm) -71
6MBit/s (5 GHz)
Tx (dBm) 23;
Rx (dBm) -93
54MBit/s (5 GHz)
Tx (dBm) 20;
Rx (dBm) -75
MCS0 (5 GHz)
Tx (dBm) 23;
Rx (dBm) -93
MCS7 (5 GHz)
Tx (dBm) 19;
Rx (dBm) -71
MCS9 (5 GHz)
Tx (dBm) 16;
Rx (dBm) -63
