Product code: #ALL-003290

WiFi router - hAP ac³, MikroTik

MikroTik · RBD53iG-5HacD2HnD

WiFi router - hAP ac³, MikroTik

  • Wi-Fi GenerationWi-Fi 5 (802.11ac)
  • Total Ports5
  • Port SpeedGigabit (10/100/1000 Mbps)
364.91 ₾

VAT included

  • In stock
364.91 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

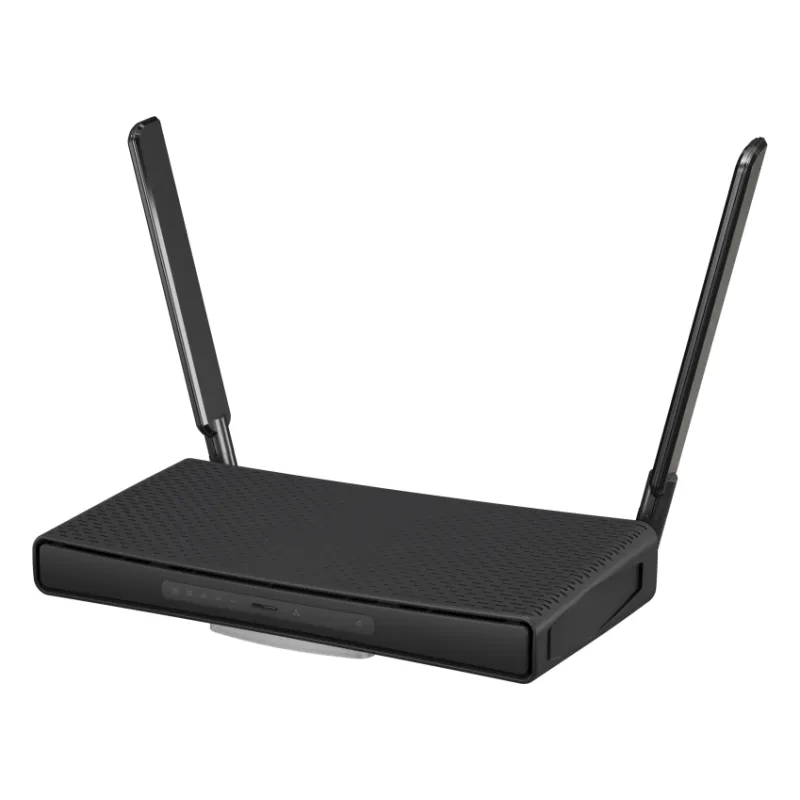

The MikroTik hAP ac³ (model RBD53iG-5HacD2HnD) is a Wi-Fi router that works in the 2.4 GHz and 5 GHz bands and follows Wi-Fi 5 (802.11ac). It runs RouterOS with License level 4 and is built around a 4 core IPQ-4019 CPU at 716 MHz, with 256 MB of RAM and 128 MB of NAND.

The router has 5 Gigabit Ethernet ports (10/100/1000 Mbps), 1 of which provides passive PoE-out, and 1 USB port type A. It can be placed vertically, horizontally or on a wall, and it operates from -40 to +70 °C (-40 to 158 °F).

Key features:

  • Wi-Fi 5 (802.11ac) with support for 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac in the 2.4 GHz and 5 GHz bands
  • Dual-chain wireless on both bands, with antenna gain of 3 dBi at 2.4 GHz and 5.5 dBi at 5 GHz, and a 360° beam width
  • Transmitter power of 26 dBm on 2.4 GHz and 26 dBm on 5 GHz; the final frequency range and power are limited by country regulations
  • 5 Gigabit Ethernet ports (10/100/1000 Mbps), 1 with passive PoE-out
  • Power input through a DC jack (12 - 28 V) or passive PoE-in (18-28 V), with a 24 V, 1.5 A adapter rating
  • Power consumption up to 30 W, or up to 12 W without connected additional devices
  • Dimensions of 251 × 129 × 39 mm (9.88 × 5.08 × 1.54 in), with CE, FCC and IC certificates

Specifications 44

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Generation
Wi-Fi 5 (802.11ac)
Wi-Fi Standard
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Wi-Fi Frequency Bands
2.4 GHz, 5 GHz
Max. Antenna Gain
5.5 dBi2.4 GHz: 3 dBi;
5 GHz: 5.5 dBi
Transmit Power
2.4 GHz: 26 dBm, 5 GHz: 26 dBm

Power & Protection

Power Input
DC jack (12 - 28 V) PoE-in (18-28 V)
Power Consumption
30 W

Ports & PoE

PoE Ports
1
Total Ports
5
Port Speed
Gigabit (10/100/1000 Mbps)
PoE Standard
Passive PoE

Physical

Operating Temperature
-40 … +70 °C (-40 … 158 °F)
Mounting
Vertical, horizontal or wall mount
Dimensions
251 × 129 × 39 mm (9.88 × 5.08 × 1.54 in)

Full specification

Manufacturer data, 30 parameters

Specifications

Product code
RBD53iG-5HacD2HnD
CPU
4 core IPQ-4019 716 MHz
Number of 1GbE ports
5
Number of 1GbE ports with PoE-out
1
Size of RAM
256 MB
Size of NAND
128 MB
Wireless
2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain
Wireless regulations
Specific frequency range and power will be limited by country regulations
Wireless Antenna Max. Gain
2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
Antenna Beam Width
360°
Operating System
RouterOS, License level 4
USB Port
1 USB port type A

Powering

PoE in
Passive PoE
PoE-out *
Passive PoE
Power Adapter Nominal Voltage
24 V
Power Adapter Nominal Current
1.5 A
Max out per port output (input < 30 V)
0.5 A
Max power consumption without attachments
12 W

Certification & Approvals

Certification
CE, FCC, IC

Wireless specifications

Rate (2.4 GHz) 1MBit/s
Tx (dBm) 25;
Rx (dBm) -100
Rate (2.4 GHz) 11MBit/s
Tx (dBm) 25;
Rx (dBm) -94
Rate (2.4 GHz) 6MBit/s
Tx (dBm) 26;
Rx (dBm) -96
Rate (2.4 GHz) 54MBit/s
Tx (dBm) 23;
Rx (dBm) -78
Rate (2.4 GHz) MCS0
Tx (dBm) 26;
Rx (dBm) -96
Rate (2.4 GHz) MCS7
Tx (dBm) 22;
Rx (dBm) -73
Rate (5 GHz) 6MBit/s
Tx (dBm) 26;
Rx (dBm) -96
Rate (5 GHz) 54MBit/s
Tx (dBm) 22;
Rx (dBm) -80
Rate (5 GHz) MCS0
Tx (dBm) 26;
Rx (dBm) -96
Rate (5 GHz) MCS7
Tx (dBm) 21;
Rx (dBm) -75
Rate (5 GHz) MCS9
Tx (dBm) 19;
Rx (dBm) -70
