Product code: #ALL-003443

10/100/1000M 1550/1310nm WDM BiDi 20Km SC

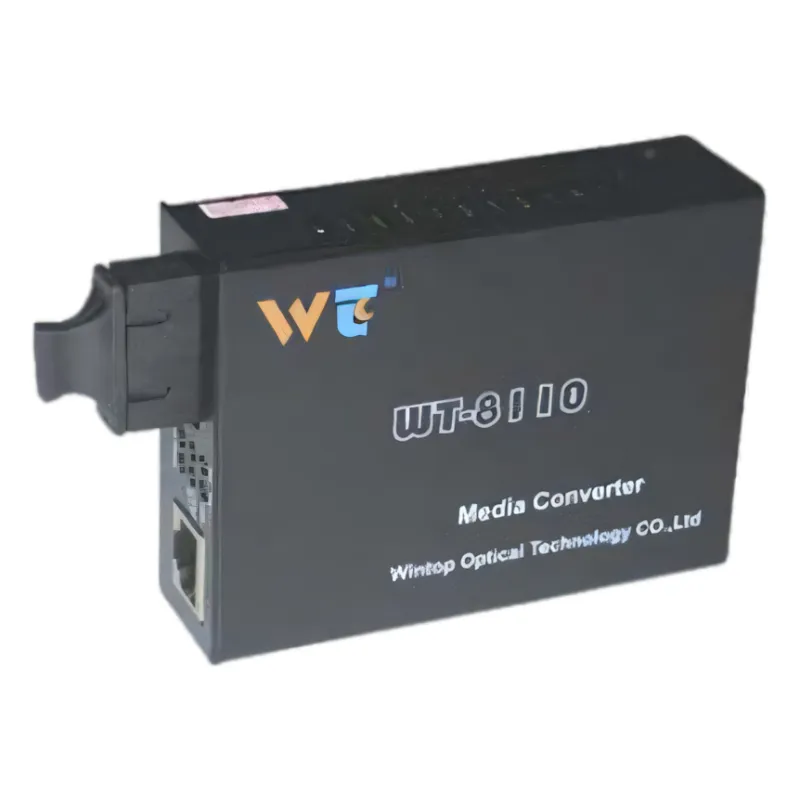

Wintop · WT-8110GSB-11-20B-AS

10/100/1000M 1550/1310nm WDM BiDi 20Km SC

  • Port SpeedGigabit (10/100/1000 Mbps)
  • Data Rate10/100/1000 Mbps
  • Fiber TypeSingle-mode
45.77 ₾

VAT included

  • In stock
45.77 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Wintop WT-8110GSB-11-20B-AS is a media converter that links a copper Gigabit Ethernet connection to a single-mode fiber link. It has 1 electrical port of type 10/100/1000Base-TX and 1 optical port of type 1000Base-FX, and it works at data rates of 10/100/1000 Mbps.

The optical side uses WDM BiDi technology, so the link runs over a single fiber strand, with 1550 nm for transmit and 1310 nm for receive. It connects through an SC/UPC connector and supports a maximum distance of 20 km.

Key features:

  • 1 × 10/100/1000Base-TX electrical port (RJ45) and 1 × 1000Base-FX optical port
  • Data rate of 10/100/1000 Mbps
  • WDM BiDi single-fiber link over single-mode fiber with an SC/UPC connector
  • Wavelengths of 1550 nm (TX) and 1310 nm (RX)
  • Maximum distance of 20 km
  • Transmit power of -8 … -3 dBm and receiver sensitivity of ≤ -24 dBm
  • Power consumption of 4 W and operating temperature of 0 … +60 °C (32 … 140 °F)

Specifications 14

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Consumption
4 W

Ports & PoE

RJ45 ports
11 × 10/100/1000Base-TX
Port Speed
Gigabit (10/100/1000 Mbps)
Optical Ports
1 × 1000Base-FX

Performance

Data Rate
10/100/1000 Mbps

Optical

Connector Type
SC/UPC
Fiber Type
Single-mode
Wavelength TX
1550 nm
Wavelength RX
1310 nm
Max Distance
20 km
Link Technology
WDM BiDi

Optical Power

TX Power
-8 … -3 dBm
RX Sensitivity
≤ -24 dBm

Physical

Operating Temperature
0 … +60 °C (32 … 140 °F)
